6BEAMQ
Share me

Immagine Principale
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ
  • 6BEAMQ

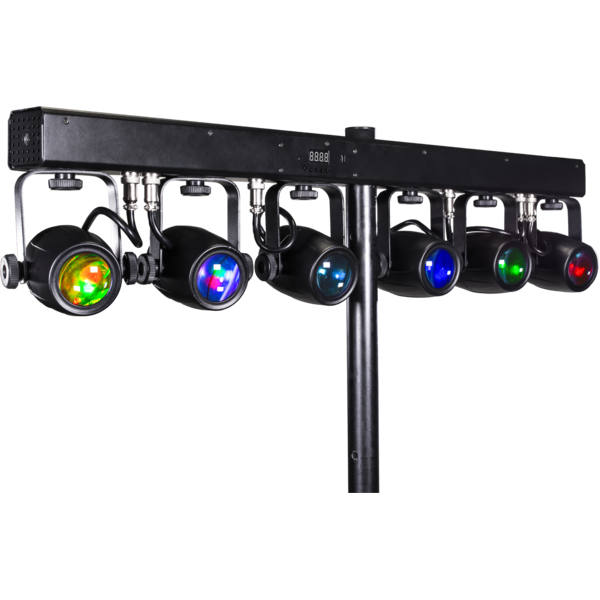

    • 6BEAMQ is a portable set made up of 6 independent colour changers complete with their own light bar and nylon travel bag. Each spot employs an RGBW / FC LED source to produce a razor-sharp multicoloured beam. The bar mechanics also include the necessary hardware for stacking and hanging.

    Features:
    Design concept: 6 LEDs spot projectors
    10 built-in programs with execution speed adjustment
    Ergonomic travel bag included
    Flicker-free operation

    LIGHT SOURCE
    • Source:
      6x8
      W
      RGBW LEDs
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      15
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 10 / 28
      channel
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      59,6
      W
    PHYSICAL
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    • Dimensions (WxHxD):
      947x275x143
      mm
    • Weight:
      6
      kg
    CODICE PRODOTTO
    Accessory Code
    Description
    6BEAMQ (optional)
    SMARTBOOK (optional)
    LUMIPAR7IP (optional)
    DATAMASTER (optional)
    PINSPOTD (optional)
    PIXBAR3E (optional)
    LUMI4COB (optional)
    SUNRISE2 (optional)
    SUNRISE4 (optional)
    SUNBAR2500MAX (optional)
    SUNBAR2000FC (optional)
    POLAR3000 (optional)
    HALUSTRIP (optional)
    PIXROLL12TRI (optional)
    WIFIBOX (optional)
    ARTNETNODE (optional)
    UVSTRIP18 (optional)
    LUMIPAR7QTOUR (optional)
    JETBEAM2 (optional)
    WDBOX (optional)
    LUMIPAR12IP (optional)
    SUNRISE2L (optional)
    LUMIPIX15IP (optional)
    ACCENT1Q (optional)
    UVPANEL18 (optional)
    SMARTTORCH (optional)
    HALUPIX (optional)
    CHROMAPIX (optional)
    BATSTRIP160 (optional)
    TRUSSPOD3T (optional)
    LUMIPIX6TRI (optional)
    TRUSSPOD3BAT (optional)
    SMARTDISK (optional)
    POLAR1000 (optional)
    POLAR500 (optional)
    PIXIEWASH (optional)
    PIXPAN16 (optional)
    BATPAR180 (optional)
    PIXIEZOOM (optional)
    PIXIEWASHXB (optional)
    RA2000PROFILE (optional)
    Z7SPOT (optional)
    Z8STRIP (optional)
    HALUROCK (optional)
    CHROMAROCK (optional)
    JETSPOT4Z (optional)
    PIXIEZOOMXB (optional)
    MINIVERSAPAR (optional)
    ECLFRESNELPTW (optional)
    PIXIESPOT (optional)
    DISPLAYCOBWW (optional)
    DISPLAYCOBDY (optional)
    MINIECLFR (optional)
    DISPLAYCOBFC (optional)
    JETBEAM1 (optional)
    ECLJR (optional)
    ECLFR2KPTW (optional)
    ECLFRJPTW (optional)
    ECLFRESNELTW (optional)
    ECLFRJP (optional)
    VERSAPAR (optional)
    ECLJRG2 (optional)
    ARCPOINT1 (optional)
    JETSPOT1 (optional)
    FLATPAR3H (optional)
    LION (optional)
    ECLFRESNELJ (optional)
    ECLFRESNELJTW (optional)
    FLATPAR6H (optional)
    FLATPAR3Q (optional)
    LUMIPAR7HPRO (optional)
    MOBIBLAST (optional)
    ECLFR2K (optional)
    ECLFR2KTW (optional)
    MINIECLFRFC (optional)
    QUADRO18UTRI (optional)
    SUNBLAST3500MAX (optional)
    SOLAR21 (optional)
    ARIA700PROFILE (optional)
    LUMIPIX12UQPRO (optional)
    STUDIOCOBPLUSUV (optional)
    LUMIPIX12QTOUR (optional)
    ARIA700SPOT (optional)
    ECLFRESNEL (optional)
    SUNBLAST3000FC (optional)
    LUMIPAR6UQ (optional)
    ARCPOD36 (optional)
    POLAR700 (optional)
    LUMIPIX12TRIIP (optional)
    FLATCOB40 (optional)
    FLATCOB80 (optional)
    LUMIPAR18VWPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12HPRO (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (optional)
    FLATCOB80UV (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK6UQ (optional)
    LUMIPACK12UQ (optional)
    ARCPOD21 (optional)
    ARCPAR18 (optional)
    LUMIPIX12UT (optional)
    LUMIPAR7UTRI (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMIPIX8H (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCPAR7 (optional)
    AQUA (optional)
    LUMIPIX12UQ (optional)
    VISUALGOB (optional)
    LUMI4UTRI (optional)
    ARCPOD8 (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    DISPLAYCOBTRWDFC (optional)
    STUDIOCOBPLUSDY (optional)
    ECLJZIP (optional)
    ARENACOB4FC (optional)
    STUDIOCOBPLUSTW (optional)
    LUMIPAR12UQ (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPIX16H (optional)
    STUDIOCOBPLUSFC (optional)
    ARENACOB4HALO (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBUV (optional)
    TABLEDW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBCW (optional)
    SOLAR (optional)
    SMARTBATTENQ (optional)
    STUDIOCOBDY (optional)
    ECLPARFC (optional)
    STUDIOCOBTU (optional)
    RA3000PROFILE (optional)
    ECL (optional)
    LUMIPIX12QIP (optional)
    ECLPAR (optional)
    TABLEDC (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    SOLAR48Q (optional)
    ECLHD (optional)
    ECLHD2 (optional)
    SMARTBATHEX (optional)
    SMARTBAT (optional)
    SMARTBATIP (optional)
    ECLPANELTWC (optional)
    ECLFC (optional)
    ECLHDTWC (optional)
    SOLAR27Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    UPBOX1UUPBOX1U
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT
    6BEAMQ (optional)
    LUMIPIX9UHEPRO (optional)
    SMARTBAT (include)
    SMARTBATHEX (include)
    SMARTBATIP (include)
    SMARTBATTENQ (include)
    LUMIPIX9UHE (optional)
    FLATPAR3Q (include)
    POLAR500 (optional)
    WASH4PACK (include)
    TRUSSPOD3BAT (include)
    TRUSSPOD3T (include)
    FLATPAR3H (include)
    BATWASHIR (optional)
    BATPAR6UTRI (include)
    BATPAR12UTRI (include)
    SMARTBATPLUS (include)
    PIN6PACK (include)
    BATPINIR (optional)
    BATGOBOIR (include)
    FLATPAR6H (include)
    UVSTRIP18 (optional)
    SMARTTUBE32 (optional)
    MOBIBLAST (optional)
    FLATCOB40 (optional)
    LUMIPAR12UQ (optional)
    LUMIPACK12UQ (include)
    LUMIPAR12UAW (optional)
    LUMIPACK6UQ (include)
    LUMIPIX12UT (optional)
    LUMIPAR12UH (optional)
    QUADRO18UTRI (optional)
    LUMIPIX12UQPRO (optional)
    LUMI4UTRI (optional)
    LUMIPAR6UQ (optional)
    FLATCOB80UV (optional)
    FLATCOB80 (optional)
    AQUA (optional)
    POLAR700 (optional)
    VISUALGOB (optional)
    LUMIPIX12UQ (optional)
    LUMIPACK7UTRI (include)
    LUMIPAR7UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (include)
    LUMIPAR12UQPRO (optional)
    LUMIPARIRCHLUMIPARIRCH
    RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    6beamq_CAD_2D.dwgDownload
    6beamq_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    6BEAMQ Firmware rev. 1.1
    CHAMSYS
    prolights_6beamq_4ch.hedDownload
    prolights_6beamq_10ch.hedDownload
    prolights_6beamq_28ch.hedDownload
    JANDS Vista
    6 beam q - 28 channel mode.fix2Download

    Photometrics

    Software Upgrades

    Tech Docs


    Italian/English manual    		Download
