ECLEXPOFL300IPFC
PROLIGHTS

EclExpo Flood300IPFC new

IP65 300W Full Colour RGB+WarmWhite asymmetric LED floodlight

The EclExpo Flood300IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood300IP is available in two source variants:

- The EclExpo Flood300IPFC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;

- The EclExpo Flood300IPVW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

SPEKTRA

Main features:

  • IP65 water and dust resistant
  • 300W calibrated RGB+WarmWhite source, with high CRI and TM30
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, on-board W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
See variants

PHOTO GALLERY

EclExpo Flood300IPFC
EclExpo Flood300IPFC
EclExpo Flood300IPFC
EclExpo Flood300IPFC
EclExpo Flood300IPFC

Technical specifications

LIGHT SOURCE
  • Source: 300W RGB + Warm White LED
  • Luminous flux: 13'865 @3.200 K
  • Luminous flux: 13'607 @5.600 K
  • Lux: 202lx @5 m 3.200K
  • Lux: 195lx @5 m 5.600 K
  • CRI: 93,2@5'600K
  • R9: 97,3 @5'600K
  • TLCI: 92 @5'600K
  • TM30 Rf: 90,6 @5'600K
  • TM30 Rg: 104,9 @5'600K
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
  • Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast magnesium body
  • Body colour: RAL 9004
  • Other: see available accessories
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 2 rotatory knobs
  • DMX channels: 1/2/5/9/10/12/18channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 310W
  • Standby power: 3,2 W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 401x256x225mm / 15.79''x10.08''x8.86''
  • Weight: 5,9kg / 13.01lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
ECLEXPOFL300IPFCB
ECLEXPOFL300IPFCB (NEW)

Accessories & Related Products

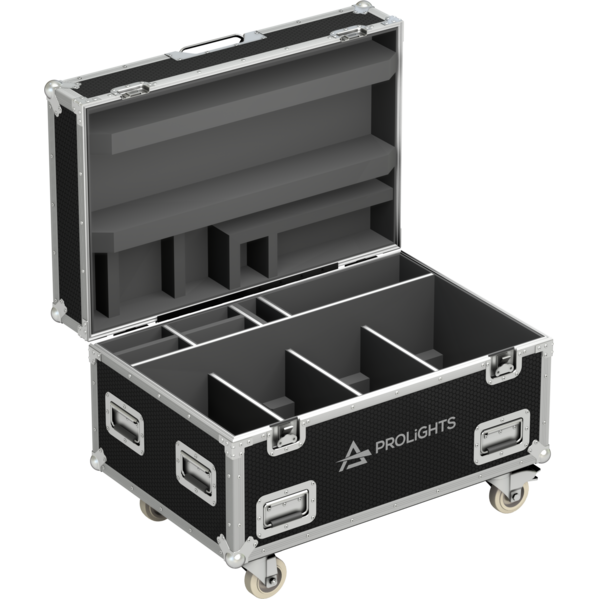

FCLEXPOFL300IP
FCLEXPOFL300IP
(Optional)
Flight case for 4 pcs of ECLEXPOFL300IP series
<b>ECLEXPOFL300VW</b> Barndoor
ECLEXPOFL300VW Barndoor
(Optional)
Barndoor for ECLEXPOFL300 series, black finishing
ECLEXPOFL300VWFFB
ECLEXPOFL300VWFFB
(Optional)
Filter frame for ECLEXPOFL300VW, black finishing
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclexpofl300ipfc_A4_DATASHEET_(EN).pdf(10/10/2025)443KB
Tender SpecificationEclexpofl300ipfc_TENDER_SPECIFICATION.pdf(11/11/2025)217KB

User manual

File name File size Download
User manualEclexpofl300ipfc_USER_MANUAL_EN.pdf(29/10/2025)4MB
User manualEclexpofl300ipfc_General_Safety_Information.pdf(02/12/2025)3MB

DMX chart & personalities

File name File size Download

ECLEXPOFL300IPFC Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclexpofl300ipfc_3D.skp(19/02/2025)659KB
2DEclexpofl300ipfc_CAD_2D.dwg(11/09/2025)6MB
3DEclexpofl300ipfc_CAD_3D.dwg(19/02/2025)550KB
2D cad symbolsEclexpofl300ipfc_ECLEXPOFL300IPFC_2DSYMBOLS.dwg(30/06/2025)17KB
Technical drawingEclexpofl300ipfc_TECHNICAL_DRAWING.pdf(11/09/2025)378KB
VectorWorksECLEXPOFL300IPFC_SYMBOLS.vwx(17/06/2025)677KB

Tech docs

File name File size Download
Noise ReportEclexpofl300ipfc_NOISE_REPORT.pdf(14/11/2025)624KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 27/11/2025 First stable release
