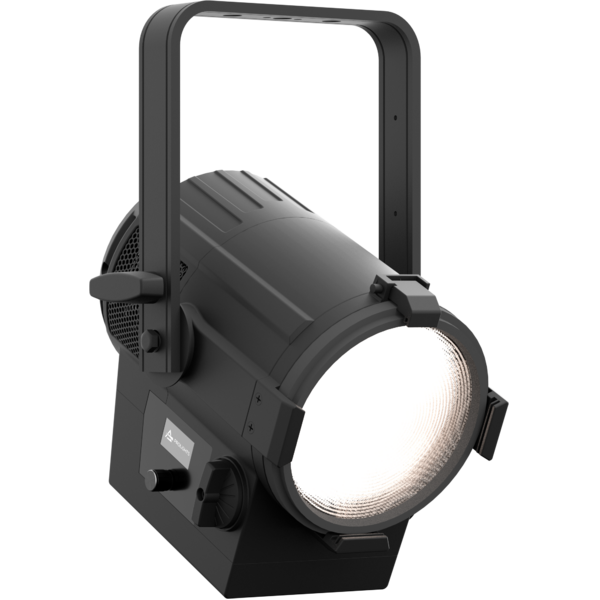

EclFresnel Jr
ORDER CODE: ECLFRESNELJ
Share me

Immagine Principale
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • EclFresnel Jr
    Code CCT CRI R9 Lumen Finishing Avail.
    ECLFRESNELJTU 3.000 K 97 95 4'631 lm Black
    ECLFRESNELJTUWH 3.000 K 97 95 4'631 lm White
    ECLFRESNELJDY 5.600 K 90 53 5'911lm Black
    ECLFRESNELJDYWH 5.600 K 90 53 5'911lm White

    EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.

    Features:
    TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
    Fresnel lens options with 16° to 57° zoom range
    Silent operation for studio and stage use
    Battery ready, compatible with industry standard external batteries (optional)

    LIGHT SOURCE
    • Source:
      70
      W
      high-power white LED
    • CCT:
      (TU) 3.000 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) (16°) 2'859 lm; (57°) 4'631
      lm
      @full
    • Luminous flux:
      (DY) (16°) 3'656 lm ; (57°) 5'911 lm @ full
    • Lux:
      TU (16°) 1'293 lx - TU (57°) 205
      lx
      @5 m full
    • Lux:
      DY (16°) 1'624 lx - (57°) 254
      lx
      @5 m full
    • CRI:
      (TU) >97; (DY) >90
    • R9:
      (TU) >95; (DY) >53
    • TLCI:
      (TU) >97; (DY) >92
    • TM30 Rf:
      (TU) >94; (DY) >88
    • TM30 Rg:
      (TU) <103; (DY) >97
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      16° - 57
      °
      half peak angle
    • Lens diameter:
      6'' - 150
      mm
    • Lens type:
      fresnel zoom lens
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjust of dimmer throught menu and knob
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Pan angle:
      (pole operated version) 360
      °
      with manual regulation
    • Tilt angle:
      (pole operated version) 340
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 - 1 / 2 - 2 / 3 / 5
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      90
      W
    • Output (at 230V):
      23
      units on a single power line
    • Power factor:
      >0,95
    BATTERY
    • Battery:
      29,6
      V
      4400 mAh external battery (optional ECLFRSJBP4)
    • Re-charge connection:
      connection for external battery throught
      XLR 4p
    • Other:
      Voltage range: 22,4V-33,6V
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      235x360x260
      mm
    • Dimensions with PO system (WxHxD):
      298x496x260
      mm
    • Weight:
      6
      kg
    • Weight with PO system:
      7,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x ECLFRESNELJ
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • 1 x ECLFRSJBD
    • 1 x ECLFRSJTPG
    • User Manual
