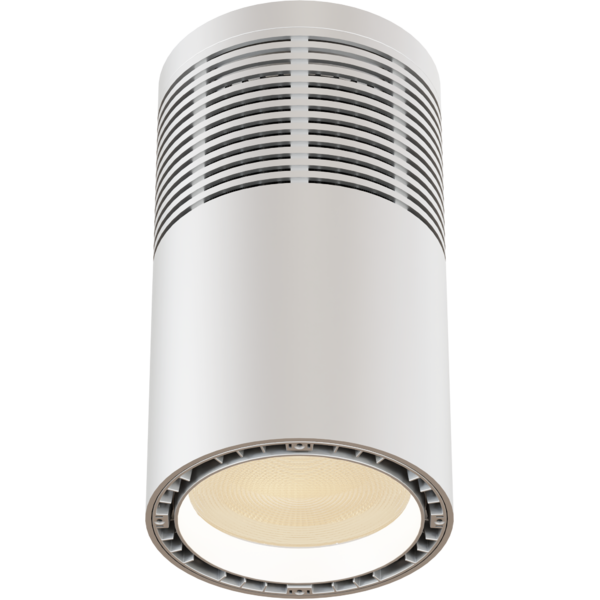

EclPendant Jr

100W White LED source, innovative pendant light

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant Jr has a 100-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant Jr was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.
NOTE: the hanging bracket does not come with the product

5 YEARS WARRANTY

Main features:

  • 100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100W COB LED
  • CCT: see available variants
  • Luminous flux: (TU) 6'948 lm; (NW) 7'401 lm; (DY) 7'706 @Full
  • Lux: (TU) 1'372 lx: (NW) 1'524 lx; (DY) 1'600lx @5 m full
  • CRI: (TU) > 96 - (NW) > 96 - (DY) > 94
  • R9: (TU) > 98 - (NW) > 92 - (DY) > 97
  • TLCI: (TU) > 95 - (NW) > 97 - (DY) > 97
  • TM30 Rf: (TU) > 94 - (NW) > 93 - (DY) > 91
  • TM30 Rg: (TU) < 105 - (NW) < 103 - (DY) < 103
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 122mm / 4.8''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: see available versions
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type6, DMX512, RDM, CRMX
  • DMX channels: UNO / DUO / Standard / Extendedchannel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 105W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: Heatsink with heat pipes, natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 170x321x170mm / 6.69''x12.64''x6.69''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CCT
Finishing
ECLPENDANTJRTUBK
ECLPENDANTJRTUBK
3.000K
Black
ECLPENDANTJRNWBK
ECLPENDANTJRNWBK
4.000K
black
ECLPENDANTJRDYBK
ECLPENDANTJRDYBK
5.600K
Black
ECLPENDANTJRTUWH
ECLPENDANTJRTUWH
3.000K
White
ECLPENDANTJRNWWH
ECLPENDANTJRNWWH
4.000K
white
ECLPENDANTJRDYWH
ECLPENDANTJRDYWH
5.600K
White

Accessories & Related Products

ECLPENDJRCGH
ECLPENDJRCGH
(Optional)

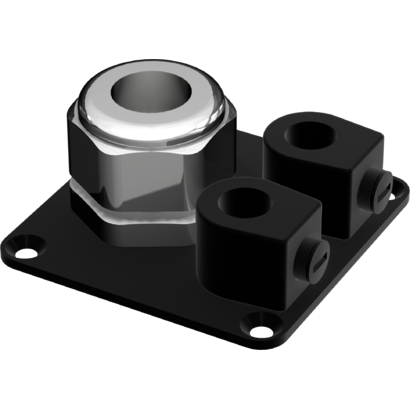

Optional cable glandes holder for ECLPENDANTJR
ECLPENDJRLENS60
ECLPENDJRLENS60
(Optional)
ECLPENDANTJR series 60° lens
ECLPENDJRLENS40
ECLPENDJRLENS40
(Optional)
ECLPENDANTJR series 40° lens
ECLPENDJRLENS20
ECLPENDJRLENS20
(Included)
ECLPENDANTJR series 20° lens
ECLPENDJRHGBRKBK
ECLPENDJRHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTJR series, black
ECLPENDJRHGBRKWH
ECLPENDJRHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTJR series, white
ECLPENDJRRECKITBK
ECLPENDJRRECKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, black
ECLPENDJRRECKITWH
ECLPENDJRRECKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, white
ECLPENDJRHSNOOTBK
ECLPENDJRHSNOOTBK
(Optional)
Half snoot for ECLPENDANTJR series, black
ECLPENDJRHSNOOTWH
ECLPENDJRHSNOOTWH
(Optional)
Half snoot for ECLPENDANTJR series, white
ECLPENDJRFSNOOTBK
ECLPENDJRFSNOOTBK
(Optional)
Full snoot for ECLPENDANTJR series, black
ECLPENDJRFSNOOTWH
ECLPENDJRFSNOOTWH
(Optional)
Full snoot for ECLPENDANTJR series, white
ECLPENDJRHLOUVBK
ECLPENDJRHLOUVBK
(Optional)
Honeycomb louvre for ECLPENDANTJR series, black
ECLPENDJRHLOUVWH
ECLPENDJRHLOUVWH
(Optional)
Honeycomb louvre for ECLPENDANTJR series, white
ECLPENDJRCLOUVBK
ECLPENDJRCLOUVBK
(Optional)
Concentric louvre for ECLPENDANTJR series, black
ECLPENDJRCLOUVWH
ECLPENDJRCLOUVWH
(Optional)
Concentric louvre for ECLPENDANTJR series, white
ECLPENDJRBDBK
ECLPENDJRBDBK
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, black
ECLPENDJRBDWH
ECLPENDJRBDWH
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), white
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDJCEILKITBK
ECLPENDJCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, black
ECLPENDJCEILKITWH
ECLPENDJCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantjr_LETTER_DATASHEET_(EN).pdf(25/08/2025)540KB
Letter datasheetEclpendantjr_A4_DATASHEET_(ITA).pdf(25/08/2025)539KB
Letter datasheetEclpendantjr_A4_DATASHEET_(EN).pdf(25/08/2025)541KB
Tender SpecificationEclpendantjr_TENDER_SPECIFICATION.pdf(03/01/2023)3MB

User manual

File name File size Download
User manualEclpendantjr_USER_MANUAL_EN.pdf(19/01/2024)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualEclpendantjr_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantjr_DMX_CHARTS.pdf(12/01/2023)90KB

ECLPENDANTJR Firmware rev. 1.1.02.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 02/05/2023 Fixed bug:
  • Strobe Channel @ 0 DMX Value not corresponding to Open function.
Rev. 1.0
Rev. 2.0

Info Request

News

PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
December 05, 2025
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
PROLIGHTS launches HaluStrip Duo , a one-metre dual-layer LED strip that fuses high-power warm-white beams with a high-brightness RGB+WW pixel surface in a modular frame. Designed for stage and broadcast, it delivers tight long-throw beams alongside video
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
December 02, 2025
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
Ocean Court , the glass-roofed atrium at the heart of the National Maritime Museum in Greenwich, London, has been equipped with a new event lighting system featuring PROLIGHTS fixtures. The installation, delivered by A.C. Special Projects (ACSP ) in partnership
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
December 01, 2025
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
Music & Lights is pleased to announce the signing of an exclusive distribution agreement for the Italian market for the Rental solutions of Unilumin , a global leader in professional LED display technology. Effective immediately, Music & Lights will

PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
November 26, 2025
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
  PROLIGHTS launches the Astra Profile1200IP , a large-format IP65 LED moving profile engineered to deliver high brightness and robust performance for large outdoor stages and arenas. At its core is a 1,400 W white LED engine driven at 1,200 W (7,000
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
November 24, 2025
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
The When We Were Young festival took place in Las Vegas , bringing some of the most iconic names in alternative and pop-punk music back to the stage. Among this year's highlights on the 7-Eleven Stage was the performance by Panic! At The Disco , whose
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
November 13, 2025
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
The new RTP news studios in Lisbon (Marechal Gomes da Costa) and Porto (Centro de Produção do Norte) have been equipped with an advanced PROLIGHTS LED lighting system, supplied and installed by SLS - Sound and Light Systems , in collaboration with Pantalha
PROLIGHTS illuminates Acea's space at the Rome Film Fest
November 04, 2025
PROLIGHTS illuminates Acea's space at the Rome Film Fest
The 19th edition of the Rome Film Fest  has once again illuminated the Eternal City, and PROLIGHTS played a key role in shaping the luminous identity of Acea 's presence as Main Partner of the event. At the Auditorium Parco della Musica, ARETI provided
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
October 28, 2025
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
At the enchanting Descanso Gardens in Los Angeles , California, a family-friendly, Halloween-themed immersive experience called Carved was brought to life. The event was developed using the existing infrastructure of Enchanted Forest of Light, the gardens'
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
October 20, 2025
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
PROLIGHTS brings its celebrated EclExpo Flood platform outdoors with two sealed IP65 base models: EclExpo Flood150IP and EclExpo Flood300IP, each available in Full Color and Variable White variants. Designed to replace classic CDM/HMI floods for trade
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
October 14, 2025
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
Cockatoo Island in Sydney was transformed by renowned global experience agency Rizer into a gothic playground for the Season Two launch of Netflix's Wednesday , where eerie installations and atmospheric lighting brought the show's world to life against
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
October 08, 2025
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
PROLIGHTS unveils ArcPod 300FCLT , a high-performance, long-throw LED wash built for large-scale architectural lighting on skyscrapers, stadiums, city towers and bridges. With native 2.5° ultra-narrow optics, the 260 W fan-free fixture delivers up to
Lumina Electronic Festival powered by PROLIGHTS
October 03, 2025
Lumina Electronic Festival powered by PROLIGHTS
The historic Albanian city of Korçë , known for its vibrant cultural scene, recently hosted the Lumina Electronic Festival , where music and technology fused into an immersive environment powered by PROLIGHTS . Lighting design by Florind Tenolli , operated

Subscribe to our Newsletter

Loading...
