HQ30L2
PROTRUSS

HQ30L2

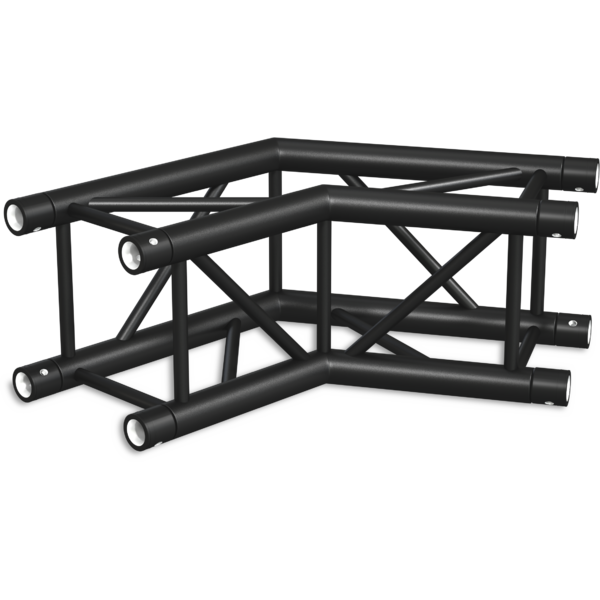

2-way L corner for HQ30truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
  • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
  • Plate: conical Quicklock connectors
  • kit Fast Connection FCQ5 included

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
HQ30L2045
HQ30L2045
L2
2
45°
-
-
50
29
50
HQ30L2045B
HQ30L2045B
L2
2
45°
-
-
50
29
50
HQ30L2060
HQ30L2060
L2
2
60°
-
-
50
29
50
HQ30L2060B
HQ30L2060B
L2
2
60°
-
-
50
29
50
HQ30L2090
HQ30L2090
L2
2
90°
-
-
50
29
50
HQ30L2090B
HQ30L2090B
L2
-
90°
-
-
50
29
50
HQ30L2120
HQ30L2120
L2
2
120°
-
-
50
29
50
HQ30L2120B
HQ30L2120B
L2
2
120°
-
-
50
29
50
HQ30L2135
HQ30L2135
L2
2
135°
-
-
50
29
50
HQ30L2135B
HQ30L2135B
L2
2
135°
-
-
50
29
50

Accessories & Related Products

FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DHQ30L2_2D.zip2MB
3DHQ30L2_3D.zip7MB
Technical drawingHQ30L2_TECHNICAL DRAWINGS.zip295KB
