HQ40
PROTRUSS

HQ40

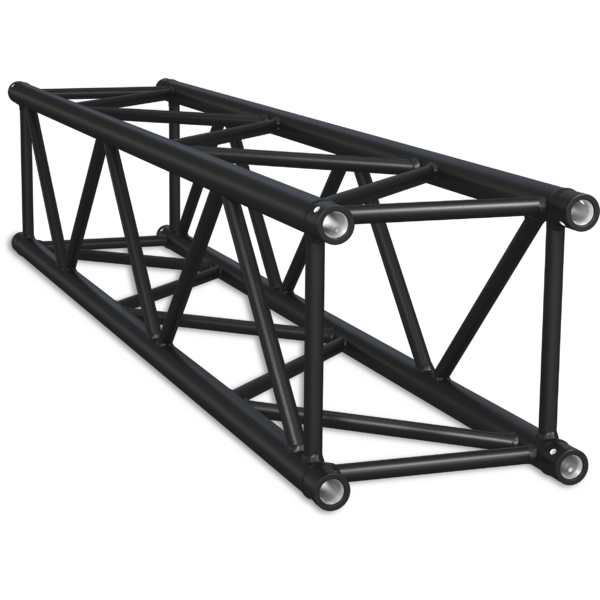

Heavy square section aluminium truss with 40 cm sides.

Main features:

  • Lengthwise: extruded tubes, Ø 50x3 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
HQ40050
HQ40050
50x3
25x2
500
400
400
6,6
0,080
AL
HQ40050B
HQ40050B
50x3
25x2
500
400
400
6,6
0,080
BK
HQ40100
HQ40100
50x3
25x2
1000
400
400
10,6
0,160
AL
HQ40100B
HQ40100B
50x3
25x2
1000
400
400
10,6
0,160
BK
HQ40150
HQ40150
50x3
25x2
1500
400
400
13
0,240
AL
HQ40150B
HQ40150B
50x3
25x2
1500
400
400
13
0,240
BK
HQ40200
HQ40200
50x3
25x2
2000
400
400
16,4
0,320
AL
HQ40200B
HQ40200B
50x3
25x2
2000
400
400
16,4
0,320
BK
HQ40250
HQ40250
50x3
25x2
2500
400
400
19,3
0,400
AL
HQ40250B
HQ40250B
50x3
25x2
2500
400
400
19,3
0,400
BK
HQ40300
HQ40300
50x3
25x2
3000
400
400
22,6
0,480
AL
HQ40300B
HQ40300B
50x3
25x2
3000
400
400
22,6
0,480
BK
HQ40350
HQ40350
50x3
25x2
3500
400
400
26,3
0,560
AL
HQ40350B
HQ40350B
50x3
25x2
3500
400
400
26,3
0,560
BK
HQ40400
HQ40400
50x3
25x2
4000
400
400
29,4
0,640
AL
HQ40400B
HQ40400B
50x3
25x2
4000
400
400
29,4
0,640
BK

Accessories & Related Products

FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
HQ40K8
HQ40K8
(Optional)
6 way DADO module, HQ40 series compatible, 2x FCQ5K8 included
HQ40L2045
HQ40L2045
(Optional)
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 45°
HQ40L2060
HQ40L2060
(Optional)
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 60°
HQ40L2
HQ40L2
(Optional)
HQ40L2120
HQ40L2120
(Optional)
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 120°
HQ40L2135
HQ40L2135
(Optional)
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 135°
HQ40L3
HQ40L3
(Optional)
3-way L corner for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
HQ40T3
HQ40T3
(Optional)
3-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
HQ40T4
HQ40T4
(Optional)
4-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
HQ40T5
HQ40T5
(Optional)
5-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
HQ40X4
HQ40X4
(Optional)
4-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
HQ40X6
HQ40X6
(Optional)
6-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
SQ40FP
SQ40FP
(Optional)
Aluminium ground base for square section trusses, SQ-HQ40,

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetHq40_A4_DATASHEET_(EN).pdf659KB
