IKOS8A
ORDER CODE: IKOS8A
Share me

Immagine Principale
  • IKOS8A
  • IKOS8A
  • IKOS8A
  • IKOS8A

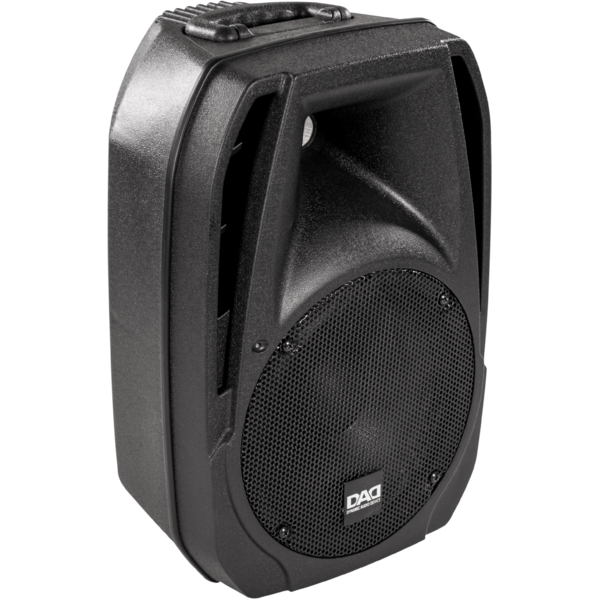

    • Active loudspeaker, 2-way 120 W, 120dB SPL

    Features:
    Low frequency: 8'' woofer/1.5''v.c.
    High frequency: 1'' driver/1.4''v.c.
    Frequency response: 80-20000 Hz (±3dB)
    Cabinet designed for stage-monitor applications
    Polypropylene box equipped with a handle in the upper side
    Reproduction of voice and music for live and recorded performances
    For portable PA systems, mobile DJ sets and voice/multimedia applications

    LOUDSPEAKER
    • System type:
      active
    COMPONENTS
    • Low frequency:
      8
      ''
      woofer/1.5''v.c.
    • High frequency:
      1
      ''
      driver/1.4''v.c.
    FEATURES
    • Built-in amp:
      120
      W
      /4Ohm
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      114/120
      dB
      @1m (free field)
    • Frequency response:
      80-20000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x45
      °
    • Cross over frequency:
      3300
      Hz
    ELECTRONICS SPECIFICATIONS
    • Amplifier:
      AB class
    • Power:
      120
      W
      /4Ohm
    • Input sensitivity:
      4 dBu (1,228Vrms) adjustable
    • Protection:
      limiter temp.
    • User controls:
      mic, line, master, eq LF-HF
    • Operating voltage/frequency:
      230 V - 50 Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR/jack bal. pin RCA unbal
    • Power connection:
      VDE
    CABINET CONSTRUCTION
    • Cabinet material:
      4
      mm
      polypropilene
    • Sospension system:
      35 mm mounting pole
    • Angle:
      45
      °
      monitor applications
    • Handles:
      1 top
    PHYSICAL
    • Dimensions (WxHxD):
      260x395x210
      mm
    • Weight:
      7.1
      kg
    ITEMS REF.
    Accessory Code
    Description
    IKOS8A (optional)
    IKOS8P (optional)
    {CODEs}BAGIKOS8
    Fabric protection for IKOS8/IKOS8A
    IKOS8A (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    {CODEs}AS255
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    IKOS8A (optional)
    LIVEPACK1500D (optional)
    MS118SW (optional)
    MS18SW (optional)
    LIVE18SA (optional)
    LIVE18S (optional)
    LIVE15S (optional)
    LIVE12SA (optional)
    LIVE15SA (optional)
    IKOS12P (optional)
    IKOS10P (optional)
    IKOS8P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS10A (optional)
    IKOS15P (optional)
    {CODEs}AS210
    Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
    IKOS8A (optional)
    IKOS10A (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    IKOS8P (optional)
    IKOS10P (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    {CODEs}SP20
    Adjustable speaker pole, 35mm, H.90-140cm, 40kg max
