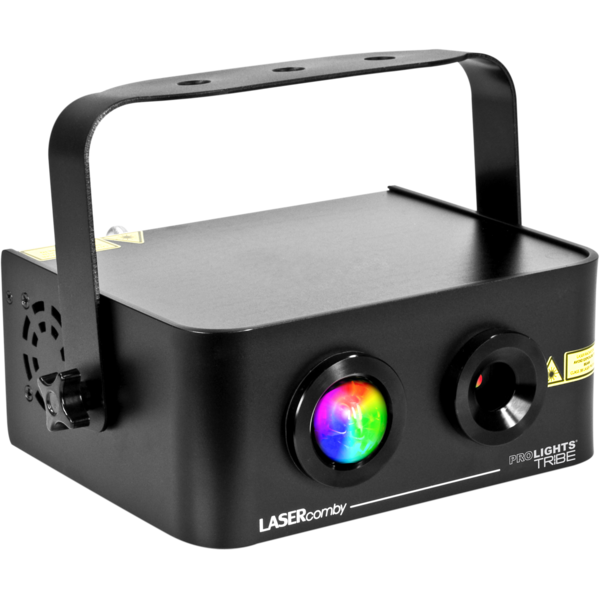

LASERCOMBY
ORDER CODE: LASERCOMBY
Share me

Immagine Principale
  • LASERCOMBY
  • LASERCOMBY
  • Combo laser effect with Laser + LED source for multi-beam laser projection, motion effects and lounge deco. The tri-colour LED source combined with green and red laser diode offers a wide effect generation that can be controlled by DMX or from the control panel. Its concept and versatility make LASERCOMBY suitable for application in clubs, disco and mobile DJ sets.

    Features:
    Laser source: 40 mW 532 nm green diode + 100 mW 650 nm red diode
    LED source: 9 W RGB LED diode
    Strobe, dimmer, rotation
    Safety: compliant with EN60825 - 1:1994 standards, manual key-switch and input for safety remote-interlock

    LIGHT SOURCE
    • Light source:
      laser diode 40 mW 532 nm green - 100 mW 650 nm red
    • Source:
      9
      W
      RGB LED
    • Laser radiation class:
      3B
    OPTICS
    • Beam angle:
      160
      °
    COLOUR SYSTEM
    • Colour mixing:
      2 colours (green, red)
    DYNAMIC EFFECTS
    • Static mode:
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX
    • DMX channels:
      8
      channel
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRICAL
    • Mains power supply:
    • Max power consumption:
      15
      W
    PHYSICAL
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      XLR 3p IN/OUT
    • Power connection:
      IEC 10 A IN
    • Dimensions (WxHxD):
      233x200x86
      mm
    • Weight:
      1,6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x LASERCOMBY
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x key for switch on/off
    • 1 x KRYPTONIRC
    • User Manual
