LF5H
ORDER CODE: LF5H
Share me

Immagine Principale
  • LF5H
  • LF5H
  • LF5H
  • LF5H
  • LF5H
    • Code Dimensions (mm) Finish Weight (kg) SWL (Safe working load) Avail.
    LF5H1075AL 1000X750 Aluminium 3,45 200
    LF5H1075BK 1000X750 Black 3,45 200
    LF5H4175AL 415x750 Aluminium 2,22 200
    LF5H4175BK 415x750 Black 2,22 200

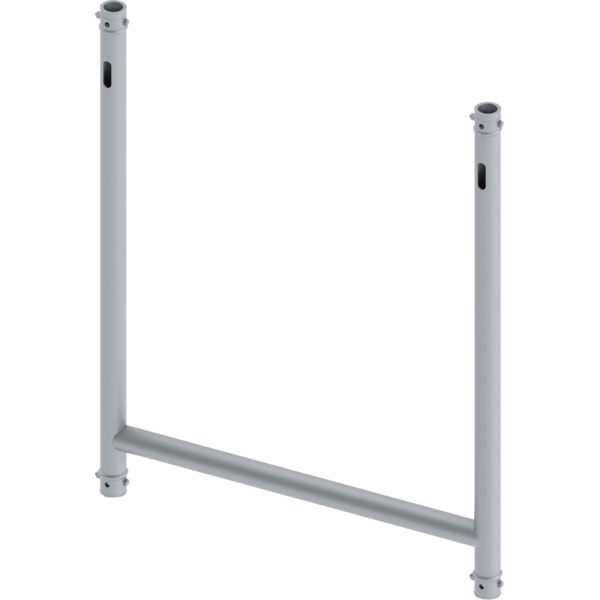

    4-way H joint for LITEFRAME series

    Features:
    Extruded tubes: Ø 48.3 mm
    Plate: conical quick-lock connectors
    4 pin with self-locking nuts included
    Material: aluminium 6082-T6
    Available finish: aluminium, black
    FCPLN safety pins included (x4)

    Accessory Code
    Description
    FCF5FCF5
    optional
    Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40
    FCS5FCS5
    optional
    Spigot for POWERTRUSS series fast connection kit
    C6028AC6028A
    optional
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black&White& White
    C6028BC6028B
    optional
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black&White& White
    FCPLNFCPLN
    include
    Conical pin fast connection kit with locking nut for LF5 series
