LF5P
ORDER CODE: LF5P
Share me

Immagine Principale
  • LF5P
  • LF5P
  • LF5P
  • LF5P
    • Code Dimensions (mm) Finish Weight (kg) Avail.
    LF5P025AL 250 Aluminium 0,46
    LF5P025BK 250 Black 0,46
    LF5P050AL 500 Aluminium 0,75
    LF5P050BK 500 Black 0,75
    LF5P100AL 1000 Aluminium 1,33
    LF5P100BK 1000 Black 1,33
    LF5P200AL 2000 Aluminium 2,48
    LF5P200BK 2000 Black 2,48

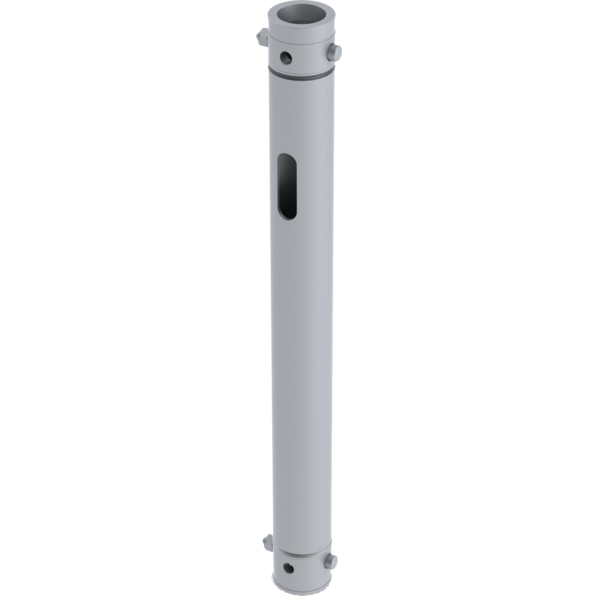

    2-way aluminium extruded tube for LITEFRAME series

    Features:
    Extruded tubes: Ø 48.3 mm
    Plate: conical quick-lock connectors
    2 pin with self-locking nuts included
    Material: aluminium 6082-T6
    SWL (Safe working load): 100 kg
    Available finish: aluminium, black
    FCPLN safety pins included (x2)

    ITEMS REF.
    Accessory Code
    Description
    LF5P (include)
    LF5X (include)
    LF5H (include)
    LF5T (include)
    {CODEs}FCPLN
    Conical pin fast connection kit with locking nut for LF5 series
    LF5P (optional)
    SU30 (include)
    SU30C (include)
    SU30L2 (include)
    SU30T3 (include)
    LF5T (optional)
    LF5X (optional)
    {CODEs}FCU5
    Quick connection, 1 spigot, 2 pins, 2 safety spring, SU30
    LF5P (optional)
    LF5H (optional)
    LF5T (optional)
    LF5X (optional)
    {CODEs}FCS5
    Spigot for POWERTRUSS series fast connection kit
    LF5P (optional)
    LF5H (optional)
    LF5T (optional)
    LF5X (optional)
    {CODEs}C6028A
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
    LF5P (optional)
    LF5H (optional)
    LF5T (optional)
    LF5X (optional)
    {CODEs}C6028B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
