| Code | Dimensions (mm) | Finish | Weight (kg) | Avail. | |||||||||
|
LF5P025AL | 250 | Aluminium | 0,46 | |||||||||
|
LF5P025BK | 250 | Black | 0,46 | |||||||||
|
LF5P050AL | 500 | Aluminium | 0,75 | |||||||||
|
LF5P050BK | 500 | Black | 0,75 | |||||||||
|
LF5P100AL | 1000 | Aluminium | 1,33 | |||||||||
|
LF5P100BK | 1000 | Black | 1,33 | |||||||||
|
LF5P200AL | 2000 | Aluminium | 2,48 | |||||||||
|
LF5P200BK | 2000 | Black | 2,48 |

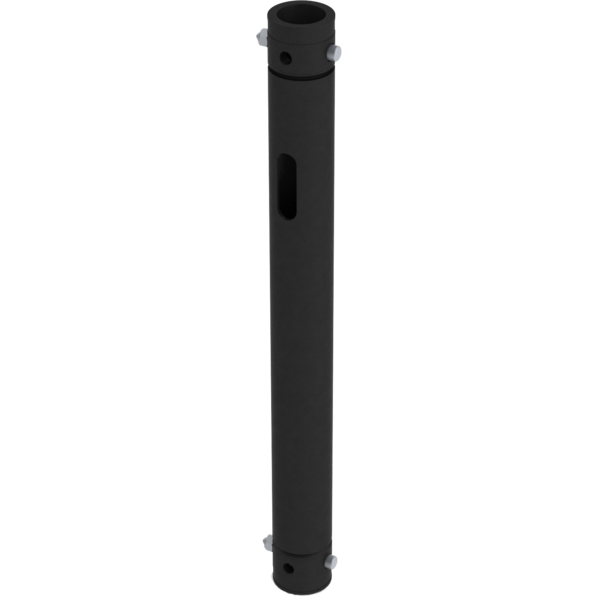

2-way aluminium extruded tube for LITEFRAME series
Features:Extruded tubes: Ø 48.3 mm
Plate: conical quick-lock connectors
2 pin with self-locking nuts included
Material: aluminium 6082-T6
SWL (Safe working load): 100 kg
Available finish: aluminium, black
FCPLN safety pins included (x2)
Accessory Code
Description
FCPLN
FCU5
FCS5
C6028Aoptional
Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black&White& White
C6028Boptional
Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black&White& White
