LF5T
ORDER CODE: LF5T
Share me

Immagine Principale
  • LF5T
  • LF5T
  • LF5T
  • LF5T
  • LF5T
  • LF5T
    • Code Dimensions (mm) Finish Weight (kg) Avail.
    LF5T2145AL 220x460 Aluminium 0,88
    LF5T2145BK 220x460 Black 0,88
    LF5T4645AL 470x460 Aluminium 1,17
    LF5T4645BK 470x460 Black 1,17

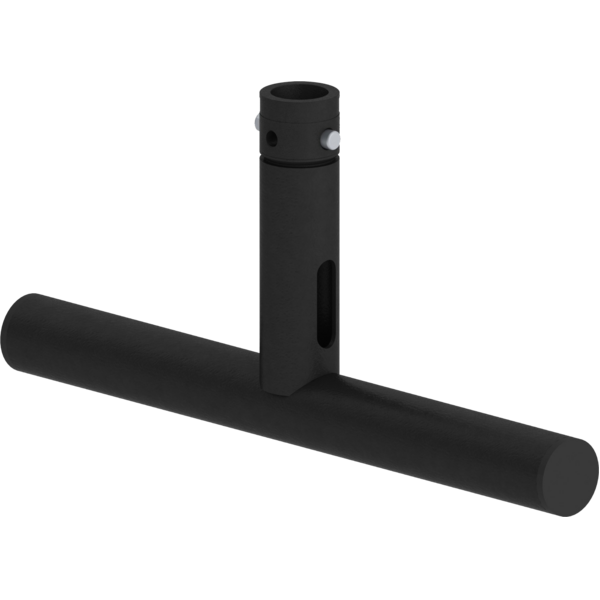

    1-way T joint for LITEFRAME series.

    Features:
    Extruded tubes: Ø 50 mm.
    Plate: conical quick-lock connectors.
    2 pin with self-locking nuts included.
    Material: aluminium 6082-T6.
    SWL (Safe working load): 100 kg.
    Available finish: aluminium, black.
    FCPLN safety pin included.

    ITEMS REF.
    Accessory Code
    Description
    LF5T (optional)
    SU30 (include)
    SU30C (include)
    SU30L2 (include)
    SU30T3 (include)
    LF5X (optional)
    LF5P (optional)
    {CODEs}FCU5
    Quick connection, 1 spigot, 2 pins, 2 safety spring, SU30
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    {CODEs}FCS5
    Spigot for POWERTRUSS series fast connection kit
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    {CODEs}C6028A
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    {CODEs}C6028B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
    LF5T (include)
    LF5X (include)
    LF5P (include)
    LF5H (include)
    {CODEs}FCPLN
    Conical pin fast connection kit with locking nut for LF5 series
