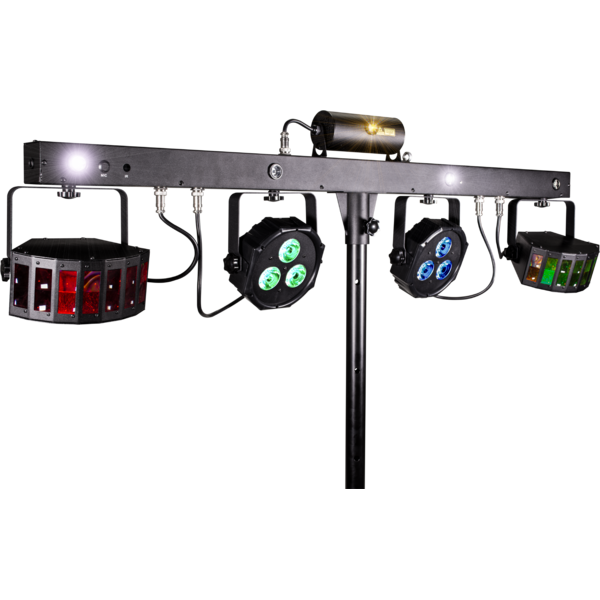

  • LUMI4COMBY is a plug&play portable LED set with 4 lighting fixtures mounted onto one control bar: derby, wash, strobe and laser. LUMI4COMBY is the perfect solution for mobile events housing everything in one unique fixture. The set includes a pair of a LED derby, a pair of LED PAR, LED strobes, red and green lasers, a wireless foot switch, a stand and a nice nylon carry bag. LUMI4COMBY has been developed to be easily controlled through IR, the wireless footswitch, DMX, or auto and sound-active show with several built-in effects which synchronise the 4 section in combo effects.

    Features:
    The set includes: 2 PAR LED, 2 LED derby, LED strobe and laser RG
    Several built-in effects which synchronise the 4 section in combo effects
    Footswitch mode: 4 wireless button controllers with pedals (auto, sound, colour, blackout)
    Ergonomic travel bag included

    LIGHT SOURCE
    • Source:
      (par) 6x9W RGB - (derby) 6x3W RGB - (laser) 650nm/100mW (red) 532nm/30mW (green) - (strobe) 4x1
      W
    • Source life expectancy:
      >50.000 h
    OPTICS
    • Beam angle:
      (par) 13° - (strobe) 8
      °
    • Field angle:
      (par) 24° - (strobe) 18
      °
    • Other:
      Coverage Angle (Laser): 93° - (Derby): 114°
    COLOUR SYSTEM
    • Colour mixing:
      RGB/FC
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Control units:
      Footswitch mode: 4 wireless buttons controller with pedals
    • Protocols:
      DMX512
    • DMX channels:
      3/5/9/27
      channel
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB-DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0~100% electronic dimmer
    • Strobe / shutter:
      1-28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240V – 50/60Hz
    • Power consumption (at 230V):
      45
      W
    PHYSICAL
    • Sospension and fixing:
      360° adjustable hanging bracket - Stand
    • Signal connection:
      3p IN/OUT
    • Power connection:
      IEC 10A IN/OUT
    • Dimensions (WxHxD):
      1185x387x110
      mm
    • Weight:
      6.6
      kg
