| Code | Power | DMX | Avail. | ||||||||||
|
LUMIPAR12UAW3 | IEC | 3p | ||||||||||
|
LUMIPAR12UAW5 | PowerCON | 3p+5p |

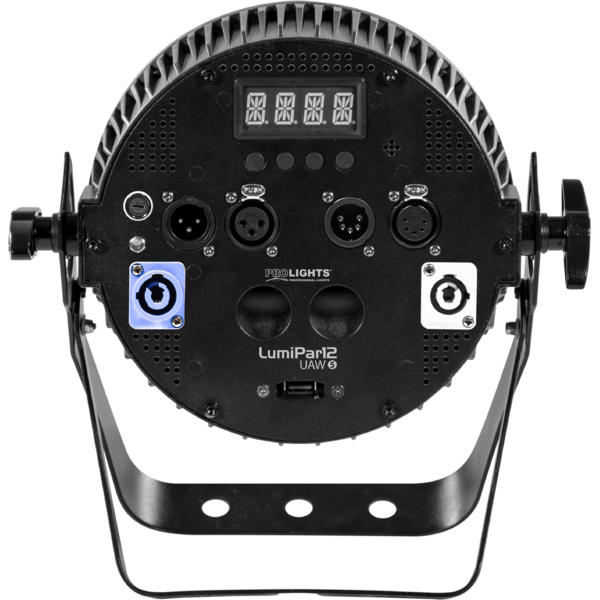

LUMIPAR12UAW is a super-slim PAR LED designed for professional use and to be a powerful wash light. It's equipped with 12x8 W high-efficiency tunable white/amber LED light source, conceived to offer an advanced colour generation with fully controlable colour saturation and temperature. LUMIPAR12UAW is compatible with the infrared remote controller, for intuitive and interactive use without the need of any external DMX units and can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.
Features:12x8 W Tuneable White high-power LED
Independent CT channel from 2600 K to 6000 K
Flicker-free operations with selectable PWM
USB port for USB WIFI transceiver (optional)
Silent operation and HD dimming system
- Source:12x6WTunable White LEDs
- CCT:(WW) 2.600 K - 2.850 K - (CW) 6.000 K - 6.500 K - (ALL) 1.600K
- CRI:(WW) 82 - (CW) 80
- Luminous flux:1'844lm
- Lux:1'336lx@3 m
- Source life expectancy:> 50.000 h
- Beam angle:16°
- Field angle:36°
- Lens diameter:38mm
- Additional optics:45° (optional)
- Colour mixing:tunable white
- CTC:CTC control through dedicated DMX channel
- White presets:2.600 K ~ 6.000K
- Static colour mode:selection of static colour
- Manual colour mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Body:sturdy die-cast aluminium body conceived for long-time durability
- Body colour:black
- Protocols:DMX512
- DMX channels:3 / 7channel
- W-DMX:optional, proprietary protocol compatible with WIFIBOX, WDBOX
- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronized operation of more units linked in a chain
- Dimmer:linear 0 ~ 100% electronic dimmer
- Operating temperature:-10° ~ +45°
- Flicker:flicker free operation
- Power supply:100-240 V – 50/60 Hz
- Power consumption (at 230 V):61W
- Power consumption (at 120 V):61,5W
- Output (at 230 V):40units on a single power line
- Output (at 120 V):21units on a single power line
- Cooling:passive cooling and fan-free
- Sospension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Data:USB port for USB WIFI transmitter (optional)
- Signal connection:variants available
- Power connection:Seetronic powerCON IN/OUT connectors
- IP rating:44
- Dimensions (WxHxD):253x200x237mm
- Weight:3,3kg
ARCLUMIL45D38
WIFIUSB
WIFIBOX
WDBOX
LUMIPARIRCH
UPBOX1U
FCLUMI8Firmware
Accomplish more with our product updates
Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and technical endurance.
Get in touch with our team for any questions or assistance.
Drawings
Catalogues
View catalogue
Download catalogueFixture Libraries / DMX Charts
Photometrics
Software Upgrades
Tech Docs
Italian/English manual | Download |
