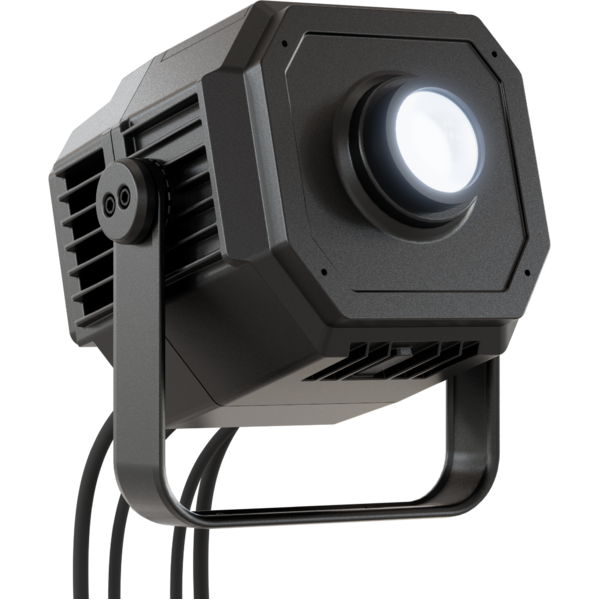

Mosaico FX100

Image projector with dual animation wheel and 1 gobo/color slot, 100W LED source

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100 is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.



Please note that Mosaico FX100 do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.


5 YEARS WARRANTY

Main features:

  • 100W White LED Source Image and Effect light projector
  • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
  • DMX, CRMX Wireless and local stand alone control
See variants

PHOTO GALLERY

Mosaico FX100
Mosaico FX100
Mosaico FX100
Mosaico FX100
Mosaico FX100
Mosaico FX100

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 8'000K
  • Luminous flux: (15°) 3'174 lm; (30° - WT) 3'246 lm; (30° - GB) 3'029 lm; (50° - WT) 3'646 lm; (50° GB) 2'217 lm; (70°) 2'367 @Full
  • Lux: (15°) 1'612 lx; (30° - WT) 954 lx; (30° - GB) 114 lx; (50° - WT) 345 lx; (50° GB) 179 lx; (70°) 176lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: interchangeable - see available accessories
  • Focus: manual
COLOUR SYSTEM
  • Colour wheel: available as accessory MFX100CW
  • Other: included 1 static holder with magnetic positioning
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Gobo size (BW): outer: 26,9 mm - image: 22 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Fixed gobos: Fix gobo wheel available as accessory MFX100GW
  • Static mode: selection of static dimmer and effects rotation mode
  • Other: included 1 static gobo holder with manual indexing gear and magnetic assembly
  • Other: 2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)
BODY
  • Body: weatherproof IP66 construction
  • Body colour: RAL 9006 or RAL 9004
  • Other: Inspectable cover window for effects and gobo replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
  • Stand Alone: 3 push encoder
  • DMX channels: 8channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, electronic and manual knob dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 127W
  • Standby power: 7W
  • Output (at 230V): 15 units on a single power line
  • Power factor: >0.95
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 35 cm moulded IP signal IN/OUT connectors
  • Power connection: 35 cm moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 224x261x221mm / 8.82''x10.28''x8.7''
  • Weight: 5,7kg / 12.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
