Mosaico Jr

70W IP66 zoomable LED image projector with gobo and color wheel

Mosaico Jr is a compact exterior LED image projector designed for projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The on board zoom ranges from 14,7° to 45° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.

5 YEARS WARRANTY

Main features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 14,7° ~ 45° linear zoom system to meet any install indoor or outdoor
  • 70W White LED engine delivering 2'600 lumens
  • On board rotating gobo wheel, colour wheel and wireless DMX
See variants GOBOS

PHOTO GALLERY

Mosaico Jr
Mosaico Jr
Mosaico Jr
Mosaico Jr

Technical specifications

LIGHT SOURCE
  • Source: 70W White LED
  • CCT: 7.000
  • Luminous flux: (14.7°) 2'595 lm - (45°) 2'628
  • Lux: (14.7°) 1'927 lx - (45°) 294lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 14,7° - 45° motorised linear zoom
  • Lens diameter: 63mm / 2.48''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM

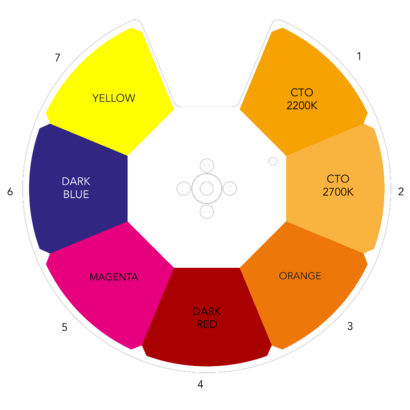

  • Colour wheel: 7 colour filters
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, indexing
  • Gobo size (BW): gobo Ø 15,8 mm - img Ø 12,5 mm
  • Gobo size (Color): gobo Ø 15,8 mm - img Ø 9 mm
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: aluminium die-casting
  • Body colour: RAL 9006 - see available finishing
  • Other: inspectable cover window for image replacement and maintenance and record scenes and create chases and shows throughout these scenes
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: Stand Alone programmer and playback
  • DMX channels: 8 / 14channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 21 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 90W
  • Standby power: 18 W
  • Power factor: >0,92
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 09
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 247x258x244mm / 9.72''x10.16''x9.61''
  • Weight: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Painting
MOSAICOJR
MOSAICOJR
Standard

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
<b>ÆtherBox</b> Two
ÆtherBox Two
(Optional)
IP65 2 universes CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth, battery and POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
MOSJRCCW1
MOSJRCCW1
(Optional)
Optional color wheel for MOSAICOJR
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, G size, black and white (gobo holder included)
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
MOSUNIBRACKJR
MOSUNIBRACKJR
(Optional)
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaicojr_LETTER_DATASHEET_(EN).pdf409KB
Letter datasheetMosaicojr_A4_DATASHEET_(IT).pdf406KB
Letter datasheetMosaicojr_A4_DATASHEET_(EN).pdf403KB
Tender SpecificationMosaicojr_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMosaicojr_DMX_CHARTS.pdf119KB

MOSAICOJR Firmware rev. 1.7

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMosaicojr_3D.skp301KB
3D RFAMosaicojr_3D.rfa1MB
2DMosaicojr_CAD_2D.dwg5MB
3DMosaicojr_CAD_3D.dwg521KB
2D cad symbolsMosaicojr_CAD_2DSYMBOLS.dwg59KB
Technical drawingMosaicojr_TECHNICAL_DRAWING.pdf283KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx327KB

Tech docs

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 07/03/2024 Improvement:
  • Enabled by default the "Advanced Gobo Indexing", "Advanced Focus Indexing", "Advanced Zoom Indexing" functions.
NOTE: It is recommended to perform a Factory Reload after the firmware update.		 Rev. 1.0
