Mosaico LC5M new

ORDER CODE: MOSAICOLC5M

300W IP66 with C5-M treatment zoomable LED image projector with an animation wheel and framing shutters

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.
Built in a durable IP66 die-cast housing and painted with a C5-M marine treatment, it is ideal for outdoor use in challenging saline environments or near the sea, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.
It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.

5 YEARS WARRANTY

Main features:

  • IP66 for long-lasting installations, with minimal maintenance needed
  • C5-M treatment for permanent exterior installation also in marine environment
  • 7°- 49° linear zoom system, for both near and long throw installation
  • 300W White LED engine (8,000K), with up to 11'700 lumen output
  • Extensive feature set including 7 colour-filters on wheel, 7 interchangeable rotating gobos, animation wheel and motorized framing shutters
See variants

PHOTO GALLERY

Mosaico LC5M
Mosaico LC5M
Mosaico LC5M
Mosaico LC5M

Technical specifications

LIGHT SOURCE
  • Source: 300W high-power white LED
  • Source CCT: 8.000K
  • Luminous flux: (7°) 8'536 lm - (49°) 11'729 @Full
  • Lux: (7°) 28'230 lx - (49°) 867lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 7°- 49° motorised linear zoom
  • Lens diameter: 110mm / 4.33''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 8/16-bit
COLOUR SYSTEM
  • Colour mixing: cold white LED with colour wheel

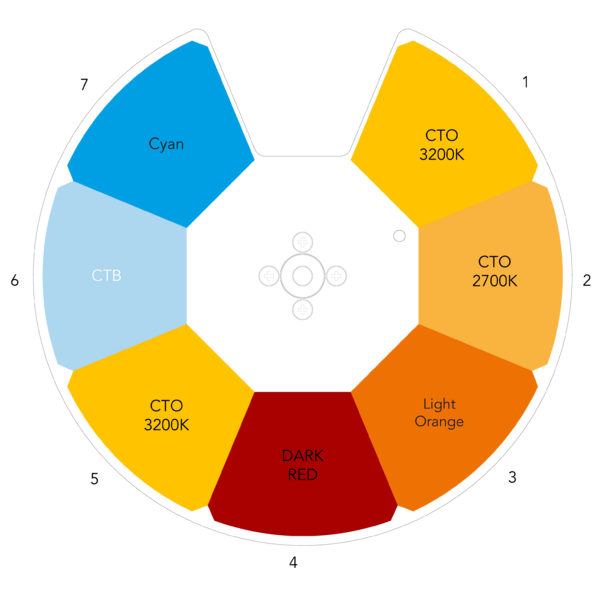

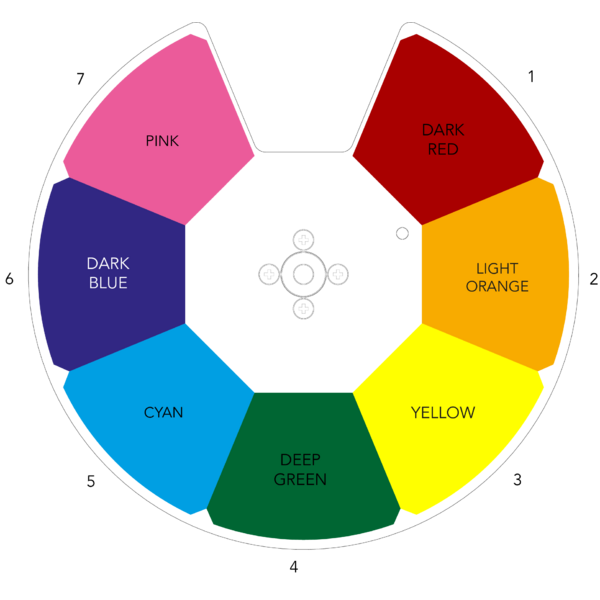

  • Colour wheel: open + 7 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer control
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 3f-f with bi-directional rotation, indexing
  • Frost: linear 0-100%
  • Special features: record scenes and create chases and shows throughout these scenes
GOBOS
  • Rotating gobos (wheel1): open + 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX
  • DMX channels: 22 / 32 / 43ch
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Stand Alone: Stand Alone programmer and playback
BODY
  • Housing: Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
  • Finish: grey (RAL 9006)
  • Other: Inspectable cover window for gobos replacement and maintenance
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 440W
  • Standby power: 58 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: > 0,98
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 09
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Data connection: W-DMX transreceiver
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 362x428x451mm / 14.25''x16.85''x17.76''
  • Weight: 25kg / 55.12lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
MOSLCCW2
MOSLCCW2
(Optional)
Optional color wheel 2 for MOSAICOL
MOSLCCW1
MOSLCCW1
(Optional)
Optional color wheel 1 for MOSAICOL
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, F size, black and white (gobo holder included)
FCLMOSAICOL
FCLMOSAICOL
(Optional)
Flightcase for 2 pcs of MOSAICOL
MOSBRACK
MOSBRACK
(Optional)
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaicolc5m_LETTER_DATASHEET_(EN).pdf(15/01/2026)436KB
Letter datasheetMosaicolc5m_A4_DATASHEET_(ITA).pdf(15/01/2026)432KB
Letter datasheetMosaicolc5m_A4_DATASHEET_(EN).pdf(15/01/2026)431KB
Tender SpecificationMosaicolc5m_TENDER_SPECIFICATION.pdf(17/01/2023)4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMosaicolc5m_DMX_CHARTS.pdf(16/10/2023)174KB

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMosaicolc5m_3D.skp(11/02/2022)276KB
2D cad symbolsMosaicolc5m_CAD_2DSYMBOLS.dwg(11/02/2022)53KB
3DMosaicolc5m_CAD_3D.dwg(11/02/2022)524KB
2DMosaicolc5m_CAD_2D.dwg(08/03/2022)3MB
Technical drawingMosaicolc5m_TECHNICAL_DRAWING.pdf(08/03/2022)207KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(11/02/2022)422KB

Tech docs

Software

File name File size Download
