Mosaico XL

ORDER CODE: MOSAICOXL

540W IP66 zoomable LED image projector with CMY and framing shutter

Mosaico XL is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL offers a phenomenal output of 14'500 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6,6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

5 YEARS WARRANTY

Main features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6,6°- 50° linear zoom system to for both near and long throw installation
  • 540W White LED engine with 6.000 K CT delivering 14'500 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 540W high-power white LED
  • CCT: 6.000
  • Luminous flux: (6,6°) 8'812 lm - (50°) 14'253
  • Lux: (6,6°) 33'138 lx - (50°) 1'138lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 6,6° - 50° motorised linear zoom
  • Lens diameter: 119mm / 4.69''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 3.000 K ~ 6.000 K
  • Colour wheel: 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 20,5 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter, soft-edge and heavy
  • Iris: 5 ~ 100% motorised iris
BODY
  • Body: aluminium die-casting
  • Body colour: RAL 9006
  • Other: inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
CONTROL
  • Protocols: DMX512, RDM, W-DMX, Stand Alone programmer and playback
  • DMX channels: 28 / 30 / 35 / 44channel
  • Wireless Control: Included Wireless Solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 600W
  • Standby power: 115 W
  • Power factor: >0,96
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 09
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 403x462x565mm / 15.87''x18.19''x22.24''
  • Weight: 37kg / 81.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

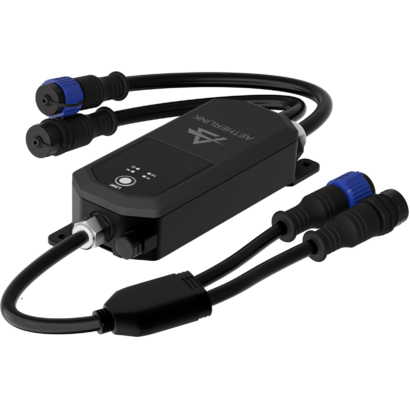

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
RSR0670B
RSR0670B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
MOSBRACK
MOSBRACK
(Optional)
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, F size, black and white (gobo holder included)
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaicoxl_LETTER_DATASHEET_(EN).pdf(28/09/2021)419KB
Letter datasheetMosaicoxl_A4_DATASHEET_(IT).pdf(05/05/2021)387KB
Letter datasheetMosaicoxl_A4_DATASHEET_(EN).pdf(17/06/2024)449KB
Tender SpecificationMosaicoxl_TENDER_SPECIFICATION.pdf(17/01/2023)5MB

DMX chart & personalities

File name File size Download
DMX chartMosaicoxl_DMX_CHARTS.pdf(16/10/2023)190KB

MOSAICOXL Firmware rev. 2.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
mosaico_xl_28ch.fdfDownload
mosaico_xl_30ch.fdfDownload
mosaico_xl_35ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@mosaicoxl@30ch.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IESprolights_ies files.zip(08/06/2020)4KB
LDTprolights_ldt files.zip(08/06/2020)3KB
PhotometricsMosaicoxl_PHOTOMETRICS_REPORT.pdf(08/06/2020)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D RFAMosaicoxl_3D.rfa(23/04/2021)604KB
3D SKPMosaicoxl_3D.skp(23/07/2021)280KB
2DMosaicoxl_CAD_2D.dwg(05/02/2020)2MB
3DMosaicoxl_CAD_3D.dwg(16/07/2021)518KB
2D cad symbolsMosaicoxl_CAD_2DSYMBOLS.dwg(09/03/2020)59KB
Technical drawingMosaicoxl_TECHNICAL_DRAWING.pdf(02/08/2021)325KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)438KB

Tech docs

File name File size Download
Color DocumentMosaicoxl_COLOR.pdf(09/09/2025)74KB
Gobos DocumentMosaicoxl_GOBOS.pdf(25/03/2020)271KB
General safety infoMosaicoxl_A4_GOBOS_CUSTOM_GUIDELINES(IT).pdf(03/06/2025)5MB
General safety infoMosaicoxl_A4_GOBOS_CUSTOM_GUIDELINES(EN).pdf(03/06/2025)5MB
General safety infoMosaicoxl_GOBO-MAPPING-DESIGN.pdf(12/04/2023)236KB
Noise ReportMosaicoxl_NOISE_REPORT.pdf(05/07/2024)586KB

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.4 STABLE 07/03/2024 Improvement:
  • Enabled by default the "Advanced Gobo Indexing", "Advanced Focus Indexing", "Advanced Zoom Indexing" functions.
NOTE: It is recommended to perform a Factory Reload after the firmware update.
Rev. 2
1.5 STABLE 07/03/2024 Improvement:
  • Enabled by default the "Advanced Gobo Indexing", "Advanced Focus Indexing", "Advanced Zoom Indexing" functions.
NOTE: It is recommended to perform a Factory Reload after the firmware update.
Rev. 1.0
