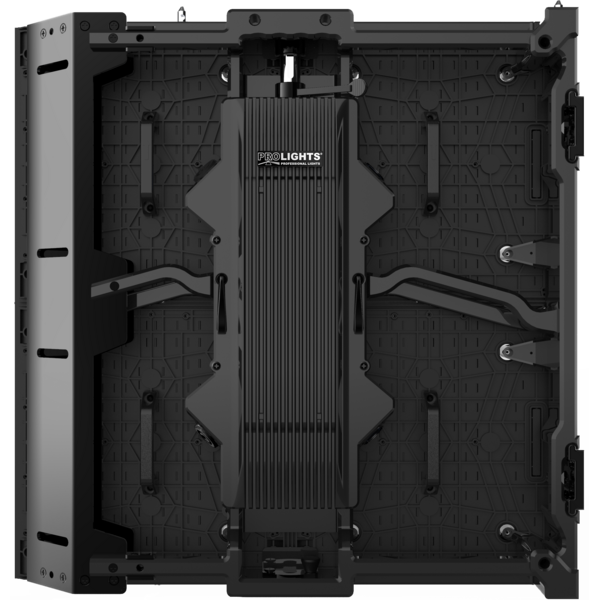

OMEGAX39C45LB
ORDER CODE: OMEGAX39C45LB

Share me

Seamless 90° corners through special 45° cutter cabinets.

Features:
Curve configurations both concave and convex through curving mounting plates:
• 0-10° concave (10° - 5° - 2°)
• 0-5° convex (5° - 2°)

VIDEO

Driver chip type:

MBI 5124
LED source:

SMD 2121 full black
Pixel pitch:

3.9
mm
Panel resolution:

128x128
pixels
Module resolution:

64x64
pixels
Luminous flux:

1.000
nit
Contrast:

3.000:1
Grayscale:

18 bit
Refresh rate ≥:

1.920
Hz
Drive Mode:

1/16 scan, constan current
Vertical viewing angle:

120
°
Horizontal viewing angle:

140
°
LED density:

65.536
LED/sqm
Dead Pixel Ratio:

<0.002
LED avg life span:

100.000

ELECTRICAL

Power input/output:

Seetronic TRUE powerCON
Power supply:

AC 110/230 V 50/60 Hz
Max power consumption (panel):

120
W
Avg power consumption (panel):

40
W
Max power consumption (sqm):

480
W
Avg power consumption (sqm):

160
W
Standby power consumption (pannello):

20
W
Max rated current/panel::

AC 220 V / 0,55 A
Working temperature:

-10°C / +45
°C
Working humidity:

10~80 RH
%

CONTROL

Receiving card type:

A8S
Other controllers type:

rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol:

Novastar
Signal input:

waterproof Seetronic RJ45
Signal output:

waterproof Seetronic RJ45

MECHANICS

Magnetic LED modules:

available
Other specifics:

curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Module size (WxH):

250x250
mm
Panel size(WxHxD):

500×500×90,6
mm
Vertical hanging system:

built-in aliscaf clamp support
Cooling:

natural cooling of the peculiar chassis and to absence of fans
Connection:

seamless locking system
Curvability:

concave 2°, 5°, 10° - convex 2°, 5
°
Body:

die-cast aluminium housing
Color:

black
IP rating:

IP30 (front and rear)
Panel weight:

9
kg
Weight per square meter:

36
kg
Hanging Panel Quantity ≤:

20
Compliant Standard:

CE, EMC, UL

ITEMS REF.

Accessory Code

Description

OMEGAX39C45LB (optional)

OXFCM80C45

Flightcase for 8 45° corner modules OMEGAPIX series LED-display

OMEGAX39C45LB (optional)

OXDCL01

Data cable for OMEGAX LED display series assembled with RJ45, L.1 m

OMEGAX39C45LB (optional)

OXACL01

Power cable for OMEGAX and DELTAX LED display series L.1 m

OMEGAX39C45LB (optional)

OXHGB01C45L

Hanging / ground bar 45° left

OMEGAX39C45LB (optional)

OXCJ88

Cabinet curve plate concave, 2°

OMEGAX39C45LB (optional)

OXCJ85

Cabinet curve plate concave, 5°

OMEGAX39C45LB (optional)

OXCJ80

Cabinet curve plate concave, 10°

OMEGAX39C45LB (optional)

OXCJ92

Cabinet curve plate convex, 2°

OMEGAX39C45LB (optional)

OXCJ95

Cabinet curve plate convex, 5°

OMEGAX39C45LB (optional)

NOVAMCTRLR5

Video processor sender, res. 3840x1080, 8xRJ45 out, 4.6 kg

OMEGAX39C45LB (optional)

FMTOOL

Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)

OMEGAX39C45LB (optional)

OXXJ

Metal joint used to connect 4 pcs OMEGAX26B, OMEGAX39B or OMEGAX39T, M10 hole

OMEGAX39C45LB (optional)

OXC45MP

Mounting plate per 45° cutting-edge cabinet
