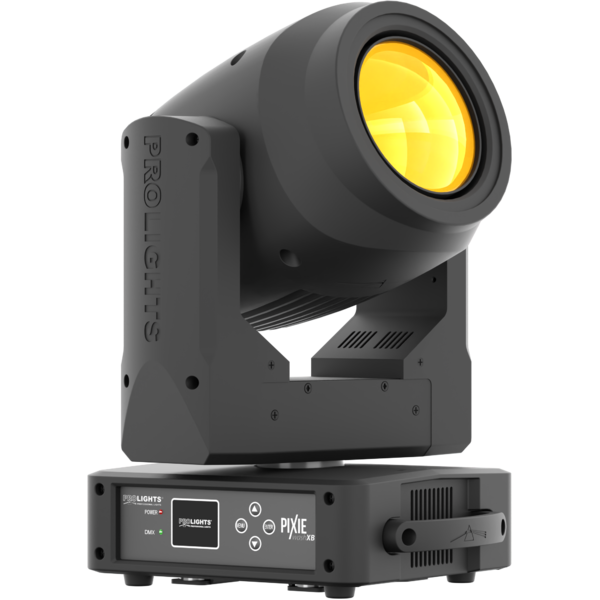

Pixie WashXB

ORDER CODE: PIXIEWASHXB

280W single lens RGB and warm white moving wash luminaire

Pixie WashXB reinvents the concept of the moving LED wash light, bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB and warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie WashXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the Pixie WashXB offers unprecedented flexibility and is ideal for use in theatres, TV, corporate and festivals.

SPEKTRA

Main features:

  • 280W proprietary RGB and warm white LED delivering high CRI, TLCI, TM30 values
  • 7,6° to 43° linear zoom with superior evenness
  • Art-net and WDMX on-board
See variants

PHOTO GALLERY

Pixie WashXB
Pixie WashXB
Pixie WashXB
Pixie WashXB

Technical specifications

LIGHT SOURCE
  • Source: 280W RGB + Warm White LED
  • CCT: @full 6.000
  • Luminous flux: (7,6°) 2'888 lm - (43°) 3'038 @Full
  • Lux: (7,6°) 6'631 lx - (43°) 532lx @5 m full
  • CRI: 96 @3.200 K; 93 @5.600 K
  • R9: 92 @3.200 K; 92,7 @5.600 K
  • TLCI: 84 @3.200 K; 84 @5.600 K
  • TM30 Rf: 91 @3.200 K; 91 @5.600 K
  • TM30 Rg: 104 @3.200 K; 105 @5.600 K
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom range: 7,6° - 43° motorised linear zoom
  • Lens diameter: 125mm / 4.92''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 8.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
  • Pan range: 540°
  • Tilt range: 250°
  • Pan/Tilt resolution: 8/16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium die-casting
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 13 / 15 / 16 / 18 / 22 / 23 / 27channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 240W
  • Output (at 230V): 10 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 308x448x230mm / 12.13''x17.64''x9.06''
  • Weight: 13,6kg / 29.98lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

OS24PLUS
OS24PLUS
(Optional)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixiewashxb_LETTER_DATASHEET_(EN).pdf(28/09/2021)435KB
Letter datasheetPixiewashxb_A4_DATASHEET_(IT).pdf(30/04/2021)423KB
Letter datasheetPixiewashxb_A4_DATASHEET_(EN).pdf(06/09/2024)419KB

User manual

File name File size Download
User manualPixiewashxb_USER_MANUAL.pdf(27/11/2023)7MB
User manualPixiewashxb_NET_PCB_Firmware_Update.pdf(08/01/2024)460KB
User manualPixiewashxb_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartPixiewashxb_DMX_CHARTS.pdf(04/10/2019)58KB

PIXIEWASHXB Firmware rev. 2.3

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixiewashxb_27ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@pixiewash_xb_27ch@27ch.xmlDownload
prolights_cb@pixiewash_xb_22ch_cb@22ch_cb.xmlDownload
manufacturer fixture library (Link) Link
pixiewash xb 22ch_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPPixiewashxb_3D.skp(13/03/2020)5MB
3D RFAPixiewashxb_3D.rfa(23/04/2021)936KB
2DPixiewashxb_CAD_2D.dwg(16/12/2020)8MB
3DPixiewashxb_CAD_3D.dwg(18/02/2020)2MB
2D cad symbolsPixiewashxb_CAD_2DSYMBOLS.dwg(09/03/2020)95KB
Technical drawingPixiewashxb_TECHNICAL_DRAWING.pdf(16/12/2020)394KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)575KB

Tech docs

File name File size Download
Noise ReportPixiewashxb_NOISE_REPORT.pdf(07/12/2022)130KB

Software

File name File size Download
SoftwareProfessional Uploader(03/03/2025)19MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.3 STABLE 25/06/2025 Improvement:
  • Improved power management.
NOTE: this and previous firmware version are NOT compatible with fixtures of US and CANADA market. For these products please download firmware from this link		 Rev. 1.0
