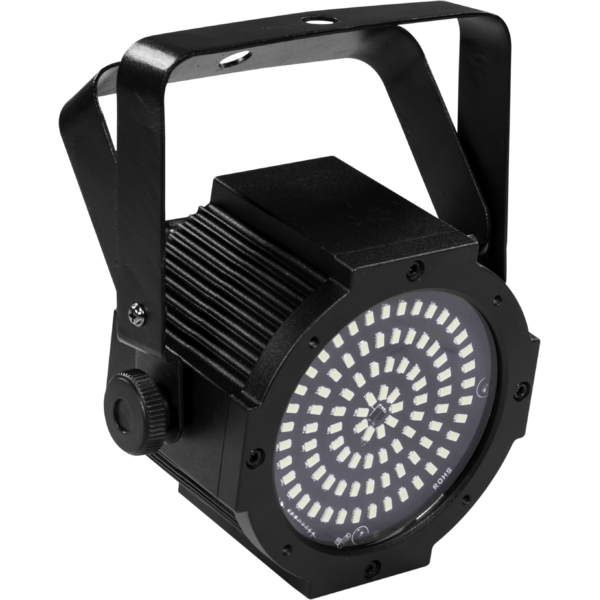

POLAR500 is a LED strobe engineered to offer a true explosion of light and a range of dynamic effects - all in a unique fixture. The light source is composed of 90 SMD 6.500 K 0,5 W LED allowing for a full-on continuous operation and capable to offer an equal output of conventional 500 W strobe from just one-sixth of the nominal power.
Features:90x0,5 W SMD Cold White LED
Capability to feature full-on operation like a blinder
Super-slim design despite its outstanding output
Comparable to a 500 W strobe
LIGHT SOURCE
- Source:90x0.5WCold White LEDs
- CCT:6.000K
- Luminous flux:1'808lm
- Lux:59,6lx@3 m
- CRI:72
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:110°
- Field angle:149°
COLOUR SYSTEM
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
BODY
- Body:sturdy die-cast aluminium body
- Body colour:black
CONTROL
- Protocols:DMX512
- DMX channels:1 / 4 / 5 / 8channel
- Pixel control:ring control
- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Strobe / shutter:1 - 28Hz, electronic
- LED Control:flicker free operation
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption:23,5W
- Max power consumption (at 120V):23,9W
- Output (at 230V):54units on a single power line
- Output (at 120V):29units on a single power line
PHYSICAL
- IP rating:30
- Cooling:passive cooling and fan-free
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Signal connection:XLR 3p IN/OUT connectors
- Power connection:IEC IN/OUT connectors
- Dimensions (WxHxD):170x130x170mm
- Weight:1,5kg
CERTIFICATIONS / APPROVALS
BOX CONTENT- Certifications / Approvals:CE
- 1 x POLAR500
- 1 x 1,5 meters BARE END - IEC power cable
- User Manual
ITEMS REF.
Accessory Code
Description
C6002BPOLAR500 (optional)
RSR0630BSteel security cable for hanging bodies, inox steel shackle, L=60 cm, black
VDE15SEU
TOUR53413L03POLAR500 (optional)
LUMIPARIRCHRGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
UPBOX1UP5Firmware
Accomplish more with our product updates
Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and technical endurance.
Get in touch with our team for any questions or assistance.
Drawings
Catalogues
View catalogue
Download catalogueFixture Libraries / DMX Charts
Photometrics
Software Upgrades
Tech Docs
| Polar500_USER_MANUAL_ITEN.pdf | Download |
