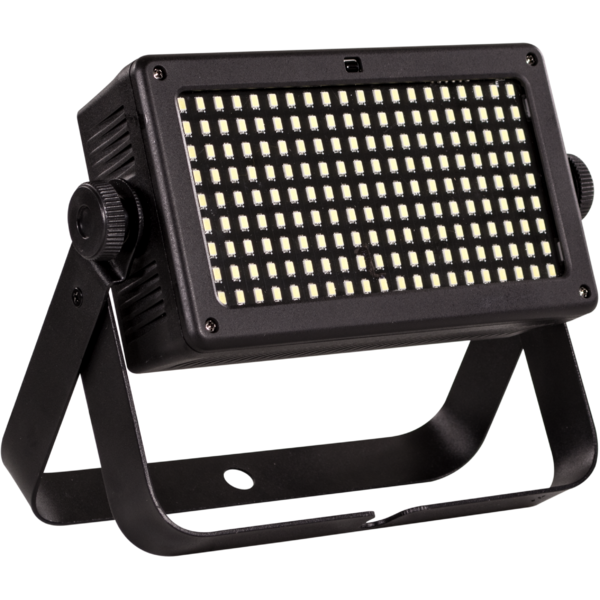

POLAR700
Share me

Immagine Principale
  • POLAR700
  • POLAR700
  • POLAR700
  • POLAR700
  • POLAR700 is a revolutionary LED strobe, engineered to offer a true explosion of light and a range of dynamic effects - all in a unique fixture. POLAR700 can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColors app.

    Features:
    180x0,5 W SMD Cold White LEDs
    Capability to feature full-on operation like a blinder
    Super-slim design despite its outstanding output
    Comparable to a 700 W Xenon strobe
    WIFI control with optional USB WIFI transceiver

    LIGHT SOURCE
    • Source:
      180x0,5
      W
      Cold White LEDs
    • CT:
      6.000
      K
    • CRI:
      72
    • Luminous flux:
      3'506
      lm
    • Lux:
      132
      lx
      @3 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      110
      °
    • Field angle:
      152
      °
    COLOUR SYSTEM
    • Macros:
      several pre-build pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Manual colour mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3 / 5 / 8 / 13
      channel
    • Pixel control:
      section control
    • W-DMX:
      optional, proprietary protocol compatible with WIFIBOX, WDBOX
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      43,1
      W
    • Power consumption (at 120 V):
      44,6
      W
    • Output (at 230 V):
      30
      units on a single power line
    • Output (at 120 V):
      14
      units on a single power line
    PHYSICAL
    • Cooling:
      natural cooling of the peculiar chassis and to absence of fans
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Data:
      USB port for USB WIFI transmitter (optional)
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    • IP rating:
      30
    • Dimensions (WxHxD):
      233x114x167
      mm
    • Weight:
      1,6
      kg
    Product Code
    Accessory Code
    Description
    POLAR700 (optional)
    LUMIPIX9UHE (optional)
    PIXIESPOT (optional)
    BATPAR12UTRI (optional)
    BATPAR6UTRI (optional)
    LUMIPIX9UHEPRO (optional)
    LUMIPACK6UQ (optional)
    FLATCOB80UV (optional)
    LUMIPIX12UQ (optional)
    LUMIPIX12UT (optional)
    FLATCOB40 (optional)
    QUADRO18UTRI (optional)
    JETSPOT1 (optional)
    JETBEAM1 (optional)
    LUMIPIX12UQPRO (optional)
    LUMIPAR6UQ (optional)
    LUMIPAR12UQ (optional)
    FLATCOB80 (optional)
    LUMI4UTRI (optional)
    LUMIPAR7UTRI (optional)
    LUMIPACK7UTRI (optional)
    VISUALGOB (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (optional)
    AQUA (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR12UQPRO (optional)
    MINIVERSAPAR (optional)
    USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
    POLAR700 (optional)
    MINIVERSAPAR (optional)
    BATPAR6UTRI (optional)
    BATPAR12UTRI (optional)
    LUMIPIX9UHEPRO (optional)
    LUMIPIX9UHE (optional)
    SMARTTUBE32 (optional)
    SMARTBATTENQ (optional)
    SMARTBAT (optional)
    MOBIBLAST (optional)
    SMARTBATIP (optional)
    SMARTBATHEX (optional)
    LUMIPAR7UTRI (optional)
    LUMIPIX12UQ (optional)
    LUMIPIX12UT (optional)
    QUADRO18UTRI (optional)
    JETSPOT1 (optional)
    JETBEAM1 (optional)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    LUMIPIX12UQPRO (optional)
    LUMI4UTRI (optional)
    FLATCOB80UV (optional)
    LUMIPACK6UQ (optional)
    LUMIPACK7UTRI (optional)
    VISUALGOB (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (optional)
    AQUA (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPAR12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPAR12UQPRO (optional)
    DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
    POLAR700 (optional)
    BATPAR6UTRI (optional)
    BATPAR12UTRI (optional)
    MINIVERSAPAR (optional)
    SMARTTUBE32 (optional)
    SMARTBATTENQ (optional)
    MOBIBLAST (optional)
    SMARTBAT (optional)
    SMARTBATIP (optional)
    SMARTBATHEX (optional)
    LUMIPIX9UHEPRO (optional)
    LUMIPIX9UHE (optional)
    FLATCOB80UV (optional)
    LUMIPIX12UQ (optional)
    LUMIPIX12UT (optional)
    QUADRO18UTRI (optional)
    JETSPOT1 (optional)
    JETBEAM1 (optional)
    LUMIPIX12UQPRO (optional)
    LUMIPACK6UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPAR12UQ (optional)
    FLATCOB40 (optional)
    LUMI4UTRI (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR7UTRI (optional)
    VISUALGOB (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (optional)
    AQUA (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK12UQ (optional)
    FLATCOB80 (optional)
    LUMIPAR12UQPRO (optional)
    Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
    POLAR700 (optional)
    LUMIPIX9UHEPRO (optional)
    LUMIPIX9UHE (optional)
    WASH4PACK (include)
    FLATPAR3H (include)
    FLATPAR3Q (include)
    TRUSSPOD3BAT (include)
    TRUSSPOD3T (include)
    POLAR500 (optional)
    BATWASHIR (optional)
    BATGOBOIR (include)
    BATPAR6UTRI (include)
    BATPAR12UTRI (include)
    SMARTBATPLUS (include)
    PIN6PACK (include)
    BATPINIR (optional)
    FLATPAR6H (include)
    6BEAMQ (optional)
    UVSTRIP18 (optional)
    SMARTTUBE32 (optional)
    MOBIBLAST (optional)
    SMARTBATTENQ (include)
    FLATCOB80UV (optional)
    LUMIPAR6UQ (optional)
    LUMIPAR12UQ (optional)
    LUMIPACK12UQ (include)
    LUMIPAR12UAW (optional)
    LUMIPACK6UQ (include)
    LUMIPIX12UT (optional)
    LUMIPAR12UH (optional)
    QUADRO18UTRI (optional)
    LUMIPIX12UQPRO (optional)
    LUMI4UTRI (optional)
    LUMIPACK12UTRI (include)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    AQUA (optional)
    VISUALGOB (optional)
    LUMIPIX12UQ (optional)
    LUMIPACK7UTRI (include)
    LUMIPAR7UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPAR12UQPRO (optional)
    SMARTBAT (include)
    SMARTBATIP (include)
    SMARTBATHEX (include)
    RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
    POLAR700 (optional)
    LUMIPAR7IP (optional)
    SMARTBOOK (optional)
    DATAMASTER (optional)
    HALUSTRIP (optional)
    LUMIPIX15IP (optional)
    WDBOX (optional)
    PIXBAR3E (optional)
    SUNRISE2L (optional)
    SUNRISE2 (optional)
    UVSTRIP18 (optional)
    ARTNETNODE (optional)
    PIXROLL12TRI (optional)
    6BEAMQ (optional)
    ACCENT1Q (optional)
    UVPANEL18 (optional)
    SUNRISE4 (optional)
    LUMIPAR7QTOUR (optional)
    JETBEAM2 (optional)
    SUNBAR2500MAX (optional)
    POLAR3000 (optional)
    WIFIBOX (optional)
    LUMIPAR12IP (optional)
    PINSPOTD (optional)
    LUMI4COB (optional)
    SUNBAR2000FC (optional)
    PIXIEZOOM (optional)
    BATPAR180 (optional)
    TRUSSPOD3BAT (optional)
    POLAR500 (optional)
    POLAR1000 (optional)
    HALUPIX (optional)
    LUMIPIX6TRI (optional)
    HALUROCK (optional)
    CHROMAPIX (optional)
    CHROMAROCK (optional)
    PIXIEZOOMXB (optional)
    Z8STRIP (optional)
    JETSPOT4Z (optional)
    TRUSSPOD3T (optional)
    RA2000PROFILE (optional)
    PIXIEWASHXB (optional)
    BATSTRIP160 (optional)
    SMARTDISK (optional)
    SMARTTORCH (optional)
    PIXPAN16 (optional)
    Z7SPOT (optional)
    ECLIPSEFRESNELJ (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    ECLFR2KTW (optional)
    ECLFR2K (optional)
    MINIECLFR (optional)
    ECLIPSEFRESNELTW (optional)
    JETBEAM1 (optional)
    JETSPOT1 (optional)
    ECLIPSEJR (optional)
    MINIECLFRFC (optional)
    ARCPOINT1 (optional)
    ECLJRG2 (optional)
    MOBIBLAST (optional)
    VERSAPAR (optional)
    DISPLAYCOBFC (optional)
    FLATPAR6H (optional)
    LUMIPAR7HPRO (optional)
    DISPLAYCOBWW (optional)
    FLATPAR3Q (optional)
    FLATPAR3H (optional)
    LION (optional)
    DISPLAYCOBDY (optional)
    ECLIPSEFRESNEL (optional)
    LUMIPIX12UQPRO (optional)
    FLATCOB80 (optional)
    FLATCOB40 (optional)
    ARIA700SPOT (include)
    ARIA700PROFILE (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    FLATCOB80UV (optional)
    LUMIPACK12UTRI (optional)
    LUMIPAR7UTRI (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR12HPRO (optional)
    LUMIPIX12TRIIP (optional)
    LUMIPAR18VWPRO (optional)
    LUMIPIX12QTOUR (optional)
    AQUA (optional)
    SUNBLAST3000FC (optional)
    PIXIEWASH (optional)
    DISPLAYCOBTRWDFC (optional)
    VISUALGOB (optional)
    LUMI4UTRI (optional)
    DISPLAYCOBTRWDDY (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    ARCPAR18 (optional)
    ARCPOD8 (optional)
    ARCPOD21 (optional)
    ARCPOD36 (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSTU (optional)
    SUNBLAST3500MAX (optional)
    SOLAR21 (optional)
    QUADRO18UTRI (optional)
    LUMIPIX12UT (optional)
    LUMIPIX12UQ (optional)
    ARCPAR7 (optional)
    STUDIOCOBPLUSUV (optional)
    LUMIPIX8H (optional)
    LUMIPAR12UTRI (optional)
    DISPLAYCOBTRWDWW (optional)
    STUDIOCOBPLUSDY (optional)
    LUMIPIX12Q (optional)
    ECLIPSEJZIP (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPAR12UQ (optional)
    ARENACOB4HALO (optional)
    LUMIPIX16H (optional)
    ARENACOB4FC (optional)
    SOLAR (optional)
    STUDIOCOBDY (optional)
    ECLIPSEPARFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBFC (optional)
    TABLEDW (optional)
    SMARTBATTENQ (optional)
    STUDIOCOBTU (optional)
    LUMIPIX12QIP (optional)
    ECLIPSE (optional)
    ECLIPSEPAR (optional)
    RA3000PROFILE (optional)
    TABLEDC (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    SOLAR48Q (optional)
    ECLIPSEHD (optional)
    SMARTBAT (optional)
    ECLIPSEHD2 (optional)
    ECLPANELTWC (optional)
    SMARTBATIP (optional)
    SMARTBATHEX (optional)
    ECLIPSEHDTWC (optional)
    ECLIPSEFC (optional)
    SOLAR27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    TRIBE_POLAR700_CAD_2D.dwgDownload
    TRIBE_POLAR700_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    Download dmx charts
    Firmware rev. 1.2
    AVOLITES Titan
    prolights_polar700.d4Download
    CHAMSYS
    manufacturer fixture libraryLink
    Grand Ma 2
    prolights@polar_700@2ch@2ch_mode_for_polar_700.xmlDownload
    prolights@polar_700@8ch@for_8ch_mode..xmlDownload

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
