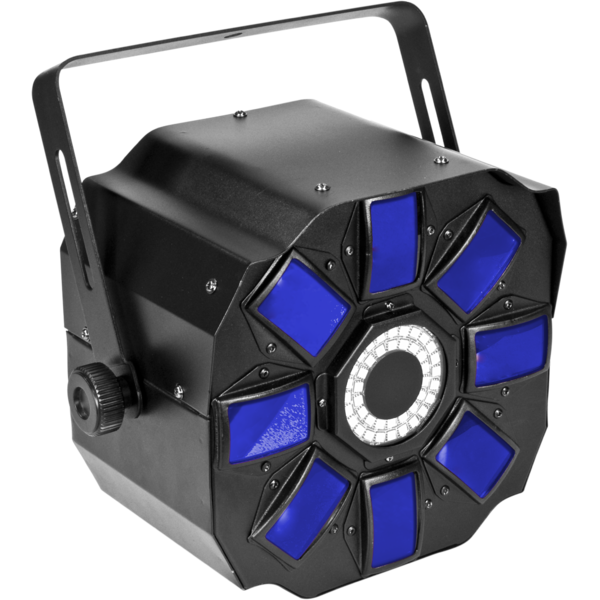

  • Multi-beam combo effect and strobe with 5 colour LED technology (RGBWA) and SMD5050 for the strobe section. The 8 projection lenses offer a wide emission angle, producing hundreds of multicoloured rays in motion and rotation. The central ring of white LED play a strobe effect that can dazzle the audience.

    Features:
    Light source: 5x3 W RGBWA LEDs + 42 LED SMD5050 white
    Beam angle: 65°, 8 lenses produce hundreds of points of light
    DMX mode: 2 / 5 channel
    Sound mode: switch music via the internal microphone, sensitivity control
    Connections: XLR-3p (signal), VDE plug (power supply)
    Power Supply: AC 100/240 V, 50/60 Hz
    Average power consumption: 30 W
    Power output for connection of multiple units in series: up to 21 projectors at 230 V
    Weight: 3,7 kg
    Dimensions (WxHxD): 145x105x209 mm

    PHYSICAL
    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Fixture Libraries / DMX Charts

    Download dmx charts
    Firmware rev. 1.0
    AVOLITES Titan
    prolights_radionstr.d4Download
    CHAMSYS
    prolights_radionstr_2ch.hed Download
    prolights_radionstr_5ch.hed Download
    DIGILITE
    radionstr_2ch.fdf Download
    radionstr_5ch.fdf Download
    DMXControlCenter
    radionstr_2ch.ssl Download
    radionstr_5ch.ssl Download

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
