SQ30
PROTRUSS

SQ30

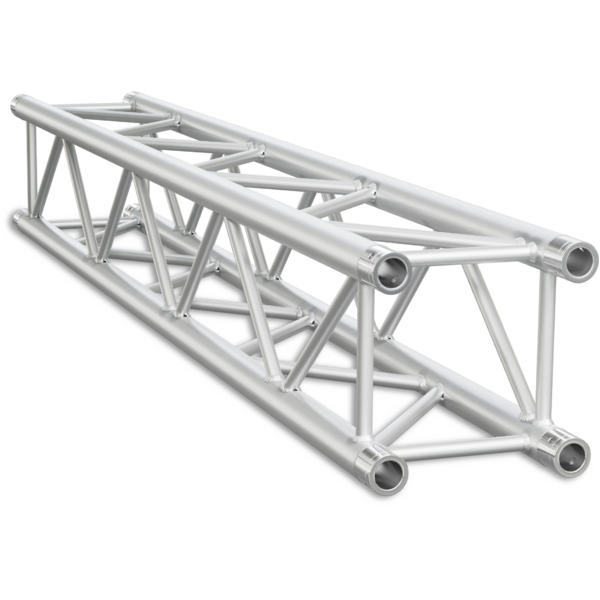

Square section aluminium truss with 29cm long sides

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
SQ30021
SQ30021
50x2
20x2
210
290
290
1,70
0,017
AL
SQ30021B
SQ30021B (DISCONTINUED)
50x2
20x2
210
290
290
1,70
0,017
BK
SQ30025
SQ30025
50x2
20x2
250
290
290
2
0,021
AL
SQ30025B
SQ30025B (DISCONTINUED)
50x2
20x2
250
290
290
2
0,021
BK
SQ30029
SQ30029
50x2
20x2
290
290
290
2,3
0,024
AL
SQ30029B
SQ30029B (DISCONTINUED)
50x2
20x2
290
290
290
2,3
0,024
BK
SQ30050
SQ30050
50x2
20x2
500
290
290
3,5
0,042
AL
SQ30050B
SQ30050B (END OF LIFE)
50x2
20x2
500
290
290
3,5
0,042
BK
SQ30100
SQ30100
50x2
20x2
1000
290
290
5,6
0,084
AL
SQ30100B
SQ30100B (DISCONTINUED)
50x2
20x2
1000
290
290
5,6
0,084
BK
SQ30150
SQ30150
50x2
20x2
1500
290
290
8,3
0,126
AL
SQ30150B
SQ30150B (DISCONTINUED)
50x2
20x2
1500
290
290
8,3
0,126
BK
SQ30200
SQ30200
50x2
20x2
2000
290
290
10,6
0,168
AL
SQ30200B
SQ30200B (END OF LIFE)
50x2
20x2
2000
290
290
10,6
0,168
BK
SQ30250
SQ30250
50x2
20x2
2500
290
290
12,8
0,210
AL
SQ30250B
SQ30250B (END OF LIFE)
50x2
20x2
2500
290
290
12,8
0,210
BK
SQ30300
SQ30300
50x2
20x2
3000
290
290
14,2
0,252
AL
SQ30300B
SQ30300B (END OF LIFE)
50x2
20x2
3000
290
290
14,2
0,252
BK
SQ30350
SQ30350
50x2
20x2
3500
290
290
17,5
0,294
AL
SQ30350B
SQ30350B (DISCONTINUED)
50x2
20x2
3500
290
290
17,5
0,294
BK
SQ30400
SQ30400
50x2
20x2
4000
290
290
18,6
0,336
AL
SQ30400B
SQ30400B (END OF LIFE)
50x2
20x2
4000
290
290
18,6
0,336
BK

Accessories & Related Products

TCQ30
TCQ30
(Optional)
FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
HQ30K8
HQ30K8
(Optional)
6 way DADO module, HQ30 series compatible, 2x FCQ5K8 included
SQ30L2045
SQ30L2045
(Optional)
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 45°
SQ30L2060
SQ30L2060
(Optional)
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 60°
SQ30L2090
SQ30L2090
(Optional)
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 90°
SQ30L2120
SQ30L2120
(Optional)
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 120°
SQ30L2135
SQ30L2135
(Optional)
2-way corner for SQ30 Series, extrude tube 50x2mm, FCQ5 included, 135°
SQ30L3
SQ30L3
(Optional)
3-way L corner for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ30T3
SQ30T3
(Optional)
3-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ30X4
SQ30X4
(Optional)
4-way X joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ30T4
SQ30T4
(Optional)
4-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ30T5
SQ30T5
(Optional)
5-way T joint for SQ30 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ30FP
SQ30FP
(Optional)
Aluminium ground base for square section trusses, SQ-HQ30,
FCC3
FCC3
(Optional)
Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSq30_A4_LOAD_CHART_(EN).pdf258KB
Letter datasheetSq30_A4_DATASHEET_(EN).pdf310KB

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
