SQ40
PROTRUSS

SQ40

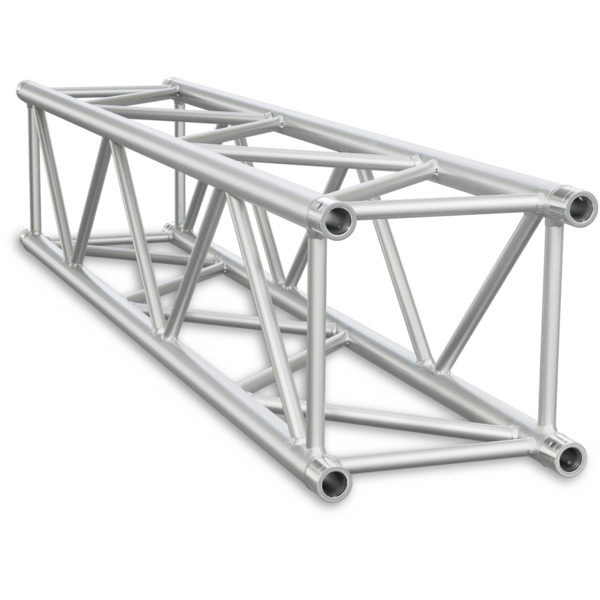

Square section aluminium truss with 40 cm sides.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
SQ40050
SQ40050
50x2
25x2
500
400
400
4,5
0,080
AL
SQ40050B
SQ40050B (DISCONTINUED)
50x2
25x2
500
400
400
4,5
0,080
BK
SQ40100
SQ40100
50x2
25x2
1000
400
400
6,93
0,160
AL
SQ40100B
SQ40100B (DISCONTINUED)
50x2
25x2
1000
400
400
6,93
0,160
BK
SQ40150
SQ40150
50x2
25x2
1500
400
400
9,22
0,240
AL
SQ40150B
SQ40150B (DISCONTINUED)
50x2
25x2
1500
400
400
9,22
0,240
BK
SQ40200
SQ40200
50x2
25x2
2000
400
400
11,66
0,320
AL
SQ40200B
SQ40200B (DISCONTINUED)
50x2
25x2
2000
400
400
11,66
0,320
BK
SQ40250
SQ40250
50x2
25x2
2500
400
400
14,86
0,400
AL
SQ40250B
SQ40250B (DISCONTINUED)
50x2
25x2
2500
400
400
14,86
0,400
BK
SQ40300
SQ40300
50x2
25x2
3000
400
400
16,90
0,480
AL
SQ40300B
SQ40300B (DISCONTINUED)
50x2
25x2
3000
400
400
16,90
0,480
BK
SQ40350
SQ40350
50x2
25x2
3500
400
400
20,10
0,560
AL
SQ40350B
SQ40350B (DISCONTINUED)
50x2
25x2
3500
400
400
20,10
0,560
BK
SQ40400
SQ40400
50x2
25x2
4000
400
400
22,54
0,640
AL
SQ40400B
SQ40400B (DISCONTINUED)
50x2
25x2
4000
400
400
22,54
0,640
BK

Accessories & Related Products

FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
SQ40L2045
SQ40L2045
(Optional)
2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 45°
SQ40L2060
SQ40L2060
(Optional)
2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 60°
SQ40L2090
SQ40L2090
(Optional)
2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 90°
SQ40L2120
SQ40L2120
(Optional)
2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 120°
SQ40L2135
SQ40L2135
(Optional)
2-way corner for SQ40 Series, extrude tube 50x2mm, FCQ5 included, 135
SQ40L3
SQ40L3
(Optional)
3-way L corner for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ40T3
SQ40T3
(Optional)
3-way T joint for SQ40 Series, extrude tube 50x2mm, 2x FCQ5 included
SQ40FP
SQ40FP
(Optional)
Aluminium ground base for square section trusses, SQ-HQ40,
TSAX40Q
TSAX40Q
(Optional)
Trolley stack for S-HQ-ST40
FCC3
FCC3
(Optional)
Safety spring for Powertruss series Fast Connection kit SQ-T-F22 series
