IP65

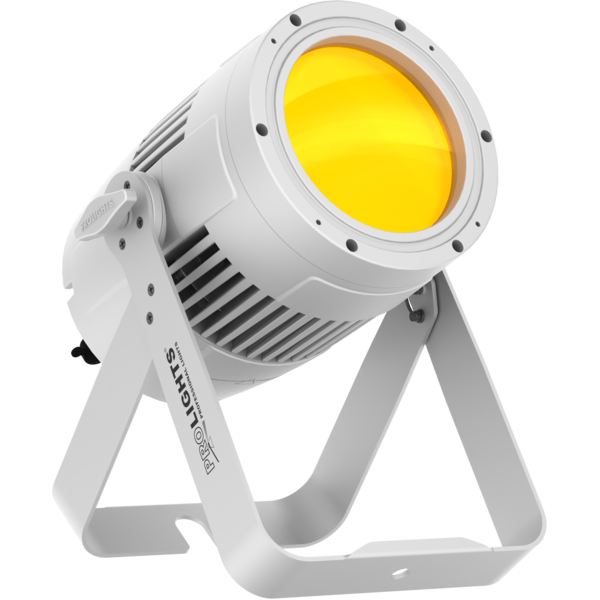

StudioCob PFC2
| Code | Finishing | Avail. | |||||||||||
|
STUDIOCOBPFC2BK | Black | |||||||||||
|
STUDIOCOBPFC2WH | White |
StudioCob PFC2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.
Features:IP65 rated connectors for easy use both indoor and outdoor
150W RGBW COB LED source with HD dimming with an extensive and even colour palette
Flexible lens options of 18° - 38° - 60°
LIGHT SOURCE
- Source:150WCOB RGBW / FC LED
- CCT:white LED 5'700K
- Luminous flux:(18°) 3'632lm
- Lux:(18°) 2'958lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:(on-board) 18° - (inc) 38° - (opt) 60°
- Field angle:(on-board) 36° - (inc) 63°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:38° (inc)
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- CCT:CCT control through dedicated DMX channel
- Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
BODY
- Body:sturdy die-cast aluminium body
- Body colour:black, white finishing available
CONTROL
- Protocols:DMX512, RDM
- DMX channels:4 / 6 / 10channel
- RDM:RDM for remote monitoring and settings
- Display:black OLED touch display
- Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 ~ 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Display battery:self-charging battery backup
- Operating temperature:-20° ~ +45°
- LED Control:flicker free operation
- Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption:140W
- Max power consumption (at 120V):145W
- Output (at 230V):12units on a single power line
- Power factor:0,96
PHYSICAL
- IP rating:65for temporary outdoor application, not for fixed installation
- Cooling:active, silent operation
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Dimensions (WxHxD):259x187x370mm
- Weight:5,6kg
CERTIFICATIONS / APPROVALS
BOX CONTENT- Certifications / Approvals:CE, UKCA, RCM, cTUVus, FCC
- 1 x STUDIOCOBPLUSFC
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
ITEMS REF.
Accessory Code
Description
STUDIOCOBPFC2 (optional)
INF53415L03Dmx cable HC5340. SETMC5MXXB XLR 5p->SETMC5FXXB XLR (f) 5p L.3m
938225L03STUDIOCOBPFC2 (optional)
9313FXWL03Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, SETSAC3FX socket, L.3 m
STUDIOCOBPLUSL18
9333FXWL03
C6002BSTUDIOCOBPFC2 (optional)
RSR0630B
NEW
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBPLUSL38
STUDIOCOBTPG
STUDIOCOBPLUSL60STUDIOCOBPFC2 (optional)
STUDIOCOBBDBarn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
UPBOX1UFirmware
Accomplish more with our product updates
Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and technical endurance.
Get in touch with our team for any questions or assistance.
