VIRTUALDRAPE
Share me

Immagine Principale
  • VIRTUALDRAPE

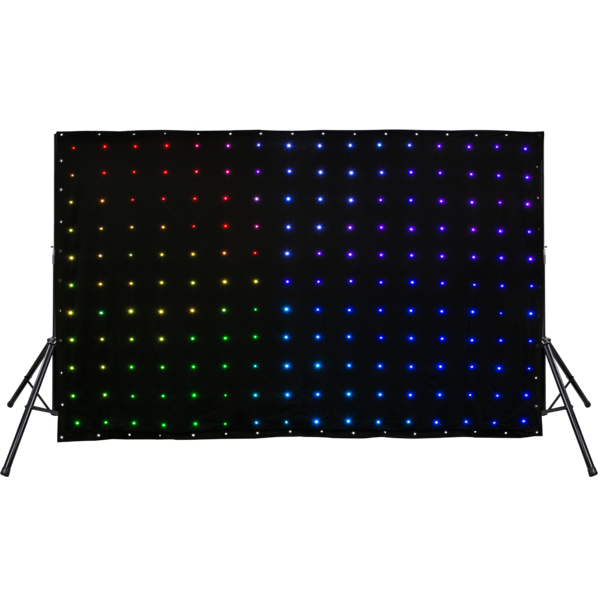

  • VIRTUALDRAPE is a LED curtain developed to create light backdrops with interactive patterns. VIRTUALDRAPE is built in a fireproof textile material with 176 RGB / FC LED SMD, in 300x200 cm modular sizes. Power supply and control driver are built inside an external box (included) which allows for the set up of the DMX address and allows the user to run a wide range of auto-show, sound-show or static patterns. VIRTUALDRAPE is an innovative scenographic solution, which can be used in a wide range of applications as stages, clubs, weddings, ceremonies, showroom and conference and is the perfect addition to any production.

    Features:
    176 LED SMD5050 RGB / FC
    Power supply and control via an external box with a 4 pole connection cable (included)
    30 built-in programs with execution speed adjustment
    Flicker-free operations

    LIGHT SOURCE
    • Source:
      176x0,5
      W
      SMD5050 RGB LED
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Pixel pitch:
      200
      mm
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static colour mode:
      selection of static colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body:
      flexible tissue, flame-retardant
    • Body colour:
      black
    CONTROL
    • Control units:
      via external box (included)
    • Protocols:
      DMX512
    • DMX channels:
      8
      channel
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      30 W ~ 150
      W
    PHYSICAL
    • Signal connection:
      3p IN/OUT
    • Power connection:
      4p IN/OUT
    • IP rating:
      20
    • Dimensions (WxHxD):
      300x200
      mm
    • Weight:
      6
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    AVOLITES Titan
    prolights_virtualdrape.d4Download
    CHAMSYS
    prolights_virtualdrape_8ch.hed Download
    DMXControlCenter
    virtualdrape.ssl Download
    virtualdrape.ssl2 Download
    HOG Consoles
    manufacturer fixture libraryLink

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
