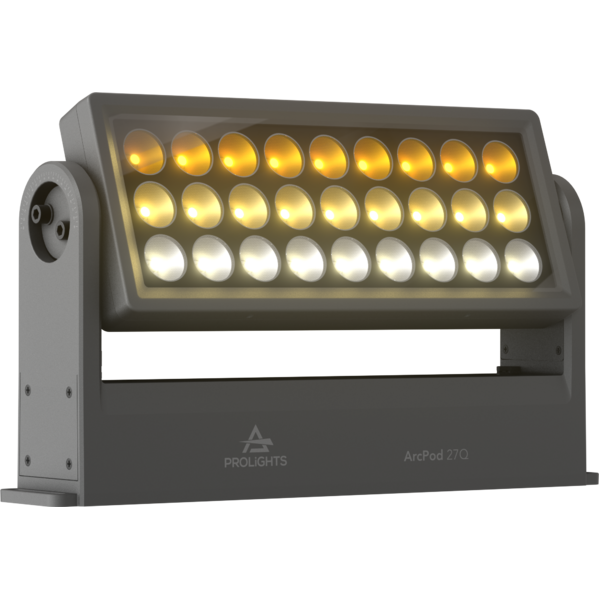

ArcPod 27Q

ORDER CODE: ARCPOD27Q

27x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'200 lumens. It is equipped with 27x10W RGBW/FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27Q an incredibly flexible and versatile device for any outdoor install.

5 YEARS WARRANTY

Main features:

  • 27x10W RGBW/FC LEDs delivering 11'200 lumens
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless
See variants

PHOTO GALLERY

ArcPod 27Q
ArcPod 27Q
ArcPod 27Q
ArcPod 27Q

Technical specifications

LIGHT SOURCE
  • Source: 27x10W RGBW / FC LEDs
  • Luminous flux: (10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816 @full
  • Lux: (10°) 17'953 lx; (15°) 14'017 lx; (25°) 6'340 lx; (45°) 1'454lx @3 m full
  • Lux: (10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 28°
  • Additional optics: 10° - 25° - 45° (optional) - see available accessories
  • Other: barn doors not included
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 3 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10 / 13 / 17channel
  • Pixel control: up to 3 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 9 units on a single power line
  • Power factor: 0,97
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

CRMXBOXIP67
CRMXBOXIP67
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A27QFILTER20
A27QFILTER20
(Optional)
20° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER30
A27QFILTER30
(Optional)
30° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER40
A27QFILTER40
(Optional)
40° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER60
A27QFILTER60
(Optional)
60° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER80
A27QFILTER80
(Optional)
80° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER1090
A27QFILTER1090
(Optional)
10°X90° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER1060
A27QFILTER1060
(Optional)
10°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER3060
A27QFILTER3060
(Optional)
30°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
S27QLENS10
S27QLENS10
(Optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(Included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(Optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(Optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QBD
S27QBD
(Optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR27Q,ARCPOD27Q
A27QSNOOT
A27QSNOOT
(Optional)
Snoot for ARCPOD27Q
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod27q_A4_DATASHEET_(EN).pdf400KB
Letter datasheetArcpod27q_A4_DATASHEET_(IT).pdf357KB
Letter datasheetArcpod27q_LETTER_DATASHEET_(EN).pdf401KB
Tender SpecificationArcpod27q_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartArcpod27q_DMX_CHARTS.pdf56KB
ARCPOD27Q Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_arcpod27q_5ch.hedDownload
prolights_arcpod27q_7ch.hedDownload
prolights_arcpod27q_10ch.hedDownload
prolights_arcpod27q_13ch.hedDownload
ARCPOD27Q Firmware rev. 3.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_arcpod27q_5ch.hedDownload
prolights_arcpod27q_7ch.hedDownload
prolights_arcpod27q_10ch.hedDownload
prolights_arcpod27q_13ch.hedDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcpod27q_3D.rfa464KB
3D SKPArcpod27q_3D.skp821KB
2DARCPOD27Q_2D.zip1MB
3DArcpod27q_CAD_3D.dwg552KB
2D cad symbolsArcpod27q_CAD_2DSYMBOLS.dwg23KB
Technical drawingARCPOD27Q_TECHNICAL DRAWINGS.zip264KB
VectorWorksVECTORWORKS_SYMBOLS.vwx217KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.7 STABLE 23/12/2024 New Function:
  • Added "DMX Fault" section in Advanced menu. Now it is possible to choose the behavior of the device in case of DMX signal loss between Hold (default value), Blackout, Stand Alone, Emergency.
  • Added Dimmer Speed Off (settable via RDM).
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Improved RDM compliance.
Fixed Bugs:
  • In some DMX modes, changing the Dimmer DMX values when the strobe is active, the light source stops the strobe and the source always remains on.
  • Switching from Strobe@X% to Strobe@open, the light source turns on after a few moments.
  • Fixture produces jumps in light intensity when the Dimmer value is changed from 0 to 255 dmx value in a few seconds.
Note:
Firmware for Hardware revision: 2.0 - To check revision please refer to serial number. Units with hardware revision 2.0 are with serial number starting from xxxxx0519xxx.		 Rev. 2.0
2.6 STABLE 12/05/2023 Improvements:
  • Jump prediction added to Red and Blue channel in 17 DMX mode.
  • Jump prediction added to Green and White channel in 10 DMX mode.
  • Improved CCT preset accuracy in 10 DMX mode.

Fixed bugs:
  • In 17 DMX mode, when strobe@open the fixture turns on the light source with a fade.
Note:
Firmware for Hardware revision: 1.0 - To check revision please refer to serial number. Units with hardware revision 1.0 are with serial number before of xxxxx0519xxx.		 Rev. 1
