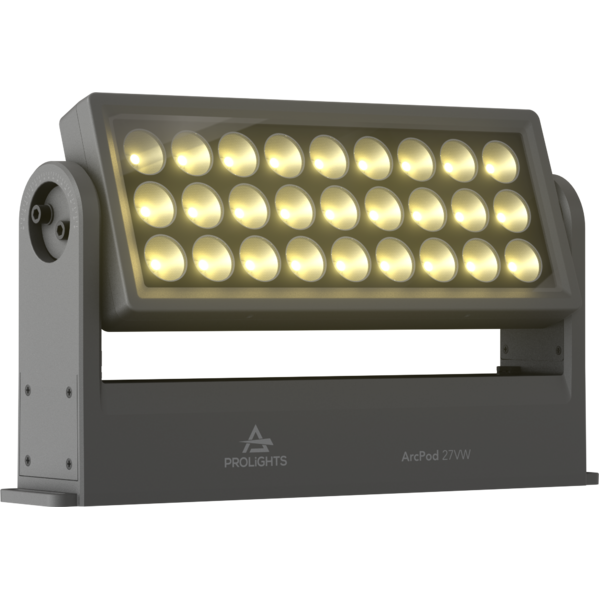

ArcPod 27VW

ORDER CODE: ARCPOD27VW

27x10W VW outdoor IP66 LED wash light for exterior installations

ArcPod 27VW is a compact high-power exterior wash light featuring an outstanding brightness of 26'000 lumens and a high quality white reproduction across CCT. It is equipped with 27x10W VW LEDs, delivering a limitless reproduction of whites. ArcPod 27VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27VW an incredibly flexible and versatile device for any outdoor install.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 27x10W VW LEDs
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless
See variants

PHOTO GALLERY

ArcPod 27VW
ArcPod 27VW
ArcPod 27VW
ArcPod 27VW

Technical specifications

LIGHT SOURCE
  • Source: 27x10W Warm White + Cold White LEDs
  • Luminous flux: (15°) 16'036 lm; (15°+20°) 14'121 lm; (15°+30°) 13'204 lm; (15°+40°) 14'030 lm; (15°+60°) 13'811 lm; (15°+80°) 12'534 lm; (15°+10°x60°) 26'122 lm; (15°+30°x60°) 16'195 @full
  • Lux: (15°) 13'390 lx; (15°+20°) 2'353 lx; (15°+30°) 1'415 lx: (15°+40°) 743 lx; (15°+60°) 492 lx; (15°+80°) 331 lx; (15°+10°x60°) 1'989 lx; (15°+30°x60°) 963lx @5 m full
  • CRI: 81,9 @ WW; 84 @ CW; 86,7 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Additional optics: see available accessories
  • Other: barn doors not included
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 3 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11 / 11channel
  • Pixel control: up to 3 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 6 units on a single power line
  • Power factor: 0,98
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
