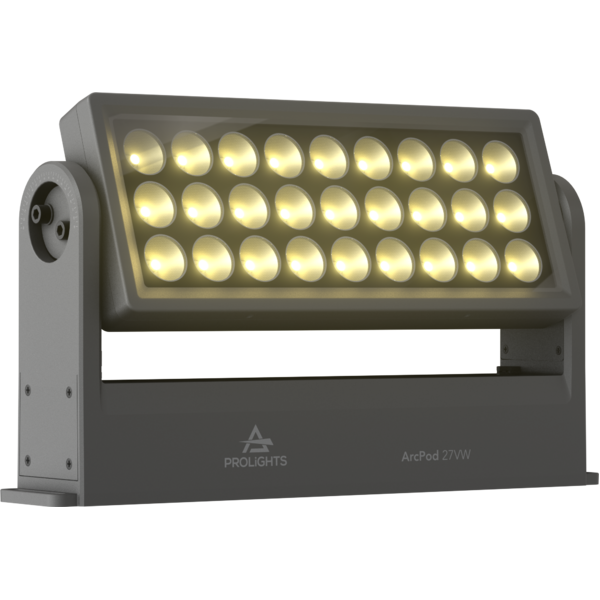

ArcPod 27VW

27x10W VW outdoor IP66 LED wash light for exterior installations

ArcPod 27VW is a compact high-power exterior wash light featuring an outstanding brightness of 26'000 lumens and a high quality white reproduction across CCT. It is equipped with 27x10W VW LEDs, delivering a limitless reproduction of whites. ArcPod 27VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27VW an incredibly flexible and versatile device for any outdoor install.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 27x10W VW LEDs
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 27x10W Warm White + Cold White LEDs
  • Luminous flux: (15°) 16'036 lm; (15°+20°) 14'121 lm; (15°+30°) 13'204 lm; (15°+40°) 14'030 lm; (15°+60°) 13'811 lm; (15°+80°) 12'534 lm; (15°+10°x60°) 26'122 lm; (15°+30°x60°) 16'195 @Full
  • Lux: (15°) 13'390 lx; (15°+20°) 2'353 lx; (15°+30°) 1'415 lx: (15°+40°) 743 lx; (15°+60°) 492 lx; (15°+80°) 331 lx; (15°+10°x60°) 1'989 lx; (15°+30°x60°) 963lx @5 m full
  • CRI: 81,9 @ WW; 84 @ CW; 86,7 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Additional optics: see available accessories
  • Other: barn doors not included
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 3 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11 / 11channel
  • Pixel control: up to 3 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 6 units on a single power line
  • Power factor: 0,98
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Painting
ARCPOD27VW
ARCPOD27VW
Standard

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities
