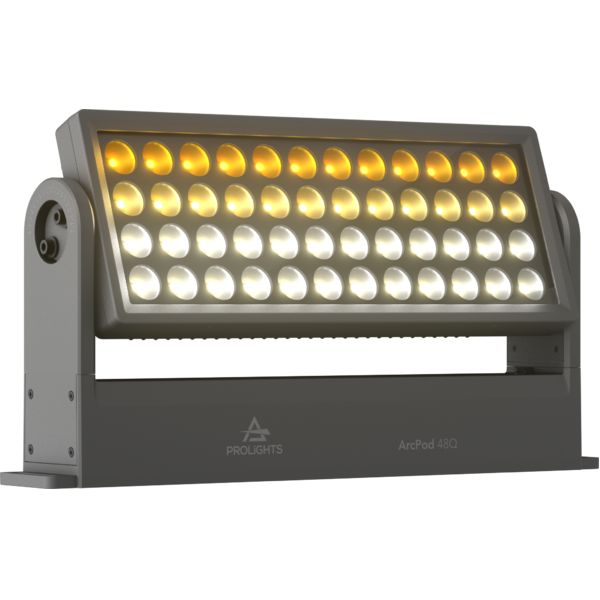

ArcPod 48Q

ORDER CODE: ARCPOD48Q

48x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

5 YEARS WARRANTY

Main features:

  • 48x10W RGBW / FC LEDs delivering 23'000 lumens
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless
See variants

PHOTO GALLERY

ArcPod 48Q
ArcPod 48Q
ArcPod 48Q
ArcPod 48Q

Technical specifications

LIGHT SOURCE
  • Source: 48x10W RGBW / FC LEDs
  • Luminous flux: (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408 @full
  • Lux: (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx @3 m full
  • Lux: (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 27°
  • Additional optics: 10° - 25° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 4 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10 / 17 / 22channel
  • Pixel control: up to 4 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 540W
  • Output (at 230V): 4 units on a single power line
  • Power factor: 0,95
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 584x304x93mm / 22.99''x11.97''x3.66''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>CRMXBox</b> IP
CRMXBox IP
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A48QFILTER20
A48QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER30
A48QFILTER30
(optional)
30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER40
A48QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER60
A48QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER80
A48QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1090
A48QFILTER1090
(optional)
10°x90° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1060
A48QFILTER1060
(optional)
10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER3060
A48QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QBD
S48QBD
(optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod48q_A4_DATASHEET_(EN).pdf389KB
Letter datasheetArcpod48q_A4_DATASHEET_(IT).pdf354KB
Letter datasheetArcpod48q_LETTER_DATASHEET_(EN).pdf387KB
Tender SpecificationArcpod48q_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartArcpod48q_DMX_CHARTS.pdf54KB

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcpod48q_3D.rfa448KB
3D SKPArcpod48q_3D.skp1MB
2DArcpod48q_CAD_2D.dwg1MB
3DArcpod48q_CAD_3D.dwg593KB
2D cad symbolsArcpod48q_CAD_2DSYMBOLS.dwg22KB
Technical drawingArcpod48q_TECHNICAL_DRAWING.pdf124KB
VectorWorksVECTORWORKS_SYMBOLS.vwx204KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 19/07/2021 New functions:
  • Added dimmer curves.
Improvements:
  • Improved dimming functionality.
  • Improved color management.

Info Request
