ArcShine 6

6x8W RGBW/FC outdoor IP66 linear fixture with pixel control

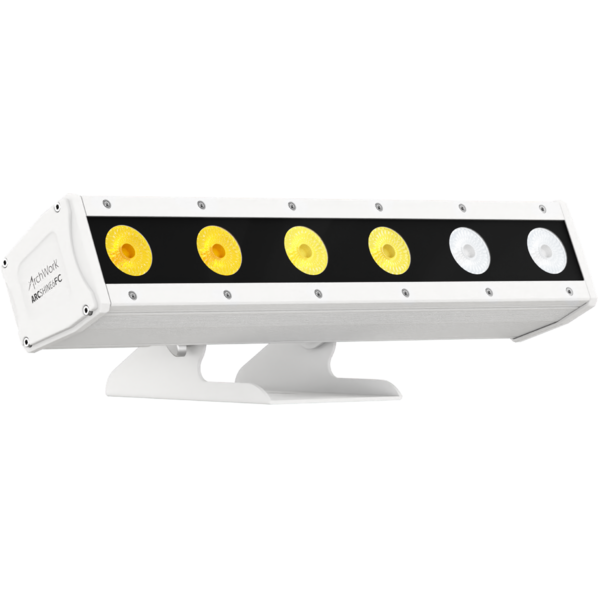

ArcShine 6 is a linear wall washer of 50 cm with 6x8W RGBW/FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ArcShine 6 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.

Main features:

  • 6x8W RGBW/FC LEDs with pixel control
  • Slim profile and fanless
  • IP66 for outdoor installs

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 6x8W RGBW / FC LEDs
  • Luminous flux: 1'621 @Full
  • Lux: (16°) 704 lx - (21°) 387 lx - (42°) 95lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 16,4°
  • Field angle: 28,3°
  • Additional optics: 25° - 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10 / 24 / 29channel
  • Pixel control: pixel2pixel control
  • Display: touch - sensitive LED display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 52,5W
  • Output (at 230V): 18 units on a single power line
  • Power factor: > 0.93
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Cooling: pressure and temperature balance through GORE membrane vents
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN connector
  • Power connection: moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 495x200x188mm / 19.49''x7.87''x7.4''
  • Weight: 5,33kg / 11.75lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Color Synthesis
ARCSHINE6FC
ARCSHINE6FC
Full Color
ARCSHINE6TU
ARCSHINE6TU (DISCONTINUED)
Tungsten

Accessories & Related Products

<b>CRMXBox</b> IP67
CRMXBox IP67
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
ARCLUMIL25D42
ARCLUMIL25D42
(Optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(Optional)
Optic lens 45°, D.42mm
AWEXAC1
AWEXAC1
(Optional)
AWEXDC1
AWEXDC1
(Optional)
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcshine6_A4_DATASHEET_(IT).pdf(06/05/2021)281KB
Letter datasheetArcshine6_A4_DATASHEET_(EN).pdf(03/09/2021)272KB

User manual

File name File size Download
User manualArcshine6fc_USER_MANUAL_ITEN.pdf(08/06/2017)2MB

DMX chart & personalities

File name File size Download
DMX chartArcshine6_DMX_CHARTS.pdf(11/08/2014)1MB

ARCSHINE6FC Firmware rev. 1.1

manufacturer fixture library (Link) Link
prolights_arcshine6.d4Download
manufacturer fixture library (Link) Link
prolights_arcshine6fc_4ch.hedDownload
prolights_arcshine6fc_6ch.hedDownload
prolights_arcshine6fc_10ch.hedDownload
prolights_arcshine6fc_24ch.hedDownload
prolights_arcshine6fc_29ch.hedDownload
manufacturer fixture library (Link) Link
arcshine6_4ch.fdfDownload
arcshine6_6ch.fdfDownload
arcshine6_10ch.fdfDownload
arcshine6_24ch.fdfDownload
arcshine6_29ch.fdfDownload
manufacturer fixture library (Link) Link
arcshine 6 fc.zipDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcshine6fc_3D.rfa(22/04/2021)484KB
3D SKPArcshine6_3D.skp(23/07/2021)354KB
2DArcshine6_CAD_2D.dwg(26/02/2021)1MB
3DArcshine6_CAD_3D.dwg(16/07/2021)528KB
2D cad symbolsArcshine6fc_CAD_2DSYMBOLS.dwg(09/03/2020)20KB
Technical drawingArcshine6_TECHNICAL_DRAWING.pdf(26/02/2021)118KB
VectorWorksARCSHINE6_SYMBOLS.zip685KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
