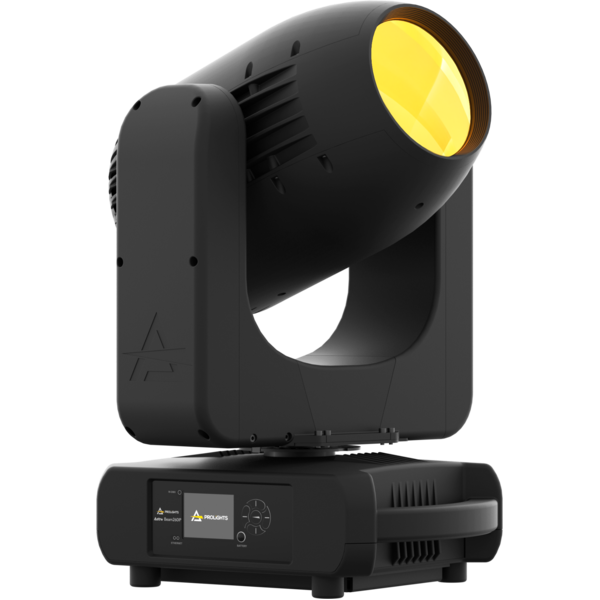

Astra Beam260IP

ORDER CODE: ASTRABEAM260IP

IP65 moving beam light with a 260W PRO long life lamp (6.000 hours)

Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.

Main features:

  • IP65 design, compact size and fast movements
  • 260W PRO Osram SIRIUS HRI long life (6.000 hours) lamp
  • Two overlapping prism to create spectacular aerial effects
See variants

PHOTO GALLERY

Astra Beam260IP
Astra Beam260IP
Astra Beam260IP
Astra Beam260IP

Technical specifications

LIGHT SOURCE
  • Source: 260W PRO OSRAM SIRIUS HRI Lamp
  • CCT: 7.800
  • Lux: 1'984'000lx @5 m
  • Source life expectancy: 6.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 140mm / 5.51''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 10 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Fixed gobos: 15 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8-f with bi-directional rotation, indexing
  • Linear prism: 6-f with bi-directional rotation, indexing
  • Frost: linear 0-100%
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 17channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
BODY
  • Pan: 540°
  • Tilt: 230°
  • Pan/Tilt resolution: 16bit
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Feedback: automatic repositioning after accidental movement
  • Body: Weatherproof IP65 construction
  • Body colour: RAL 9004
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 345W
  • Output (at 230V): 7 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: filtered forced-air with low-noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 385x603x271mm / 15.16''x23.74''x10.67''
  • Weight: 28,6kg / 63.05lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

OSIPPLUS
OSIPPLUS
(Optional)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLASTRAB260IP
FCLASTRAB260IP
(Optional)
Flight case for 3 pcs of ASTRABEAM260IP
OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrabeam260ip_LETTER_DATASHEET_(EN).pdf(26/08/2025)2MB
Letter datasheetAstrabeam260ip_A4_DATASHEET_(EN).pdf(26/08/2025)2MB
Letter datasheetAstrabeam260ip_A4_DATASHEET(IT).pdf(26/08/2025)2MB
Tender SpecificationAstrabeam260ip_TENDER_SPECIFICATION.pdf(10/02/2021)4MB

User manual

File name File size Download
User manualAstrabeam260ip_USER_MANUAL_EN.pdf(28/06/2023)11MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualAstrabeam260ip_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartAstrabeam260ip_DMX_CHARTS.pdf(23/06/2023)180KB

ASTRABEAM260IP Firmware rev. 1.0.23

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
astra beam 260ip.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_cb@astrabeam_260ip@standard_cb.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstrabeam260ip_3D.skp(09/02/2022)700KB
3D RFAAstrabeam260ip_3D.rfa(02/04/2021)784KB
2DAstrabeam260ip_CAD_2D.dwg(23/02/2021)5MB
3DAstrabeam260ip_CAD_3D.dwg(09/02/2022)535KB
2D cad symbolsAstrabeam260ip_CAD_2DSYMBOLS.dwg(16/02/2021)81KB
Technical drawingAstrabeam260ip_TECHNICAL_DRAWING.pdf(23/02/2021)286KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(02/03/2023)463KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Color DocumentAstrabeam260ip_COLOR.pdf(28/04/2021)82KB
Gobos DocumentAstrabeam260ip_GOBOS.pdf(26/11/2021)103KB
Noise ReportAstrabeam260ip_NOISE_REPORT.pdf(02/02/2023)378KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.23 STABLE 26/10/2022 Improvements:
  • Improved internal bus communication.
