ASTRAHYB260IP
PROLIGHTS

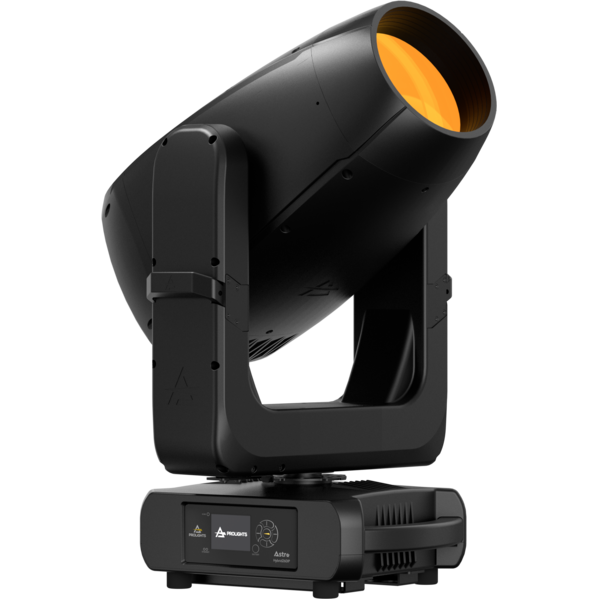

Astra Hybrid260IP

ORDER CODE: ASTRAHYB260IP

IP65 hybrid moving head, with 260W white phosphor Laser source and zoom 0.6° - 52°

The Astra Hybrid260IP is an advanced hybrid moving luminaire equipped with a powerful 260W Phosphor Laser source, designed to excel in both indoor and outdoor environments thanks to its IP65-rated construction.

A groundbreaking 165 mm front lens channels its laser energy into a sharply focused 0.6° beam, achieving an extraordinary 420,000 lux at 20 meters - far exceeding the output of traditional discharge 480W hybrids. With a 100× zoom range spanning from 0.6° to 52°, this fixture delivers everything from tight aerial beams to expansive stage spot, offering unmatched versatility for any show or event.

Beyond its formidable beam and zoom capabilities, the Astra Hybrid260IP boasts infinite Pan and Tilt rotation for fluid, dynamic movement effects and a comprehensive color system that includes linear CMY and CTO mixing plus 27 color filters on dedicated wheels. Add 12 rotating gobos, 29 static gobos, 8 prisms on overlapping wheels, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless - whether illuminating mid-air or crafting intricate projected textures.

Despite its powerful performance and extensive feature set, the fixture remains surprisingly lightweight at just 34 kg, thanks to its durable magnesium alloy housing, while pull-out handles integrated into the arm simplify handling and rigging. This rugged design thrives in the challenging conditions of large arenas, outdoor festivals, touring stages, and permanent installations alike, positioning the Astra Hybrid260IP as a true all-weather champion that professional rental houses and production teams can rely on for robust, high-impact lighting solutions.

Main features:

  • IP65 hybrid moving light equipped with a 260W white phosphor Laser source
  • Linear zoom ranging from 0.6° to 52°
  • Pan&Tilt infinity rotation 360°, CMY and CTO, 27 color filters, 12 rotating and 29 fix gobos, 8 prisms, 2 frost

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 260W Phosphor Laser source
  • Source CCT: 7'000K
  • Lux: 417'219lx @20 m full
  • Source life expectancy: > 12.000 h
OPTICS
  • Zoom range: 0,6° - 52,7° motorised linear zoom
  • Lens diameter: 165mm / 6.5''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 16-bit
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 7.000 K
  • Colour wheel: open + 27 colour filters on two colour wheels
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer control
  • FX generator: prisms overlap for spectacular aerial effects
  • FX Wheel A: 8-f & 6-f circular prism / 6-f & 4-f linear prism / light frost, bi-directional rotation, indexing, interchangeable
  • FX Wheel B: 16-f & 6-f circular prism / 6-f & 4-f linear prism / heavy frost, bi-directional rotation, indexing, interchangeable
  • Frost: dual soft-edge and heavy with one interchangeable element
GOBOS
  • Rotating gobos: 12 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 8,4 mm - image: 5 mm - thickness: 0,5 mm
  • Fixed gobos: 29 fixed gobos + open
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 33 / 37ch
  • RDM: for remote addressing and parameter configuration
  • Display: LCD high resolution colour display with autoflip
MOVEMENT
  • Pan: 540° - 16-bit resolution with 360° endless rotation
  • Tilt: 270° - 16-bit resolution with 360° endless rotation
  • Position feedback: automatic repositioning after external movement
  • Pan / tilt lock: for transport and maintenance
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 50000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: IP65 Seetronic Ethernet IP in/out connectors
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 430W
  • Output (at 230V): 6 units on a single power line
  • Standby power: 90 W
  • Power factor: > 0,96
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: heat pipe with low-noise fan
  • Housing: Weatherproof IP65 construction with die-cast magnesium alloy
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 435x742x266mm / 17.13''x29.21''x10.47''
  • Weight: 34,5kg / 76.06lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
  • US FDA CDRH compliance: Certified and compliant with US FDA CDRH laser product requirements
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAH260IP
FCLASTRAH260IP
(Optional)
Flight case for 2 pcs of ASTRAHYB260IP

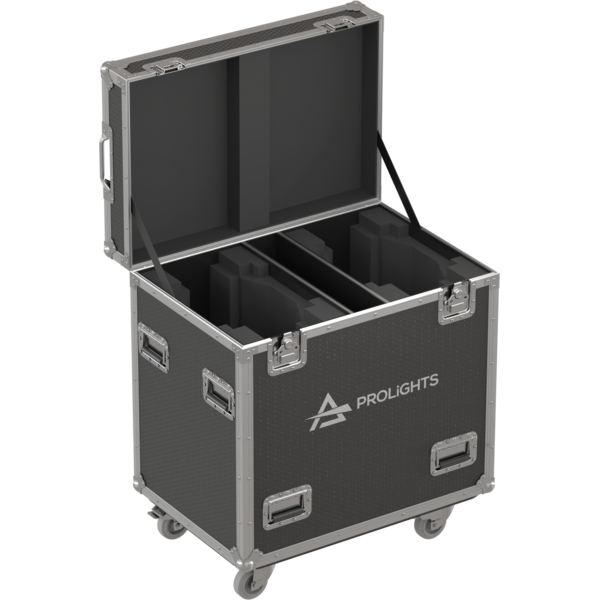

FCLASTRAH260IPTL
FCLASTRAH260IPTL
(Optional)
Flight case per contenere 2 pc ASTRAHYB260IP, top load version
OSIPPLUS
OSIPPLUS
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR1235A
RSR1235A
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, silver
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrahyb260ip_LETTER_DATASHEET_(EN).pdf(08/01/2026)597KB
Letter datasheetAstrahyb260ip_A4_DATASHEET_(ITA).pdf(08/01/2026)608KB
Letter datasheetAstrahyb260ip_A4_DATASHEET_(EN).pdf(08/01/2026)605KB
Tender SpecificationAstrahyb260ip_TENDER_SPECIFICATION.pdf(21/02/2025)260KB

User manual

File name File size Download
User manualAstrahyb260ip_USER_MANUAL_EN.pdf(16/03/2026)10MB
User manualAstrahyb260ip_General_Safety_Information.pdf(16/03/2026)3MB

DMX chart & personalities

File name File size Download
DMX chartAstrahyb260ip_DMX_CHARTS.pdf(07/05/2025)2MB

ASTRAHYB260IP Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstrahyb260ip_3D.skp(30/01/2025)3MB
2DAstrahyb260ip_CAD_2D.dwg(08/01/2025)5MB
3DAstrahyb260ip_CAD_3D.dwg(30/01/2025)1MB
2D cad symbolsAstrahyb260ip_CAD_2DSYMBOLS.dwg(02/05/2025)67KB
Technical drawingAstrahyb260ip_TECHNICAL_DRAWING.pdf(08/01/2025)331KB
VectorWorksASTRAHYB20IP_SYMBOLS.vwx(13/05/2025)819KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download
Color DocumentAstrahyb260ip_COLOR.pdf(28/01/2025)63KB
Gobos DocumentAstrahyb260ip_GOBOS.pdf(20/02/2025)110KB
Gobos DocumentAstrahyb260ip_GOBOS.pdf(20/02/2025)239KB
Noise ReportAstrahyb260ip_NOISE_REPORT.pdf(13/03/2025)622KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 30/10/2025 Improvement:
  • Improved CMY and Color Wheel insertion.
Rev. 1.0
