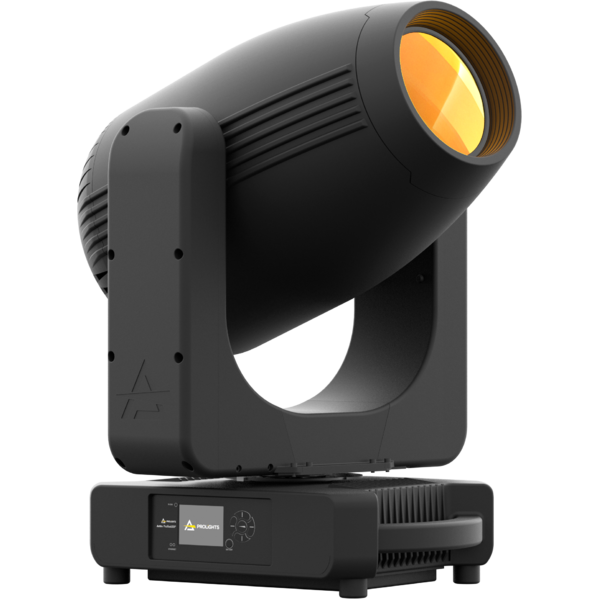

Astra Profile600IP

ORDER CODE: ASTRAPROFILE600IP

IP65 LED Moving Profile, with a 600W White source

The Astra Profile600IP is a bright, waterproofed (IP65) LED profile moving light, designed for any large-scale touring applications and exterior installations.
Despite its waterproof exterior, this unit is tremendously bright and offers a superior evenness compared to other fixtures in the same class.
Its light source delivers a pure white light emission at 6,500K, reaching 21,200 lumens whilst achieving a flat field beam projection.
The Astra Profile600IP's optical system moves linearly from 7° to 62°, and it's equipped with a brand-new 600W LED source
The extensive feature set of the Astra Profile600IP includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filter, prism, and an iris.

Main features:

  • IP65 LED Moving Profile equipped with a 600W long life LED source (6,500K)
  • 7° to 62° linear zoom
  • 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, one frost filter, prism and iris
See variants

PHOTO GALLERY

Astra Profile600IP
Astra Profile600IP
Astra Profile600IP
Astra Profile600IP
Astra Profile600IP

Technical specifications

LIGHT SOURCE
  • Source: 600W White LED
  • CCT: 6.500K
  • Luminous flux: (7°) 14'877 lm - (62°) 21'200
  • Lux: (7°) 57'569 lx - (62°) 1'144lx @5 m
  • CRI: > 70 (CCT 5.600K and CRI > 90 with high CRI filter on color wheel)
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom: 7° - 62° motorised linear zoom
  • Lens diameter: 150mm / 5.91''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.500 K
  • Colour wheel: open + 5,600K high CRI filter + 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 29,9 mm - image: 22 mm - thickness: 1,1 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 29 / 39 / 54channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 800W
  • Standby power: 132 W
  • Power factor: >0,97
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 454x730x334mm / 17.87''x28.74''x13.15''
  • Weight: 40kg / 88.18lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAH420IP
FCLASTRAH420IP
(facoltativo)
Flight case for 2 pcs of ASTRAHYB420 / ASTRAHYB420IP / ASTRAPROFILE600IP
OSIP
OSIP
(incluso)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M10 hole
OSIPD13
OSIPD13
(incluso)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(facoltativo)
Portable vacuum and pressure tester for ProLights IP fixtures
C6002B
C6002B
(facoltativo)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0670B
RSR0670B
(facoltativo)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(facoltativo)
Single Universe DMX transceiver with Bluetooth
UPBOX2P5
UPBOX2P5
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstraprofile600ip_A4_DATASHEET_(EN).pdf624KB
Tender SpecificationAstraprofile600ip_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartAstraprofile600ip_DMX_CHARTS.pdf812KB
ASTRAPROFILE600IP Firmware rev. 1.0.13
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstraprofile600ip_3D.skp481KB
2DAstraprofile600ip_CAD_2D.dwg14MB
2D cad symbolsAstraprofile600ip_CAD_2DSYMBOLS.dwg57KB
3DAstraprofile600ip_CAD_3D.dwg545KB
Technical drawingAstraprofile600ip_TECHNICAL_DRAWING.pdf3MB
VectorWorksVECTORWORKS_SYMBOLS.vwx894KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.13 STABLE 28/02/2024 Fixed Bugs:
  • Performing a Reboot while executing a movement CUE List, the PAN does not work when the device is restarted.
  • The light source is not accessed until you release the CUE LIST. It is therefore necessary to restart the CUE LIST.
  • Performing a Reboot, the light source turns on before the device reaches the Pan and Tilt position described by the CUE List.
