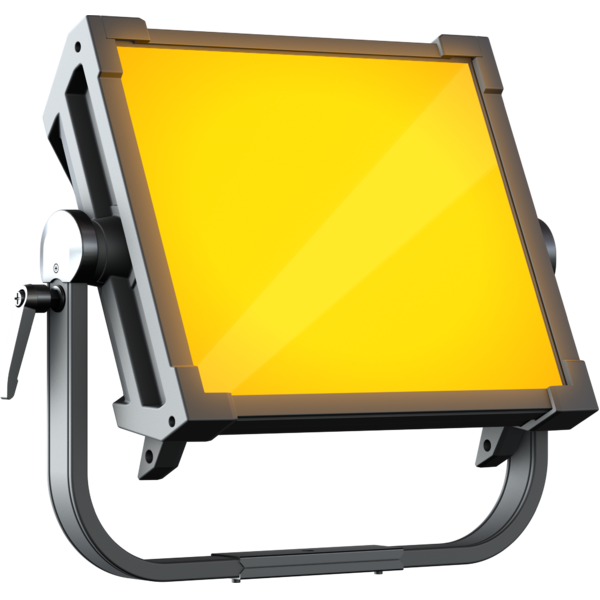

EclPanel TWCJr

ORDER CODE: ECLPANELTWCJR

370W Tunable White and colourful LED soft light with pixels and lighting effects (driven @ 220W)

EclPanel TWCJr, is the compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.
The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.
The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.
Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.
The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.

SPEKTRA

Main features:

  • 370W RGB + Warm White LED source (driven @ 220W)
  • CRI > 94; R9 > 88,8; TLCI > 92
  • 4 section pixel control and built-in lighting effects for cinema applications
  • Silent operation with multiple fan modes
  • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
See variants

PHOTO GALLERY

EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr
EclPanel TWCJr

Technical specifications

LIGHT SOURCE
  • Source: 370W RGB + Warm White LEDs (driven @ 220W)
  • Luminous flux: 17'109 @4.000 K with LD filter
  • Lux: @4000K, 265lx @5 m
  • CRI: 94,2 @3.200 K; 95,4 @5.600 K
  • R9: 93,3 @3.200 K; 87,4 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 158°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, W-DMX, rotatory knob
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 4 section control
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 230W
  • Output (at 230V): 12 units on a single power line
  • Power factor: >0,97
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • Dimensions (WxHxD): 529x432x144mm / 20.83''x17.01''x5.67''
  • Dimensions with PO system (WxHxD): 546x556x144mm / 21.5''x21.89''x5.67''
  • Weight: 10,5kg / 23.15lbs
  • Weight with PO system: 11,8kg / 26.01lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
FCLPANELJR4U
FCLPANELJR4U
(Optional)
Flight case for 4 pcs of ECLPANELTWCJR
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
FCLPANELJR1U
FCLPANELJR1U
(Optional)
Flight case for 1 pc of ECLPANELTWCJR
EPTWCJRRC
EPTWCJRRC
(Optional)
Rain Cover for ECLPANELTWCJR
ECLPANELJRPOYO
ECLPANELJRPOYO
(Optional)
Pole operated aluminium yoke bracket for ECLPANELTWCJR
EPTWCJRBAG1U
EPTWCJRBAG1U
(Optional)
Bag for 1 pc of ECLPANELTWCJR
EPTWCBRKM
EPTWCBRKM
(Optional)
Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCBHEAD
EPTWCBHEAD
(Optional)
Ball head joint for center mount bracket EPTWCBRK series
EPTWCJRFILTERINT
EPTWCJRFILTERINT
(Optional)
Front intensified diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERHD
EPTWCJRFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLPANELTWCJR
EPTWCJRFILTERMD
EPTWCJRFILTERMD
(Included)
Front medium diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERLD
EPTWCJRFILTERLD
(Optional)
Front low diffusion filter (more output) for ECLPANELTWCJR
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
EPTWCJREC30
EPTWCJREC30
(Optional)
30 degree egg crate for ECLPANELTWCJR
EPTWCJREC60
EPTWCJREC60
(Optional)
60 degree egg crate for ECLPANELTWCJR
EPTWCJREC4C
EPTWCJREC4C
(Optional)
4 chamber egg crate for ECLPANELTWCJR
EPTWCJRBD
EPTWCJRBD
(Optional)
Barn door with 4 directional flaps to adjust the light beam
EPTWCJRSB11
EPTWCJRSB11
(Optional)
SnapBag 1x1 for ECLPANELTWCJR by DoP choice
EPTWCJRSG4SB1140
EPTWCJRSG4SB1140
(Optional)
40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice
EPTWCJRSG1140
EPTWCJRSG1140
(Optional)
40° SnapGrid, 1x1 for ECLPANELTWCJR by DoP choice
EPSREM
EPSREM
(Optional)
Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice
EPSBRL3
EPSBRL3
(Optional)
Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Carry Bag
EPSBRL3C4
EPSBRL3C4
(Optional)
Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper
EPSBRM
EPSBRM
(Optional)
SnapBag Medium to be mounted on Rabbit Ears by DoP.
EPSGCM40
EPSGCM40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM)
EPSBRO3
EPSBRO3
(Optional)
Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP.
EPSGC3W40
EPSGC3W40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3)
EPSBRO5
EPSBRO5
(Optional)
Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP.
EPSGC5W40
EPSGC5W40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5)
EPSBRO7
EPSBRO7
(Optional)
Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.
EPSGC7W40
EPSGC7W40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7)
EPSBCMNSM
EPSBCMNSM
(Optional)
Diffusion MAGIC cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSF
EPSBCMNSF
(Optional)
Diffusion FULL Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSH
EPSBCMNSH
(Optional)
Diffusion HALF Grid cloth for Snapbag 60x60cm(EPTWCJRSB11) by DoP choice
EPSBCMNSQ
EPSBCMNSQ
(Optional)
Diffusion QUARTER Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSQFM
EPSBCMNSQFM
(Optional)
Diff. cloth SET (1/4, 1/1,MAGIC) for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPTWCJRLANT11
EPTWCJRLANT11
(Optional)
Snapbag Lantern for ECLPANELTWCJR by DoP. Incl. Lantern, Backcovers, Carry Bag
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpaneltwcjr_LETTER_DATASHEET_(EN).pdf(27/09/2023)2MB
Letter datasheetEclpaneltwcjr_A4_DATASHEET_(EN).pdf(27/09/2023)2MB
Letter datasheetEclpaneltwcjr_LETTER_DATASHEET_(EN).pdf(27/08/2021)297KB
Letter datasheetEclpaneltwcjr_A4_DATASHEET_(ITA).pdf(27/08/2021)2MB
Tender SpecificationEclpaneltwcjr_TENDER_SPECIFICATION.pdf(26/05/2022)5MB

User manual

File name File size Download
User manualEclpaneltwcjr_USER_MANUAL_EN.pdf(31/01/2023)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualEclpaneltwcjr_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartEclpaneltwcjr_DMX_CHARTS.pdf(08/07/2022)620KB

ECLPANELTWCJR Firmware rev. 2.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclpaneltwcjr_1chtheater.hedDownload
prolights_eclpaneltwcjr_2hpixels.hedDownload
prolights_eclpaneltwcjr_2vpixels.hedDownload
prolights_eclpaneltwcjr_4chtheater.hedDownload
prolights_eclpaneltwcjr_4chtour.hedDownload
prolights_eclpaneltwcjr_4pixels.hedDownload
prolights_eclpaneltwcjr_5ch1theater.hedDownload
prolights_eclpaneltwcjr_5ch2theater.hedDownload
prolights_eclpaneltwcjr_6chtheater.hedDownload
prolights_eclpaneltwcjr_6chtour.hedDownload
prolights_eclpaneltwcjr_10chtheater.hedDownload
prolights_eclpaneltwcjr_10chtour.hedDownload
prolights_eclpaneltwcjr_11chtour.hedDownload
prolights_eclpaneltwcjr_15chtheater.hedDownload
prolights_eclpaneltwcjr_15chtour.hedDownload
prolights_eclpaneltwcjr_17chtheater.hedDownload
manufacturer fixture library (Link) Link
eclpaneltwcjr_pixel1_7ch.fdfDownload
eclpaneltwcjr_pixel2h_11ch.fdfDownload
eclpaneltwcjr_pixel2v_11ch.fdfDownload
eclpaneltwcjr_pixel4_19ch.fdfDownload
eclpaneltwcjr_theatre_1ch.fdfDownload
eclpaneltwcjr_theatre_2ch.fdfDownload
eclpaneltwcjr_theatre_4ch.fdfDownload
eclpaneltwcjr_theatre_5ch1.fdfDownload
eclpaneltwcjr_theatre_5ch2.fdfDownload
eclpaneltwcjr_theatre_6ch.fdfDownload
eclpaneltwcjr_theatre_10ch.fdfDownload
eclpaneltwcjr_theatre_17ch.fdfDownload
eclpaneltwcjr_theatre_21ch.fdfDownload
eclpaneltwcjr_tour_4ch.fdfDownload
eclpaneltwcjr_tour_6ch.fdfDownload
eclpaneltwcjr_tour_10ch.fdfDownload
eclpaneltwcjr_tour_11ch.fdfDownload
eclpaneltwcjr_tour_15ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
eclpaneltwcjr.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ecl panel twc jr 1 channel theatre.v3fDownload
ecl panel twc jr 1 pixel.v3fDownload
ecl panel twc jr 2 channel theatre.v3fDownload
ecl panel twc jr 2h pixel.v3fDownload
ecl panel twc jr 2v pixel.v3fDownload
ecl panel twc jr 4 channel theatre.v3fDownload
ecl panel twc jr 4 channel tour.v3fDownload
ecl panel twc jr 4 pixel.v3fDownload
ecl panel twc jr 5 channel 1 theatre.v3fDownload
ecl panel twc jr 5 channel 2 theatre.v3fDownload
ecl panel twc jr 6 channel theatre.v3fDownload
ecl panel twc jr 6 channel tour.v3fDownload
ecl panel twc jr 10 channel theatre.v3fDownload
ecl panel twc jr 10 channel tour.v3fDownload
ecl panel twc jr 11 channel tour.v3fDownload
ecl panel twc jr 15 channel theatre.v3fDownload
ecl panel twc jr 15 channel tour.v3fDownload
ecl panel twc jr 17 channel theatre.v3fDownload

ECLPANELTWCJR Firmware rev. 1.1

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclpaneltwcjr_1chtheater.hedDownload
prolights_eclpaneltwcjr_2hpixels.hedDownload
prolights_eclpaneltwcjr_2vpixels.hedDownload
prolights_eclpaneltwcjr_4chtheater.hedDownload
prolights_eclpaneltwcjr_4chtour.hedDownload
prolights_eclpaneltwcjr_4pixels.hedDownload
prolights_eclpaneltwcjr_5ch1theater.hedDownload
prolights_eclpaneltwcjr_5ch2theater.hedDownload
prolights_eclpaneltwcjr_6chtheater.hedDownload
prolights_eclpaneltwcjr_6chtour.hedDownload
prolights_eclpaneltwcjr_10chtheater.hedDownload
prolights_eclpaneltwcjr_10chtour.hedDownload
prolights_eclpaneltwcjr_11chtour.hedDownload
prolights_eclpaneltwcjr_15chtheater.hedDownload
prolights_eclpaneltwcjr_15chtour.hedDownload
prolights_eclpaneltwcjr_17chtheater.hedDownload
eclpaneltwcjr_pixel1_7ch.fdfDownload
eclpaneltwcjr_pixel2h_11ch.fdfDownload
eclpaneltwcjr_pixel2v_11ch.fdfDownload
eclpaneltwcjr_pixel4_19ch.fdfDownload
eclpaneltwcjr_theatre_1ch.fdfDownload
eclpaneltwcjr_theatre_2ch.fdfDownload
eclpaneltwcjr_theatre_4ch.fdfDownload
eclpaneltwcjr_theatre_5ch1.fdfDownload
eclpaneltwcjr_theatre_5ch2.fdfDownload
eclpaneltwcjr_theatre_6ch.fdfDownload
eclpaneltwcjr_theatre_10ch.fdfDownload
eclpaneltwcjr_theatre_17ch.fdfDownload
eclpaneltwcjr_theatre_21ch.fdfDownload
eclpaneltwcjr_tour_4ch.fdfDownload
eclpaneltwcjr_tour_6ch.fdfDownload
eclpaneltwcjr_tour_10ch.fdfDownload
eclpaneltwcjr_tour_11ch.fdfDownload
eclpaneltwcjr_tour_15ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@rev 1.6.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclpaneltwcjr@1ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@1pixel@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@2v_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@4h_pixels@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-1_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@5ch-2_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@6ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@10ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@11ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_theatre@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@15ch_tour@rev_1.6.xmlDownload
prolights@eclpaneltwcjr@17ch_theatre@rev_1.6.xmlDownload
eclpaneltwcjr.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ecl panel twc jr 1 channel theatre.v3fDownload
ecl panel twc jr 1 pixel.v3fDownload
ecl panel twc jr 2 channel theatre.v3fDownload
ecl panel twc jr 2h pixel.v3fDownload
ecl panel twc jr 2v pixel.v3fDownload
ecl panel twc jr 4 channel theatre.v3fDownload
ecl panel twc jr 4 channel tour.v3fDownload
ecl panel twc jr 4 pixel.v3fDownload
ecl panel twc jr 5 channel 1 theatre.v3fDownload
ecl panel twc jr 5 channel 2 theatre.v3fDownload
ecl panel twc jr 6 channel theatre.v3fDownload
ecl panel twc jr 6 channel tour.v3fDownload
ecl panel twc jr 10 channel theatre.v3fDownload
ecl panel twc jr 10 channel tour.v3fDownload
ecl panel twc jr 11 channel tour.v3fDownload
ecl panel twc jr 15 channel theatre.v3fDownload
ecl panel twc jr 15 channel tour.v3fDownload
ecl panel twc jr 17 channel theatre.v3fDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLPANELTWCJR_3D_REVIT.zip3MB
3D sketchupECLPANELTWCJR_3D_SKETCHUP.zip2MB
2DECLPANELTWCJR_2D.zip15MB
3DECLPANELTWCJR_3D.zip1MB
2D cad symbolsECLPANELTWCJR_2DSYMBOLS.zip146KB
Technical drawingECLPANELTWCJR_TECHNICAL DRAWINGS.zip659KB
VectorWorksECLPANELTWCJR_SYMBOLS.zip6MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclpaneltwcjr_NOISE_REPORT.pdf(09/12/2020)249KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.4 STABLE 05/08/2024 Improvement:
  • General firmware improvements
  • Improved power management and optimized LED performance
 Rev. 2.0
Rev. 3.0
Rev. 4.0
Rev. 5.0
Rev. 5.1
1.1 STABLE 22/12/2021 Firmware for Hardware revision: 1.0 - To check revision please refer to label on product.
Equivalent firmware version for Hardware revision >1.0: 2.2
Equivalent firmware version for ECLPANELTWC: 2.9 / 1.6
Equivalent firmware version for ECLPANELTWCJR4X1: 1.0
Equivalent firmware version for ECLPANELTWCM2X1: 1.0
New functions:
  • Added Dimmer End selector, possibility to have Snap or Fade at dimmer ends. Default for Standard: Fade , for Film: Snap
  • Added XY DMX Chart.
  • Added XY mode into Stand Alone mode.
  • Added Display value selector, possibility to show Raw DMX value or Percentage while using Stand Alone mode.
  • Added 21Ch Theater Mode.

Improvements:
  • Improved dimming at High Frequencies.
  • Improved dimming while using RGBW channels as dimmer.
  • Improved dimmer cut on Film DMX Charts.
 Rev. 1.0

Info Request

News

Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
Major Lighting Upgrade for St Hilda's Anglican School for Girls in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Anglican School for Girls in Western Australia
A major lighting upgrade has recently been completed at St Hilda's Anglican School for Girls' Joy Shepherd Performing Arts Centre in Western Australia . The new system includes 20 PROLIGHTS Jet Profile300LT fixtures, supplied and distributed by Show
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
A PROLIGHTS Light Show at Kënga Magjike 2025
December 30, 2025
A PROLIGHTS Light Show at Kënga Magjike 2025
Kënga Magjike , the long-running Albanian music competition created and hosted by Ardit Gjebrea and organised by Televizioni Klan, reached an important milestone with its 25th edition. On the occasion of this special edition, bringing together both
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
December 17, 2025
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
For the final concert of the 21st Viva Musica! festival in Bratislava, virtuoso mandolinist Avi Avital appeared with his new ensemble Between Worlds, presenting “Italy”: a programme dedicated to Italian music, with a particular focus on the traditions
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
December 15, 2025
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
PROLIGHTS launches the EclFresnel CT+XS , a compact 120W LED Fresnel designed to replace classic 300W tungsten units while delivering outstanding colour fidelity and silent operation for broadcast, theatre and corporate environments. The fixture outputs
Subscribe to our Newsletter
Loading...
