FS75LED
PROLIGHTS
discontinued

FS75LED

ORDER CODE: FS75LED

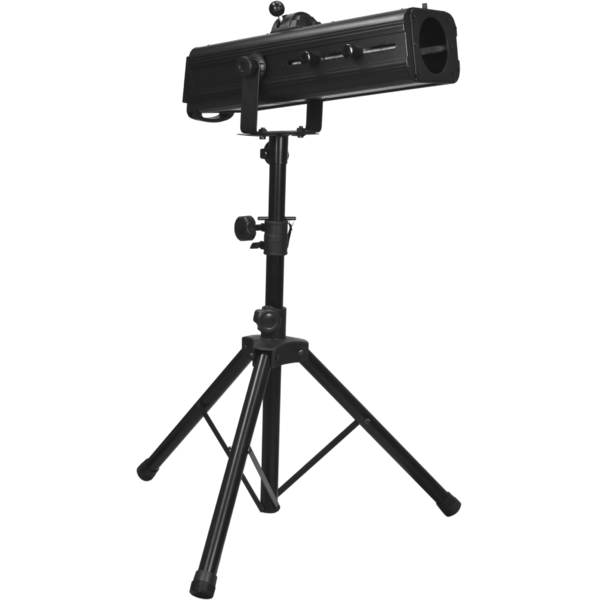

FS75LED is a compact and portable follow-spot conceived with LED light source (1x75W high-efficiency white LED). FS75LED has been designed for mid and small size events, granting to the users a wide function range as silent shutter, 16°-22° manual zoom, iris, linear dimming curve, gobo holder, color wheel and user friendly control panel.

Main features:

  • Light source: 1 x 75W high-efficiency white LED
  • >Zoom: 16° - 22° manual
  • >Compatible with home-made printed gobos on the transparency film
  • >Tripod stand included in the package

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1x75W White LED
  • CCT: 6500/7500
  • Lux: 25500lx @1 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 16 - 22° manual
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Gobo size: gobo Ø 23.7 mm - img Ø 21,3 mm - thickness 1mm
  • Iris: 5 - 100% manual
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 channel
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1-20 Hz, electronic
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
PHYSICAL
  • Cooling: passive cooling and fan-free
  • Signal connection: 3p IN/OUT
  • Power connection: IEC 10 A IN/OUT
  • Dimensions (WxHxD): 560x276x292mm / 22.05''x10.87''x11.5''
  • Weight: 6kg / 13.23lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualFs75led_USER_MANUAL_ITEN.pdf3MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
