GLOBE
TRIBEby TRIBE
discontinued

GLOBE

ORDER CODE: GLOBE

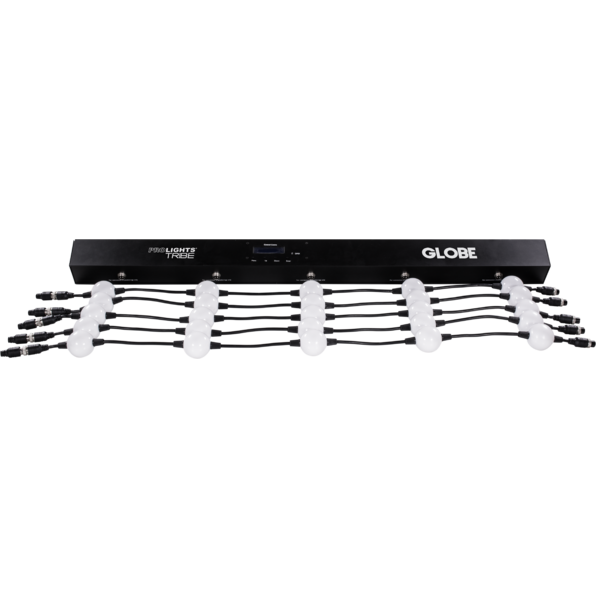

GLOBE is a flexible and innovative solution for the creation of scenography set with dynamic and graphics contents. GLOBE is composed by spheres of LED connected in strings and controllable in pixel2pixel, delivered in a set of 2 m x 3 m, with a resolution of 10x15 pixels, a pitch of 200 mm, 150 spheres in total, each individually controlled in pixel2pixel. Power and control drivers are positioned inside the hanging bar (two independent hanging bar of 5x15 pixels in a set), where through the LCD user interface, you can assign a DMX address, or activate the Auto and master/slave. GLOBEEX is the kit of extension of the strips of further 1 m (one string can be extended up to 6 m totally), for use on surfaces of larger dimensions.
The packaging of GLOBE includes 2 pcs hanging bar, 10 pcs 3 m string with 15 spheres each, nylon bag for transport.

Main features:

  • 150 globes with RGB SMD LED inside
  • LED source in 1 pixel: 2pcs SMD5050 RGB / FC
  • Pixel control: individual control of each single sphere
  • Flicker-free operations

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 20x1,4W SMD5050 RGB LED
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 360°
  • Pixel pitch: 200mm / 7.87''
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Protocols: DMX512
  • DMX channels: 12 / 225channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: 0° ~ +35° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 60W
PHYSICAL
  • IP rating: 20
  • Suspension and fixing: hanging system through eye bolt
  • Signal connection: 3p IN/OUT
  • Power connection: powerCON IN
  • Dimensions (WxHxD): 2000x3000mm / 78.74''x118.11''
  • Weight: 4kg / 8.82lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualGlobe_USER_MANUAL_ITEN.pdf1MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
