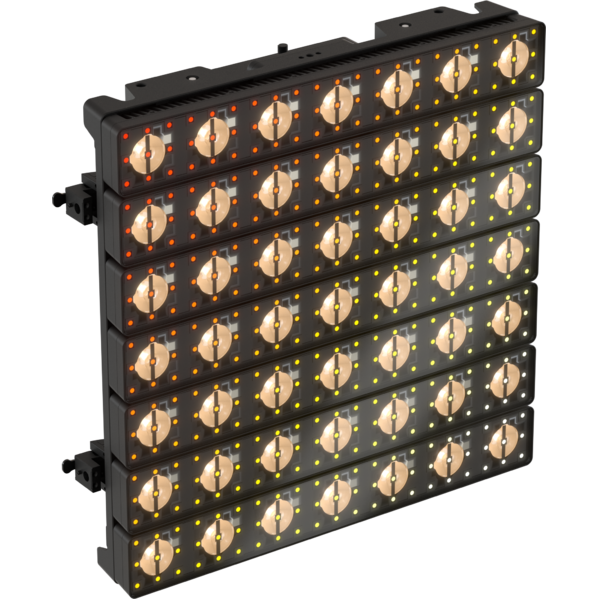

HaluPix Duo

ORDER CODE: HALUPIXDUO

500W IP65 dual layer LED matrix panel with 7x7 2700K 4° Beams + 21x21 RGBWW pixels

The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.

Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.

The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.

HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.

In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

Main features:

  • 500W IP65 dual layer LED matrix panel, 441x RGBWW pixels and 49x 2700K beams
  • Seamless modular frame for flat, curve, hanging / ground, on yoke configurations
  • DMX, RDM, sACN, Art-net and RDMnet protocols supported
See variants

PHOTO GALLERY

HaluPix Duo
HaluPix Duo
HaluPix Duo
HaluPix Duo
HaluPix Duo
HaluPix Duo

Technical specifications

LIGHT SOURCE
  • Light source: 7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
  • Luminous flux: Full Power Wash - Combined: 11'388 lm @Full
  • Luminous flux: Full Power Wash: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full
  • Luminous flux: Full Power Strobe - Combined: 24'000 lm
  • Lux: Full Power Wash - Combined: 23'686lx @5 m full
  • Lux: Full Power Wash: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full
  • Lux: Full Power Strobe - Combined: 33'000lx
  • CRI: (beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
  • R9: (pixel layer) 94,8 @3200K; 95,8 @5600K
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (Beams) 3,6°; (Pixels) 116°
  • Field angle: (Beams) 6,8°; (Pixels) 155°
  • Pixel pitch: (BEAMs) 72 mm | (PIXELs) 24mm / 0''
  • Additional optics: available optional optics for beam LEDs 12°, 24°
COLOUR SYSTEM
  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, RDMnet, sACN (IGMP v2), CRMX (optional)
  • DMX channels: from 12 channels to 1855ch modular and user-customizable DMX architecture (MCA)
  • Pixel control: pixel2pixel control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: up to 6 independent selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: Seetronic Ethernet IP in/out connectors
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): strobe: 1.200 W (peak) - wash: 500W
  • Output (at 230V): 4 units on a single power line
  • Output (at 120V): 2 units on a single power line
  • Standby power: 14,8 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Weatherproof IP65 construction with magnesium alloy
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 500x500x133mm / 19.69''x19.69''x5.24''
  • Weight: 16,3kg / 35.94lbs
INSTALLATION
  • Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
  • Bracket system: spigot for tripod use and bracket for truss rigging
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Curve configurations: -10° to +15° with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall (refer to the user manual for details)
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

FCLHALUPIXDUO
FCLHALUPIXDUO
(Optional)
Flight case for 4 pcs HALUPIXDUO
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
HDFILTBK
HDFILTBK
(Optional)
Black adhesive filter designed for a single HALUPIXDUO and HALUSTRIPDUO strip
HDL12
HDL12
(Optional)
Optional Beam Lenses 12° for HALUPIXDUO
HDL24
HDL24
(Optional)
Optional Beam Lenses 24° for HALUPIXDUO
OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
VBSPG
VBSPG
(Optional)
Spigot for HALUPIXDUO
VBJMPF
VBJMPF
(Optional)
Metal joint used to connect 4 pcs HALUPIXDUO cabinets in flat configuration, M10 hole
VBJMPC
VBJMPC
(Optional)
Metal joint used to connect 4 pcs HALUPIXDUO cabinets in curve configuration, M10 hole
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
OXACL10
OXACL10
(Optional)
Power cable for LED display series, Seetronic, L.10 m
OXDCL01
OXDCL01
(Optional)

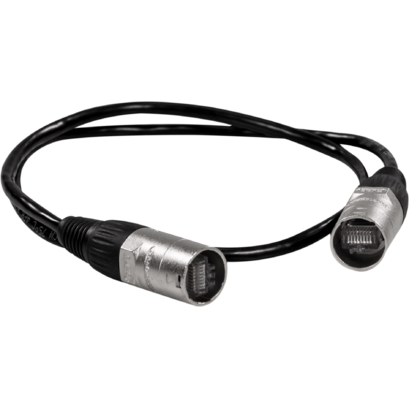

Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, IP65, L.1,4 m
OXDCL10
OXDCL10
(Optional)
Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, IP65, L.10 m
VBHGB01
VBHGB01
(Optional)
Fly bar / ground bar for HALUPIXDUO, 1 column
VBHGB02
VBHGB02
(Optional)
Fly bar / ground bar for HALUPIXDUO, 2 column
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXSPC
KSXSPC
(Optional)
Ground structure spacer for HALUPIXDUO
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
HDWK
HDWK
(Optional)
Wireless kit, compatible with multiple Prolights products
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetHalupixduo_A4_DATASHEET_(ITA).pdf(22/08/2025)579KB
Letter datasheetHalupixduo_LETTER_DATASHEET_(EN).pdf(22/08/2025)579KB
Letter datasheetHalupixduo_A4_DATASHEET_(EN).pdf(22/08/2025)581KB
Tender SpecificationHalupixduo_TENDER_SPECIFICATION.pdf(03/02/2025)397KB

User manual

File name File size Download
User manualHalupixduo_USER_MANUAL_EN.pdf(08/09/2025)13MB
User manualHalupixduo_Best_Practices_Guide.pdf(21/11/2025)1MB
User manualHalupixduo_General_Safety_Information.pdf(07/01/2025)3MB

DMX chart & personalities

File name File size Download
DMX chartHalupixduo_DMX_CHARTS.pdf(28/04/2025)241KB

HALUPIXDUO Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
halupixduo_beams.xmlDownload
halupixduo_pixels.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPHalupixduo_3D.skp(11/12/2024)2MB
2DHalupixduo_CAD_2D.dwg(04/02/2025)9MB
3DHalupixduo_CAD_3D.dwg(11/12/2024)542KB
2D cad symbolsHalupixduo_CAD_2DSYMBOLS.dwg(02/05/2025)23KB
Technical drawingHalupixduo_TECHNICAL_DRAWING.pdf(04/02/2025)712KB
VectorWorksHALUPIXDUO_SYMBOLS.vwx(06/03/2025)515KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0018 BETA 16/03/2026

New Functions:

  • New graphical UI.
  • Added sACN Merge Mode management (HTP-LTP)
  • New Prolights logo at Power ON
  • New Connect menu. Now in "MAIN&BEAM + PIXELS":
    • In the "Main&Beam" DMX Mode menu you can choose the following already combined DMX modes:
      • BASIC
      • BASIC + 49 BEAM
      • BASIC + 49 BEAM 16Bit
      • STANDARD
      • STANDARD + 49 BEAM
      • STANDARD + 49 BEAM 16 bit
      • FX 1
      • FX 1 + 49 BEAM
      • FX 1 + 49 BEAM 16 bit
      • FX 2
      • FX 2 + 49 BEAM
      • FX 2 + 49 BEAM 16 bit
      • FX 3
      • FX 3 + 49 BEAM
      • FX 3 + 49 BEAM 16 bit
      • EXTENDED
      • EXTENDED + 49 BEAM
      • EXTENDED + 49 BEAM 16 bit
      • BASIC SECTORS
      • SINGLE BEAM
      • 49 BEAM
      • 49 BEAM 16Bit
    • In Pixels DMX Mode you can select the following DMX modes regarding the Pixel Engine:
      • 49S
      • PIXELS
      • PIXELS + BEAM
    • Note: If Main&Beam @ "Single Beam"/"49 Beam"/"49 Beam 16Bit" -->only Pixel "PIXELS" mode can be set.

No known issues.

 Rev. 1.0
Rev. 2.0
1.1.00.0 STABLE 30/06/2025 FIRST STABLE RELEASE

Improvements:
  • Improved sync on multiple devices connected in DMX, ArtNet or sACN.
  • Improved NET PCB initialization at device startup to optimize network data.
  • Improved management of double protocol ETH1 (ArtNet) + ETH2 (sACN)
Fixed Bug:
  • Strobe Ch does not work in sync on multiple devices
  • Fixed minor bugs
Notes:
  • Do not use FPS/Hz higher than 35FPS with Artnet/sACN.
  • To use ETH1 (ArtNet) + ETH2 (sACN) on the Pixel Engine, please set ARTNET=Unicast + sACN=Multicast. However, on HALUPIXDUO, it is always recommended to use Artnet Unicast (with packet sync enabled when managing the Pixel Engine with a media server) and sACN multicast with IGMP enabled. Using Artnet Broadcast, the projector will freeze due to the large number of data packets.
  • Firmware update can be performed via:
Rev. 1.0
Rev. 2.0

Info Request

News

Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
March 26, 2026
Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
The Second Split of Kings League Italia , the seven-a-side football tournament streamed live across multiple platforms, took place at Fonzies Arena in Cologno Monzese , with a PROLIGHTS lighting system at the heart of a production built around one of
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
A major lighting upgrade has been completed at the Joy Shepherd Performing Arts Centre , the centrepiece performance space of St Hilda's Anglican School for Girls in Perth , Western Australia. Led by Theatre Manager Noah Gliosca , the project introduces
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
Subscribe to our Newsletter
Loading...
