LUMIPIX15IP
PROLIGHTS

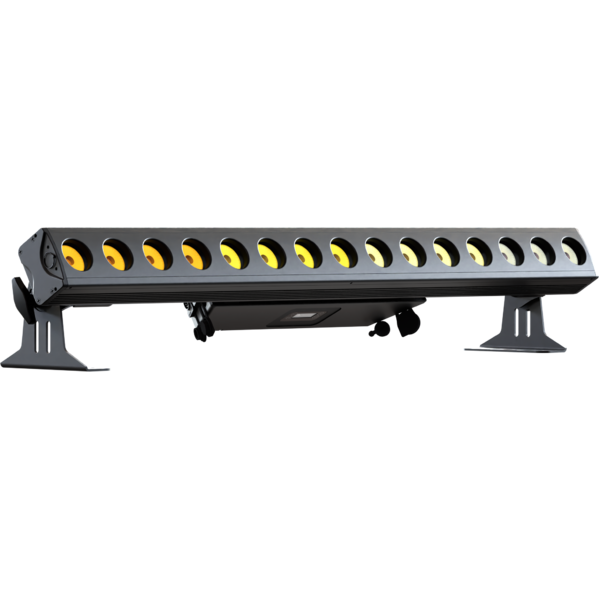

Lumipix 15IP

ORDER CODE: LUMIPIX15IP

15x10W outdoor linear pixel batten

Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoor, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

Main features:

  • LED batten with 15 individually controllable RGBW LED
  • Waterproof housing and connections for outdoor usage
  • Extensive colour palette with precise mixing and powerful output
See variants

PHOTO GALLERY

Lumipix 15IP
Lumipix 15IP
Lumipix 15IP
Lumipix 15IP
Lumipix 15IP

Technical specifications

LIGHT SOURCE
  • Source: 15x10W RGBW LEDs
  • Luminous flux: (16° + diffused) 4'983 lm - (16°) 5'394 @Full
  • Lux: (16° + diffused) 1'886 lm - (16°) 2'454lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 16°
  • Field angle: 31°
  • Additional optics: magnetic frost holder on board
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 10 / 60 / 65channel
  • Pixel control: pixel2pixel control
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 161W
  • Max power consumption (at 120V): 162W
  • Output (at 230V): 16 units on a single power line
  • Output (at 120V): 12 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 992x206x160mm / 39.06''x8.11''x6.3''
  • Weight: 8,6kg / 18.96lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix15ip_A4_DATASHEET_(IT).pdf(30/04/2021)327KB
Letter datasheetLumipix15ip_A4_DATASHEET_(EN).pdf(17/10/2023)461KB

User manual

File name File size Download
User manualLumipix15ip_USER_MANUAL_ITEN.pdf(27/09/2023)2MB
User manualLumipix15ip_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartLumipix15ip_DMX_CHARTS.pdf(10/02/2018)51KB

LUMIPIX15IP Firmware rev. 1.3

manufacturer fixture library (Link) Link
prolights_lumipix15ip.d4Download
manufacturer fixture library (Link) Link
prolights@lumipix_15_ip@4_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@6_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@10_channel@ma_library_update_v15.0.xmlpDownload
prolights@lumipix_15_ip@60_channel@ma_library_update_v15.0.xmlpDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFALumipix15ip_3D.rfa(23/04/2021)576KB
3D SKPLumipix15ip_3D.skp(27/03/2020)441KB
2DLumipix15ip_CAD_2D.dwg(08/10/2021)1MB
3DLumipix15ip_CAD_3D.dwg(18/02/2020)652KB
2D cad symbolsLumipix15ip_CAD_2DSYMBOLS.dwg(09/03/2020)21KB
Technical drawingLumipix15ip_TECHNICAL_DRAWING.pdf(08/10/2021)204KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)200KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB .PRL No software needed see User Manual
NET CABLE .EHEX Professional Uploader Guide
NET CABLE .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product   accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 02/01/2019 Improved power on feature with high temperture. Rev. 1
