ARCPOD8
ARCHWORK
discontinued

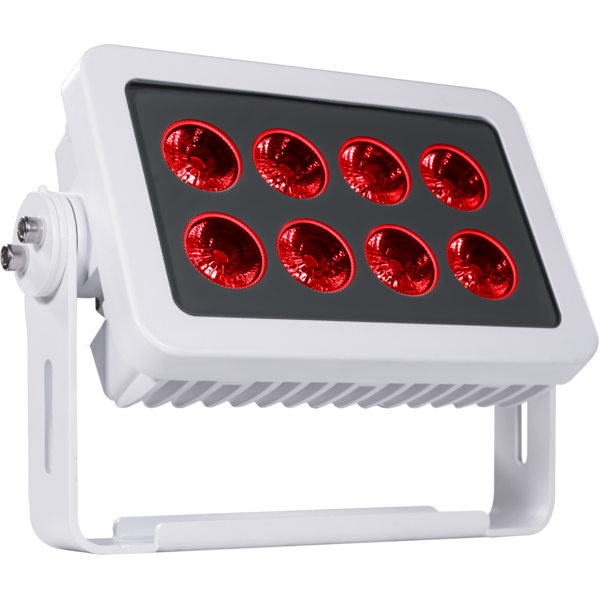

ArcPod 8FC

8x8W outdoor compact wash light

ArcPod 8 is a wash light with 8x8W RGBW / FC LEDs source designed for outdoor installations where a high-performance projector with superior brightness and chromatic precision is required. The rectangular shape design and the super-slim profile allows the ArcPod 8 to be easily integrated into any architectonic installation or setting whilst also being functional in outdoor (IP66) environments due to the construction of chassis in die-cast aluminium and tempered glass with no ventilation fans. ARCPOD8 is a compact projector capable of lighting large spaces both as a stage wash in outdoor events and for projects of architectural lighting

Main features:

  • 4D (RGBW) colour mixing
  • DMX virtual colour wheel
  • Low 55W power consumption and LED source expected life of over 50.000 hours
  • User menu and settings are accessed through a 4 button touch-sensitive LED interface while 3 different DMX modes (4 - 10 channel) available

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 8x8W RGBW / FC LEDs
  • Luminous flux: @full 2'268
  • Lux: 15° @full 28'431lx @3 m
  • Lux: 15° @full 1'024lx @5 m
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 22°
  • Additional optics: 25° / 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10channel
  • Display: touch - sensitive LED display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 55W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: 66 for outdoor installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN connector
  • Power connection: moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 316x235x81mm / 12.44''x9.25''x3.19''
  • Weight: 5,16kg / 11.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Code
Color Synthesis
ARCPOD8FC
ARCPOD8FC (DISCONTINUED)
Full Color
ARCPOD8TU
ARCPOD8TU (DISCONTINUED)
Tungsten
ARCPOD8DY
ARCPOD8DY (DISCONTINUED)
Daylight

Accessories & Related Products

ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod8_A4_DATASHEET.pdf253KB

User manual

File name File size Download
User manualArcpod8fc_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
ARCPOD8FC Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_arcpod8.d4Download
manufacturer fixture library (Link) Link
prolights_arcpod8fc_4ch.hed Download
prolights_arcpod8fc_6ch.hed Download
prolights_arcpod8fc_10ch.hed Download
manufacturer fixture library (Link) Link
arcpod8_4ch.fdf Download
arcpod8_6ch.fdf Download
arcpod8_10ch.fdf Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcpod 8 4 channel.fix2 Download
arcpod 8 6 channel.fix2 Download
arcpod 8 10 channel.fix2 Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 05/01/2021 Improved Firmware Functionality.
1.1 STABLE 28/10/2015 Improved firmware functionality.
