ARCPOINT1
Share me

IP66

Immagine Principale
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
  • ARCPOINT1
    • ARCPOINT1
    Code Color Synthesis Avail.
    ARCPOINT1FC Full Color
    ARCPOINT1TU Tungsten
    ARCPOINT1DY Daylight

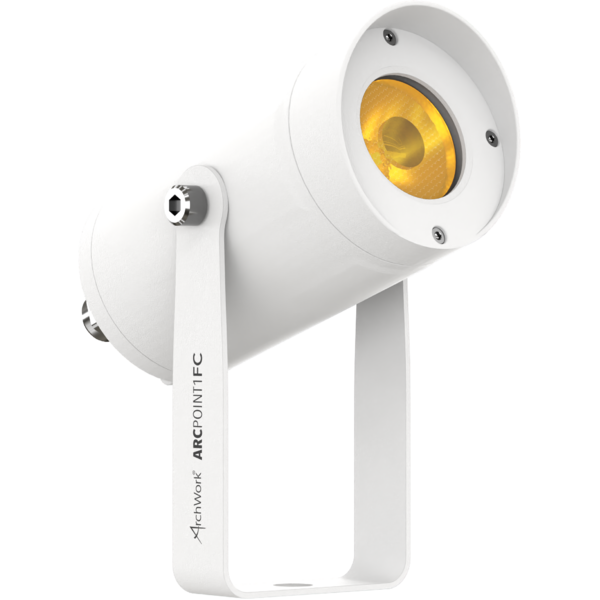

    ArcPoint 1FC is a compact exterior accent LED fixture designed for outdoor. The luminaire is equipped with a single Full Colour LED emitter delivering a wide spectrum of colours and whites all in a very compact housing.

    The fixture is supplied with a ground spike in the box, for easy implementation as garden light, and with the on board bracket it can be also implemented in larger foorprint installations as decor or accent light.

    The special design (IP66) and the innovative RDM control technology, makes ArcPoint 1FC suitable for all weather conditions.



    Features:
    10 W CREE RGBW / FC LED
    IP66 rating
    Ground spike (supplied in the box) for fixing in the ground

    LIGHT SOURCE
    • Source:
      10
      W
      CREE RGBW / FC LED
    • Luminous flux:
      326
      lm
    • Lux:
      (16°) 346
      lx
      @3 m full
    • Lux:
      (16°) 124
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      16
      °
    • Field angle:
      26
      °
    COLOUR SYSTEM
    • Colour mixing:
      CREE RGBW / FC
    • White presets:
      3.200K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    • Other:
      ground spike (included)
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      4 / 6 / 10
      channel
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      13
      W
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Sospension and fixing:
      ground spike for fixing in the ground
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      104x163x174
      mm
    • Weight:
      1,2
      kg
    CODICE PRODOTTO
    Accessory Code
    Description
    ARCPOINT1 (optional)
    ARCSTREAM18 (optional)
    MOSAICOXL (optional)
    ARCPALM (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    ARCPOD36 (optional)
    MOSAICOJR (optional)
    ARCPOD21 (optional)
    ARCPOD8 (optional)
    ARCSHINE12 (optional)
    ARCPAR7 (optional)
    ARCPAR18 (optional)
    ARCSHINE6 (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    AWEXAC1AWEXAC1
    Extension IP67 power cable, IPpowercon-F -> IPpowercon-M. compatible
    ARCPOINT1 (optional)
    ARCPALM (optional)
    ARCSTREAM18 (optional)
    ARCPOD8 (optional)
    ARCSHINE12 (optional)
    ARCSHINE6 (optional)
    ARCPAR18 (optional)
    ARCPAR7 (optional)
    ARCPOD21 (optional)
    ARCPOD36 (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD48Q (optional)
    ARCPOD48Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    MOSAICO (optional)
    AWEXDC1AWEXDC1
    IP67 DMX extension cable for ARCHWORK projectors
    ARCPOINT1 (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    DATAMASTERDATAMASTER
    RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
    ARCPOINT1 (optional)
    SMARTBOOK (optional)
    LUMIPAR7IP (optional)
    DATAMASTER (optional)
    PINSPOTD (optional)
    PIXBAR3E (optional)
    LUMI4COB (optional)
    SUNRISE2 (optional)
    SUNRISE4 (optional)
    SUNBAR2500MAX (optional)
    SUNBAR2000FC (optional)
    POLAR3000 (optional)
    HALUSTRIP (optional)
    PIXROLL12TRI (optional)
    WIFIBOX (optional)
    ARTNETNODE (optional)
    UVSTRIP18 (optional)
    LUMIPAR7QTOUR (optional)
    JETBEAM2 (optional)
    WDBOX (optional)
    LUMIPAR12IP (optional)
    SUNRISE2L (optional)
    LUMIPIX15IP (optional)
    ACCENT1Q (optional)
    UVPANEL18 (optional)
    6BEAMQ (optional)
    SMARTTORCH (optional)
    HALUPIX (optional)
    CHROMAPIX (optional)
    BATSTRIP160 (optional)
    TRUSSPOD3T (optional)
    LUMIPIX6TRI (optional)
    TRUSSPOD3BAT (optional)
    SMARTDISK (optional)
    POLAR1000 (optional)
    POLAR500 (optional)
    PIXIEWASH (optional)
    PIXPAN16 (optional)
    BATPAR180 (optional)
    PIXIEZOOM (optional)
    PIXIEWASHXB (optional)
    RA2000PROFILE (optional)
    Z7SPOT (optional)
    Z8STRIP (optional)
    HALUROCK (optional)
    CHROMAROCK (optional)
    JETSPOT4Z (optional)
    PIXIEZOOMXB (optional)
    MINIVERSAPAR (optional)
    ECLFRESNELPTW (optional)
    PIXIESPOT (optional)
    DISPLAYCOBWW (optional)
    DISPLAYCOBDY (optional)
    MINIECLFR (optional)
    DISPLAYCOBFC (optional)
    JETBEAM1 (optional)
    ECLJR (optional)
    ECLFR2KPTW (optional)
    ECLFRJPTW (optional)
    ECLFRESNELTW (optional)
    ECLFRJP (optional)
    VERSAPAR (optional)
    ECLJRG2 (optional)
    JETSPOT1 (optional)
    FLATPAR3H (optional)
    LION (optional)
    ECLFRESNELJ (optional)
    ECLFRESNELJTW (optional)
    FLATPAR6H (optional)
    FLATPAR3Q (optional)
    LUMIPAR7HPRO (optional)
    MOBIBLAST (optional)
    ECLFR2K (optional)
    ECLFR2KTW (optional)
    MINIECLFRFC (optional)
    QUADRO18UTRI (optional)
    SUNBLAST3500MAX (optional)
    SOLAR21 (optional)
    ARIA700PROFILE (optional)
    LUMIPIX12UQPRO (optional)
    STUDIOCOBPLUSUV (optional)
    LUMIPIX12QTOUR (optional)
    ARIA700SPOT (optional)
    ECLFRESNEL (optional)
    SUNBLAST3000FC (optional)
    LUMIPAR6UQ (optional)
    ARCPOD36 (optional)
    POLAR700 (optional)
    LUMIPIX12TRIIP (optional)
    FLATCOB40 (optional)
    FLATCOB80 (optional)
    LUMIPAR18VWPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12HPRO (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK12UTRI (optional)
    FLATCOB80UV (optional)
    LUMIPAR12UAW (optional)
    LUMIPACK6UQ (optional)
    LUMIPACK12UQ (optional)
    ARCPOD21 (optional)
    ARCPAR18 (optional)
    LUMIPIX12UT (optional)
    LUMIPAR7UTRI (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMIPIX8H (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCPAR7 (optional)
    AQUA (optional)
    LUMIPIX12UQ (optional)
    VISUALGOB (optional)
    LUMI4UTRI (optional)
    ARCPOD8 (optional)
    ARCSHINE6 (optional)
    ARCSHINE12 (optional)
    DISPLAYCOBTRWDFC (optional)
    STUDIOCOBPLUSDY (optional)
    ECLJZIP (optional)
    ARENACOB4FC (optional)
    STUDIOCOBPLUSTW (optional)
    LUMIPAR12UQ (optional)
    LUMIPAR12UQPRO (optional)
    LUMIPIX16H (optional)
    STUDIOCOBPLUSFC (optional)
    ARENACOB4HALO (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBUV (optional)
    TABLEDW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    STUDIOCOBCW (optional)
    SOLAR (optional)
    SMARTBATTENQ (optional)
    STUDIOCOBDY (optional)
    ECLPARFC (optional)
    STUDIOCOBTU (optional)
    RA3000PROFILE (optional)
    ECL (optional)
    LUMIPIX12QIP (optional)
    ECLPAR (optional)
    TABLEDC (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    SOLAR48Q (optional)
    ECLHD (optional)
    ECLHD2 (optional)
    SMARTBATHEX (optional)
    SMARTBAT (optional)
    SMARTBATIP (optional)
    ECLPANELTWC (optional)
    ECLFC (optional)
    ECLHDTWC (optional)
    SOLAR27Q (optional)
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    UPBOX1UUPBOX1U
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Arcpoint1fc_CAD_2D.dwgDownload
    Arcpoint1fc_CAD_3D.dwgDownload
    Arcpoint1dy_CAD_3D.dwgDownload
    Arcpoint1tu_CAD_3D.dwgDownload
    Arcpoint1fc_CAD_3D.dwgDownload
    Arcpoint1fc_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    ARCPOINT1 Firmware rev. 1.2
    AVOLITES Titan
    prolights_arcpoint1.d4Download
    CHAMSYS
    prolights_arcpoint1_4ch.hed Download
    prolights_arcpoint1_6ch.hed Download
    prolights_arcpoint1_10ch.hed Download
    DIGILITE
    arcpoint1_4ch.fdf Download
    arcpoint1_6ch.fdf Download
    arcpoint1_10ch.fdf Download

    Photometrics

    Arcpoint1fc_PHOTOMETRICS.pdfDownload

    Software Upgrades

    Tech Docs


    Italian/English manual    		Download
