ECLFWIP
PROLIGHTS

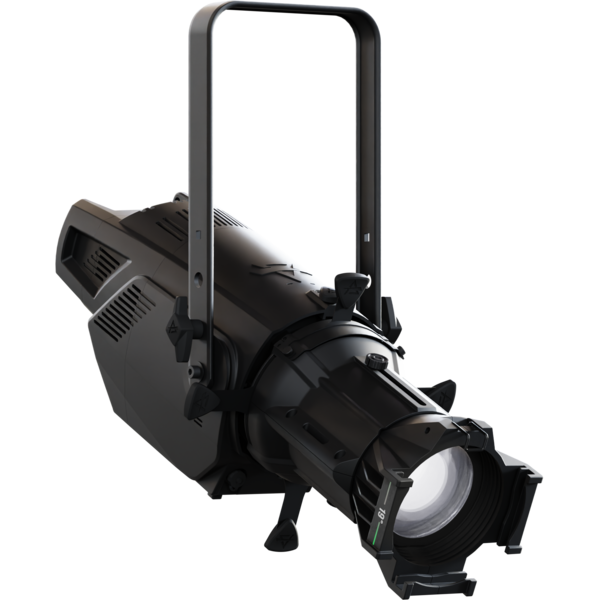

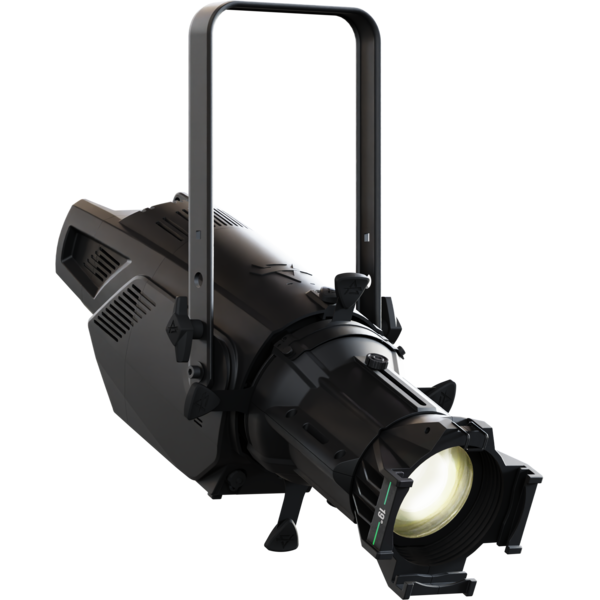

EclProfile FWIP

Waterproofed high quality Full White LED ellipsoidal available in Tungsten and Daylight versions

EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Main features:

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • 3.200 K (TU) and 5.600 K (DY) versions available
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30)
  • Silent operation and compatible with industry standard accessories
See variants

PHOTO GALLERY

EclProfile FWIP
EclProfile FWIP
EclProfile FWIP
EclProfile FWIP
EclProfile FWIP
EclProfile FWIP

Technical specifications

LIGHT SOURCE
  • Source: 91x3W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670 @Full
  • Luminous flux: (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
  • Lux: (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419lx @5 m full
  • Lux: (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494lx @5 m full
  • CRI: (TU) >98; (DY) >97
  • R9: (TU) >91; (DY) >97
  • TLCI: (TU) >98; (DY) >98
  • TM30 Rf: (TU) >94; (DY) >91
  • TM30 Rg: (TU) >99; (DY) >99
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: static white
DYNAMIC EFFECTS
  • Rotating gobos: optional, see available accessories
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 3 / 4 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 264W
  • Standby power: 10W
  • Output (at 230V): 10 units on a single power line
  • Power factor: 0,97
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 324x540x660mm / 12.76''x21.26''x25.98''
  • Weight: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
ECLFWIPTUBK
ECLFWIPTUBK
3.200 K
98
91
7'196 lm
ECLFWIPDYBK
ECLFWIPDYBK
5.600 K
97
97
8'176 lm

Accessories & Related Products

<b>EclProfile </b> Rotating Gobo
EclProfile Rotating Gobo
(Optional)
Rotating gobo assembly for ECL Profile fixtures, black
FCLECLPRIP
FCLECLPRIP
(Optional)
Flightcase to contain 6 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°
FCLECLPRLZ
FCLECLPRLZ
(Optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(Optional)
Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL05BK
ECLPRL05BK
(Optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(Optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(Optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(Optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(Optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(Optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(Optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(Optional)
70° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(Optional)
90° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLPRGH
ECLPRGH
(Optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(Optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(Optional)
Iris accessory for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(Optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfwip_LETTER_DATASHEET_(EN).pdf648KB
Letter datasheetEclfwip_A4_DATASHEET_(EN).pdf649KB
Tender SpecificationEclfwipdybk_TENDER_SPECIFICATION.pdf4MB
Tender SpecificationEclfwiptubk_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfwip_DMX_CHARTS.pdf60KB
ECLFWIPTUBK Firmware rev. 1.41.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFWIPDYBK Firmware rev. 1.41.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFWIP_3D_SKETCHUP.zip12MB
2DECLFWIP_2D.zip155MB
3DECLFWIP_3D.zip9MB
2D cad symbolsECLFWIP_2DSYMBOLS.zip2MB
Technical drawingECLFWIP_TECHNICAL DRAWINGS.zip6MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLFWIP_SYMBOLS.zip13MB

Tech docs

File name File size Download
Noise ReportEclfwip_NOISE_REPORT.pdf1MB

Software

File name File size Download
SoftwareECLFWIP/CT+ Firmware Updater9MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.44.1 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
 Rev. 1.0
1.41.1 STABLE 23/06/2022 Fixed bugs:
  • Fixture not entering bootloader for firmware update.
  • Wrong RDM Personality CH Count of Standard mode.
Improvements:
  • Improved Display management.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.44.1 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
 Rev. 1.0
1.41.1 STABLE 23/06/2022 Fixed bugs:
  • Fixture not entering bootloader for firmware update.
  • Wrong RDM Personality CH Count of Standard mode.
Improvements:
  • Improved Display management.

Info Request

News

SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
The Valencia's Museu de les Ciències shines with PROLIGHTS
February 27, 2025
The Valencia's Museu de les Ciències shines with PROLIGHTS
In the stunning setting of the Museu de les Ciències de Valencia, an exhibition center that invites visitors to explore the evolution of life, science, and technology through interactive experiences and scientific animations, NOX AUDIOVISUALES chose
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
February 26, 2025
HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!
PROLIGHTS has been recognized at the rAVe [PUBS] Best of ISE 2025 awards , with HaluPix Duo winning the title of Best New Event Lighting Product in the Rental, Staging & Live Events category. This award highlights the product's innovation, performance,
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
February 13, 2025
PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!
PROLIGHTS is proud to announce the launch of the Smart BatPlusNeo , the latest innovation in battery uplighting product category . Building on the success of the legendary SmartBat Plus series, this next-generation fixture brings groundbreaking advancements
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
February 11, 2025
PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light
PROLIGHTS announces the release of the Jet Profile300LT , an all-new moving profile fixture that merges high-precision keylight with the power and reach of a long-throw fixture. Delivering superior aerial effects and long-distance projections, the Jet
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
February 07, 2025
PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class
PROLIGHTS announces the release of the Astra Profile900 , a moving head designed to address the needs of lighting professionals in live productions, studios, theatres, and events. Combining brightness, adaptability, and advanced motion technology, the
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
February 05, 2025
PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire
PROLIGHTS announces the release of the Astra Hybrid260IP , a next-generation hybrid moving head luminaire that delivers unmatched performance and versatility in both indoor and outdoor events. Equipped with a 260W White Phosphor Laser source, the Astra
Subscribe to our Newsletter
Loading...
