LION
PROLIGHTS

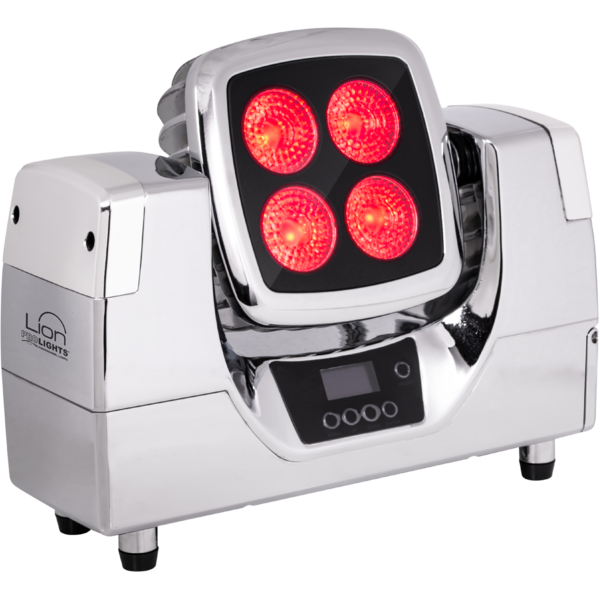

Lion

Battery operated projector with zoom and tilt control

LION is a portable battery-powered light designed to be extremely flexible and versatile thanks to its waterproof design. With adjustable tilt of the LED block, manual zoom enabling adjustment of the beam spread and cable-free operation through WDMX receiver on-board LION really is special. LION is a rental-friendly tool, lightweight, portable and can be loaded in the fast-charge case. Can be used as a universal projector in architectural projects, showrooms, wedding parties, conferences, exhibitions, fashion shows and concerts.

Main features:

  • 4x10 W RGBW LEDs deliver powerful saturated and pastel colours
  • Wireless DMX control, 9 hours battery life on full white and IP65 rating allowing for incredible versatility
  • Manual zoom and tilting head for focus control

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 4x10W RGBW LEDs
  • Luminous flux: 1'164
  • Lux: (11°) 1'736lx @3 m full
  • Lux: (36°) 625lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 11 - 36° manual
  • Field angle: 21 ~ 36°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: +/- 105° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: DMX512, W-DMX
  • DMX channels: 3 / 4 / 6 / 10 / 15channel
  • Wireless Control: included, wireless solution receiver
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 53W
  • Max power consumption (at 120V): 53W
BATTERY
  • Battery: 24V lithium
  • Estimated battery life in colour change mode up to: 18h
  • Estimated battery life in full-mode up to: 9h
  • Re-charge connection: power cable and / or magnetic fast-charge in case
  • Re-charge time: 6h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: XLR 5p IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 312x250x108mm / 12.28''x9.84''x4.25''
  • Weight: 5,5kg / 12.13lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
LIONBK
LIONBK (DISCONTINUED)
Black
LIONCR
LIONCR (END OF LIFE)
Chrome

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLLIONE
FCLLIONE
(Optional)
Flight case for 6x LION, battery charger kit included
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

DMX chart & personalities

File name File size Download
LION Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_lion.d4Download
manufacturer fixture library (Link) Link
prolight_lion_4ch.hedDownload
prolight_lion_6ch.hedDownload
prolight_lion_10ch.hedDownload
manufacturer fixture library (Link) Link
lion_3ch-1.fdfDownload
lion_3ch-2.fdfDownload
lion_4ch.fdfDownload
lion_6ch.fdfDownload
lion_10ch.fdfDownload

CAD symbols & drawings

File name File size Download
2DLion_CAD_2D.dwg2MB
3DLion_CAD_3D.dwg15MB
Technical drawingLion_TECHNICAL_DRAWING.pdf327KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 04/12/2018 10 second default display backlight.
