NAXTSC6
NORDIC ALUMINIUM

NAXTSC6

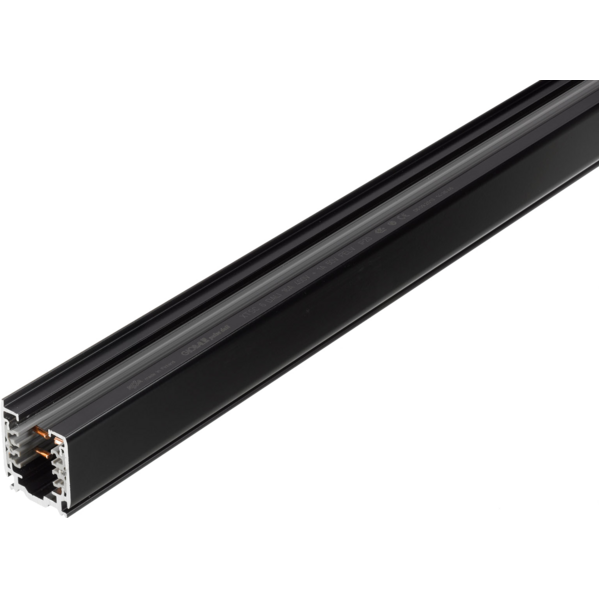

GLOBAL Trac Pulse control is a lighting track system that includes both normal input voltage and wires for transmitting the control signal to the lights. This makes it possible to use smart control systems without central units. Of these, the DALI, DMX, LON and EIB standards are the most widely known. Various manufacturers provide control units, detectors and fixtures for the control systems. All control systems share the same goal: to transmit the control signal to individual lights using the GLOBAL Trac Pulse control's wires and to create dynamic lighting.
Needs-based lighting
Dynamic lighting means that the lighting changes according to the situation and need. Lights can be turned on and off, brightened or dimmed flexibly as separate groups. This also saves energy, because lights are only turned on where necessary.
Directing attention
Dynamic lighting is used to focus attention in store settings and shop windows. It is also used in museums and exhibitions to highlight details and in restaurants, auditoriums, hotel lobbies and many other places.


Main features:

  • GLOBAL Trac Pulse are available in black and white finishing, both in the following lenghts:
  • - 1 m
  • - 2 m
  • - 3 m
  • - 4 m

PHOTO GALLERY

Technical specifications

Versions

Code
Lenght (m)
Finishing
NAXTSC61002
NAXTSC61002
1
Black
NAXTSC61003
NAXTSC61003
1
White
NAXTSC62002
NAXTSC62002
2
Black
NAXTSC62003
NAXTSC62003
2
White
NAXTSC63002
NAXTSC63002
3
Black
NAXTSC63003
NAXTSC63003
3
White
NAXTSC64002
NAXTSC64002
4
Black
NAXTSC64003
NAXTSC64003
4
White

Accessories & Related Products

NAXTSC6112
NAXTSC6112
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
NAXTSC6113
NAXTSC6113
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
NAXTSC6123
NAXTSC6123
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142
NAXTSC6142
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black
NAXTSC6143
NAXTSC6143
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white
NAXTSC6232
NAXTSC6232
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
NAXTSC6233
NAXTSC6233
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
NAXTSNC6353
NAXTSNC6353
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
NAXTSNC6362
NAXTSNC6362
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6382
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
NAXTSNC6393
NAXTSNC6393
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
NAXTSNC6403
NAXTSNC6403
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS412
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black
NAXTS413
NAXTS413
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, white
NAXTSA682
NAXTSA682
(Optional)
Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, black
NAXTSA683
NAXTSA683
(Optional)
Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, white
NAGAC6002
NAGAC6002
(Optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, black
NAGAC6003
NAGAC6003
(Optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, wihte
NAXTSA55129
NAXTSA55129
(Optional)
Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
NAGAM139
NAGAM139
(Optional)
Global Pulse Nut M13 for NAXTSA55129
NAGA0172
NAGA0172
(Optional)
Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, black
NAGA0173
NAGA0173
(Optional)
Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, white
NAGAC6162
NAGAC6162
(Optional)
Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, black
NAGAC6163
NAGAC6163
(Optional)
Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, white
NAGAW0162
NAGAW0162
(Optional)
Global Pulse CASAMBI 3-Circuit Adapter-Drivers, black
NAGAW0163
NAGAW0163
(Optional)
Global Pulse CASAMBI 3-Circuit Adapter-Drivers, white
NASPW12SK215M
NASPW12SK215M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25M
NASPW12SK25M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, black
NASPW12SK315M
NASPW12SK315M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NASKB122
NASKB122
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black
NASKB123
NASKB123
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white
