ST30
PROTRUSS

ST30

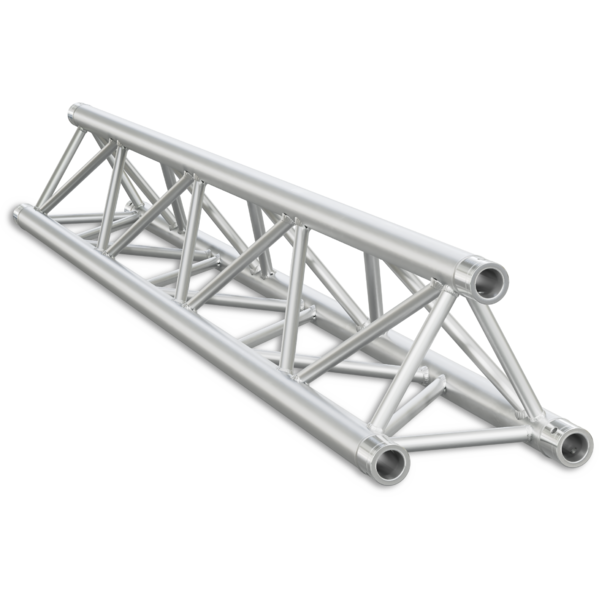

Triangular section aluminium truss with 29 cm long sides

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCT5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
ST30050
ST30050
50x2
20x2
500
258
290
3,5
0,018
AL
ST30100
ST30100
50x2
20x2
1000
258
290
5,6
0,036
AL
ST30100B
ST30100B (DISCONTINUED)
50x2
20x2
1000
258
290
5,7
0,036
BK
ST30150
ST30150
50x2
20x2
1500
258
290
8
0,055
AL
ST30150B
ST30150B (DISCONTINUED)
50x2
20x2
1500
258
290
8
0,055
BK
ST30200
ST30200
50x2
20x2
2000
258
290
11,5
0,073
AL
ST30200B
ST30200B (DISCONTINUED)
50x2
20x2
2000
258
290
11,5
0,073
BK
ST30250
ST30250
50x2
20x2
2500
258
290
12,6
0,091
AL
ST30250B
ST30250B (DISCONTINUED)
50x2
20x2
2500
258
290
12,6
0,091
BK
ST30300
ST30300
50x2
20x2
3000
258
290
14,9
0,109
AL
ST30300B
ST30300B (END OF LIFE)
50x2
20x2
3000
258
290
14,9
0,109
BK
ST30350
ST30350
50x2
20x2
3500
258
290
17,2
0,127
AL
ST30350B
ST30350B (DISCONTINUED)
50x2
20x2
3500
258
290
17,2
0,127
BK
ST30400
ST30400
50x2
20x2
4000
258
290
19,5
0,146
AL
ST30400B
ST30400B (DISCONTINUED)
50x2
20x2
4000
258
290
19,5
0,146
BK
ST30050B
ST30050B (DISCONTINUED)
50x2
20x2
50
25,8
29
3,4
0,018
BK

Accessories & Related Products

TCQ30
TCQ30
(Optional)
FCT
FCT
(Included)
ST30L2045U
ST30L2045U
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 45°, V.Up
ST30L2060U
ST30L2060U
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 60°, V.Up
ST30L2090U
ST30L2090U
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Up
ST30L2090E
ST30L2090E
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Ext
ST30L2090I
ST30L2090I
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Int
ST30L2120U
ST30L2120U
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 120°, V.Up
ST30L2135U
ST30L2135U
(Optional)
2-way corner for ST30 Series, extrude tube 50x2mm, FCT5 included, 135°, V.Up
ST30L3LU
ST30L3LU
(Optional)
3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
ST30L3LD
ST30L3LD
(Optional)
3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
ST30L3RU
ST30L3RU
(Optional)
3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Up
ST30L3RD
ST30L3RD
(Optional)
3-way L corner for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
ST30T3D
ST30T3D
(Optional)
3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Down
ST30T3LD
ST30T3LD
(Optional)
3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
ST30T3LE
ST30T3LE
(Optional)
3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Ext
ST30T3LU
ST30T3LU
(Optional)
3-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
ST30X4U
ST30X4U
(Optional)
4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Up
ST30X4LD
ST30X4LD
(Optional)
4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
ST30X4RD
ST30X4RD
(Optional)
4-way X joint for ST30 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
ST30T4U
ST30T4U
(Optional)
4-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Up
ST30T4D
ST30T4D
(Optional)
4-way T joint for ST30 Series, tube 50x2mm, 2x FCT5 included, V.Down
ST30T5U
ST30T5U
(Optional)
5-way T joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
ST30X5U
ST30X5U
(Optional)
5-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
ST30X5D
ST30X5D
(Optional)
5-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
ST30X6D
ST30X6D
(Optional)
6-way X joint for ST30 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
STFP
STFP
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSt30_A4_DATASHEET_(EN).pdf310KB
