ST40
PROTRUSS

ST40

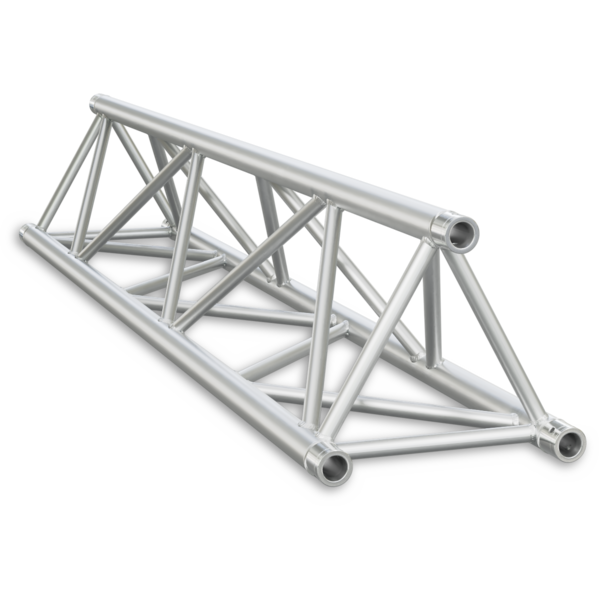

Triangle section aluminium truss with 40 cm sides.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCT5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
ST40050
ST40050
50x2
25x2
500
353
400
3,2
0,035
AL
ST40100
ST40100
50x2
25x2
1000
353
400
4,9
0,069
AL
ST40150
ST40150
50x2
25x2
1500
353
400
6,7
0,104
AL
ST40150B
ST40150B (DISCONTINUED)
50x2
25x2
1500
353
400
6,7
0,104
BK
ST40200
ST40200
50x2
25x2
2000
353
400
8,5
0,139
AL
ST40200B
ST40200B (DISCONTINUED)
50x2
25x2
2000
353
400
8,5
0,139
BK
ST40250
ST40250
50x2
25x2
2500
353
400
10,4
0,173
AL
ST40250B
ST40250B (DISCONTINUED)
50x2
25x2
2500
353
400
10,4
0,173
BK
ST40300
ST40300
50x2
25x2
3000
353
400
12,2
0,208
AL
ST40300B
ST40300B (DISCONTINUED)
50x2
25x2
3000
353
400
12,2
0,208
BK
ST40350
ST40350
50x2
25x2
3500
353
400
14
0,242
AL
ST40350B
ST40350B (DISCONTINUED)
50x2
25x2
3500
353
400
14
0,242
BK
ST40400
ST40400
50x2
25x2
4000
353
400
15,8
0,277
AL
ST40400B
ST40400B (DISCONTINUED)
50x2
25x2
4000
353
400
15,8
0,277
BK

Accessories & Related Products

FCQ5
FCQ5
(included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
ST40L2045U
ST40L2045U
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 45°, V.Up
ST40L2060U
ST40L2060U
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 60°, V.Up
ST40L2090U
ST40L2090U
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Up
ST40L2090I
ST40L2090I
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Int
ST40L2090E
ST40L2090E
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 90°, V.Ext
ST40L2120U
ST40L2120U
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 120°, V.Up
ST40L2135U
ST40L2135U
(optional)
2-way corner for ST40 Series, extrude tube 50x2mm, FCT5 included, 135°, V.Up
ST40L3RU
ST40L3RU
(optional)
3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Up
ST40L3RD
ST40L3RD
(optional)
3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Right, V.Down
ST40L3LU
ST40L3LU
(optional)
3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
ST40L3LD
ST40L3LD
(optional)
3-way L corner for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
ST40T3LD
ST40T3LD
(optional)
3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Down
ST40T3LE
ST40T3LE
(optional)
3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Ext
ST40T3LU
ST40T3LU
(optional)
3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left, V.Up
ST40T3D
ST40T3D
(optional)
3-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
ST40X4U
ST40X4U
(optional)
4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
ST40X4L
ST40X4L
(optional)
4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Left
ST40X4R
ST40X4R
(optional)
4-way X joint for ST40 Series, tube 50x2mm, 2x FCT5 included, Right
ST40T4U
ST40T4U
(optional)
4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Up
ST40T4D
ST40T4D
(optional)
4-way T joint for ST40 Series, tube 50x2mm, 2x FCT5 included, V.Down
ST40T5
ST40T5
(optional)
5-way T joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
ST40X5U
ST40X5U
(optional)
5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Up
ST40X5D
ST40X5D
(optional)
5-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included, V.Down
ST40X6
ST40X6
(optional)
6-way X joint for ST40 Series, extrude tube 50x2mm, 2x FCT5 included
ST40FP
ST40FP
(optional)
Aluminium ground base for triangular section trusses, ST4
