ASTRAHYB330IP
PROLIGHTS

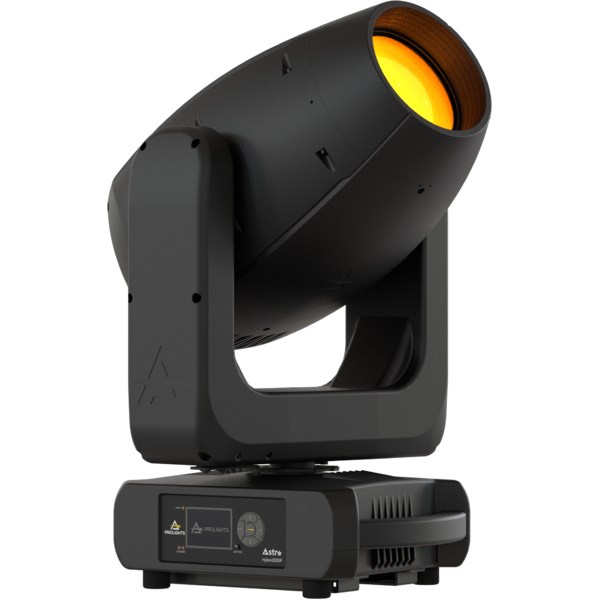

Astra Hybrid330IP new

ORDER CODE: ASTRAHYB330IP

330W Hybrid Moving head, IP65 with 3° - 50° zoom and CMY

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

Main features:

  • IP65 hybrid moving light with 330W LED source
  • Linear zoom ranging from 3° to 50°
  • 25 kg
See variants

PHOTO GALLERY

Astra Hybrid330IP
Astra Hybrid330IP
Astra Hybrid330IP
Astra Hybrid330IP

Technical specifications

LIGHT SOURCE
  • Source: 330W high-power white LED
  • CCT: 7.000
  • Luminous flux: (3°) 8'493 lm - (50°) 15'272
  • Lux: (3°) 114'701 lx - (50°) 1'882lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom: 3° - 50° motorised linear zoom
  • Lens diameter: 140mm / 5.51''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.400 K and 3.200 K
  • Colour wheel: 9 dichroic filters on 3 independent colour wheels
  • Colour wheel: High CRI colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
  • Fixed gobos: 11 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 29channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive
  • Other: Ethernet pass through in case of PSU or Master PCB failure
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
  • Max power consumption: 517W
  • Standby power: 85W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,98
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 393x684x266mm / 15.47''x26.93''x10.47''
  • Weight: 25kg / 55.12lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAH330IPTL
FCLASTRAH330IPTL
(optional)
Flight case for 2 pcs of ASTRAHYB330IP with top side loading
FCLASTRAH330IP
FCLASTRAH330IP
(optional)
Flight case for 2 pcs of ASTRAHYB330IP
AHYB330IPBAG1U
AHYB330IPBAG1U
(optional)
Empty ABS case for 1 pc of ASTRAHYB330IP
OSIPPLUS
OSIPPLUS
(included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrahyb330ip_A4_DATASHEET_(EN).pdf488KB
Tender SpecificationAstrahyb330ip_TENDER_SPECIFICATION.pdf302KB

User manual

DMX chart & personalities

File name File size Download
DMX chartAstrahyb330ip_DMX_CHARTS.pdf857KB
ASTRAHYB330IP Firmware rev. 1.1.08
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstrahyb330ip_3D.skp2MB
2DAstrahyb330ip_CAD_2D.dwg7MB
3DAstrahyb330ip_CAD_3D.dwg303KB
2D cad symbolsAstrahyb330ip_CAD_2DSYMBOLS.dwg40KB
Technical drawingAstrahyb330ip_TECHNICAL_DRAWING.pdf322KB
VectorWorksVECTORWORKS_SYMBOLS.vwx658KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.08 STABLE 15/10/2024 Improvement:
  • Improved LED power management when inserting Rot Gobo + Animation Wheel.
