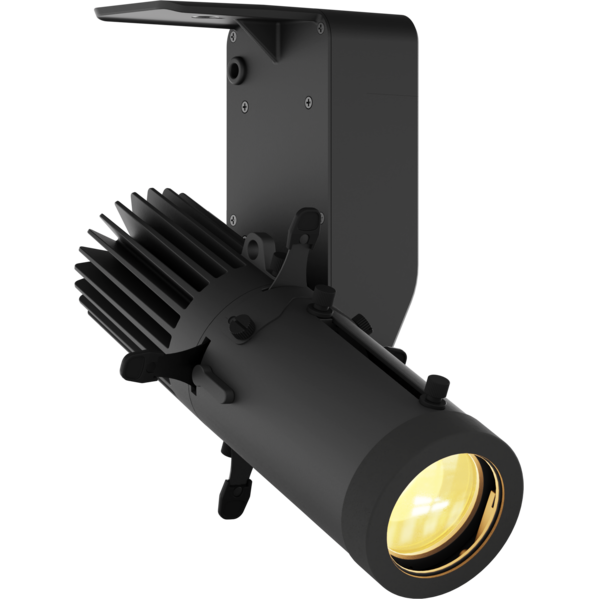

EclDisplay CASWhite new

25W single color gallery light, 2700K, 3000K, 4000K and 5600K versions with CASAMBI control on-board

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CAS is the version of the EclDisplay range made with integrated CASAMBI control on-board, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CAS includes a high-efficiency 25W single color LED available in 2700K, 3000K, 4000K and 5600K versions both in black and white finishing, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • CASAMBI control on-board
  • 25W single color LED available in 2700K, 3000K, 4000K and 5600K versions both in black and white finishing
  • Multiple lens options: zoomable profile or wash optics
See variants

PHOTO GALLERY

EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite
EclDisplay CASWhite

Technical specifications

LIGHT SOURCE
  • Source: 25W White LED
  • CCT: see available versions
  • Luminous flux: 2700K: (profile - 20°-40°) 1'586 lm @40° - (wash 25°-50°) 1'638 lm @50° - (wash 15°-30°) 1'527 lm @30° @full 3000K: (profile - 20°-40°) 1'676 lm @40° - (wash 25°-50°) 1'849 lm @50° - (wash 15°-30°) 1'730 lm @30° @full @full
  • Luminous flux: 4000K: (profile - 20°-40°) 1'810 lm @40° - (wash 25°-50°) 1'845 lm @50° - (wash 15°-30°) 1'724 lm @30° @full 5600K: (profile - 20°-40°) 1'869 lm @40° - (wash 25°-50°) 1'884 lm @50° - (wash 15°-30°) 1'764 lm @30° @full
  • Lux: 2700K: (profile - 20°-40°) 825 lx @20°; 221 lx @40° - (wash 25°-50°) 271 lx @25°; 96 lx @50° @5 m full 3000K: (profile - 20°-40°) 887 lx @20°; 241 lx @40° - (wash 25°-50°) 310 lx @25°; 108 lx @50°lx @5 m full
  • Lux: 4000K: (profile - 20°-40°) 923 lx @20°; 245 lx @40° - (wash 25°-50°) 295 lx @25°; 107 lx @50° @5 m full 5600K: (profile - 20°-40°) 964 lx @20°; 256 lx @40° - (wash 25°-50°) 307 lx @25°; 108 lx @50°lx @5 m full
  • CRI: 91 @2.700 K; 90 @3.000 K; 93 @4.000 K; 91 @5.600 K
  • TLCI: 83 @2.700 K; 82 @3.000 K; 92 @4.000 K; 94 @5.600 K
  • TM30 Rf: > 88 @2.700 K; > 87 @3.000 K; > 89 @4.000 K and 5.600 K
  • TM30 Rg: < 104 @2.700 K and 3.000 K; > 100 @4.000 K and 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: see available versions
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: included 1 meter power cable - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: CASAMBI control on-board
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 30W
  • Power factor: > 0,96
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: bluetooth
  • Power connection: bare-end cable
  • Dimensions (WxHxD): 141x200x115.5mm / 5.55''x7.87''x4.55''
  • Weight: 1,4kg / 3.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM

Versions

Code
CCT
Finishing
Track adapter
Optics
ECLDISPLAYCAS27KB
ECLDISPLAYCAS27KB (NEW)
2700K
Black
Not Included
Not Included
ECLDISPLAYCAS30KB
ECLDISPLAYCAS30KB (NEW)
3000K
Black
Not Included
Not Included
ECLDISPLAYCAS40KB
ECLDISPLAYCAS40KB (NEW)
4000K
Black
Not Included
Not Included
ECLDISPLAYCAS56KB
ECLDISPLAYCAS56KB (NEW)
5600K
Black
Not Included
Not Included
ECLDISPLAYCAS27KW
ECLDISPLAYCAS27KW (NEW)
2700K
White
Not Included
Not Included
ECLDISPLAYCAS30KW
ECLDISPLAYCAS30KW (NEW)
3000K
White
Not Included
Not Included
ECLDISPLAYCAS40KW
ECLDISPLAYCAS40KW (NEW)
4000K
White
Not Included
Not Included
ECLDISPLAYCAS56KW
ECLDISPLAYCAS56KW (NEW)
5600K
White
Not Included
Not Included
