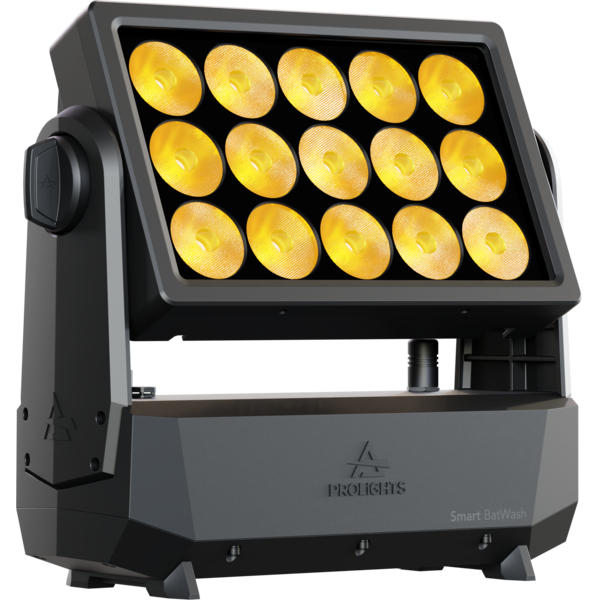

Smart BatWash

ORDER CODE: SMARTBATWASH

15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power

The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired.
This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it's Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output.
The Smart BatWash is very flexible - it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels.
The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

SPEKTRA

Main features:

  • High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle
See variants

PHOTO GALLERY

Smart BatWash
Smart BatWash
Smart BatWash
Smart BatWash
Smart BatWash
Smart BatWash
Smart BatWash

Technical specifications

LIGHT SOURCE
  • Source: 15x20W RGB + Warm White LED
  • Luminous flux: 6'300 lm @full
  • Lux: 4'451lx @5 m full
  • CRI: > 95 @3200K ; > 93 @5600K
  • R9: > 98 @3200K ; > 93 @5600K
  • TLCI: > 84 @5600K
  • TM30 Rf: 94.2 @3200K ; > 92 @5600K
  • TM30 Rg: 104.4 @3200K ; > 105 @5600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
COLOUR SYSTEM
  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'800K - 10'000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Output (at 230V): 11 units on a single power line
  • Output (at 120V): 5 units on a single power line
  • Power factor: >0,94
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: Directly from the mains power or magnetic fast-charge in case
  • Re-charge time: 5h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
  • Dimensions (WxHxD): 381x344x143mm / 15''x13.54''x5.63''
  • Weight: 9,8kg / 21.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

FCLSMARTBATWASH
FCLSMARTBATWASH
(optional)
Flight case for 4 SMARTBATPLUSWASH, internal AC battery charging
SBWFILTER25
SBWFILTER25
(included)
25° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER40
SBWFILTER40
(optional)
40° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER1060
SBWFILTER1060
(optional)
10x60° asymmetric light diffusion filter for SMARTBATWASH
SBWBD
SBWBD
(optional)
Black&White& White barn door 4 directional flaps to adjust the light beam, comp. SMARTBATWASH
OS25D13
OS25D13
(included)
Quick-Lock omega bracket, M12 hole
SBWPOWER
SBWPOWER
(optional)
Single charger for SMARTBATWASH
<b>IR</b> Controller
IR Controller
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbatwash_A4_DATASHEET_(EN).pdf690KB
Letter datasheetSmartbatwash_LETTER_DATASHEET_(EN).pdf704KB
Tender SpecificationSmartbatwash_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartbatwash_DMX_CHARTS.pdf116KB
SMARTBATWASH Firmware rev. 1.1.02.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupSMARTBATWASH_3D_SKETCHUP.zip3MB
2DSMARTBATWASH_2D.zip49MB
3DSMARTBATWASH_3D.zip2MB
2D cad symbolsSmartbatwash_CAD_2DSYMBOLS.dwg49KB
Technical drawingSMARTBATWASH_TECHNICAL DRAWINGS.zip3MB
VectorWorksVECTORWORKS_SYMBOLS.vwx692KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 21/11/2024 New Functions:
  • Added two new shortcuts:
    • "Enter" button for 3 seconds in Home Screen = quick access to Stand Alone menu
    • "Down" button for 3 seconds in Home Screen = quick access to Factory Reload
Improvement:
  • Improved IR Remote management. Now, to use the device via IR Controller in the absence of DMX signal:
    1. Set DMX Fault@Stand Alone (default value).
    2. Press "power" button on IR Controller.
    3. Press "Static" or "Manual" button on IR Controller to set the desired color.
Note:
The color set via IR Controller will be transmitted to other devices:
  • via Wireless if the device works as TX and Stand Alone@Master DMX
  • via DMX if Stand Alone@Master DMX
  • if the other receiving devices are in Stand Alone@Slave.
